ToolkitRC
2019
Drone charging
Press [up] or [down] on the [Output] main
interface to move the cursor to the [PWR] item.
press [OK] to enter. then move the cursor to the
typical value and change the output mode to the
model of the drone that needs to be charged. Move
the cursor to [Start] and press the enter key. The

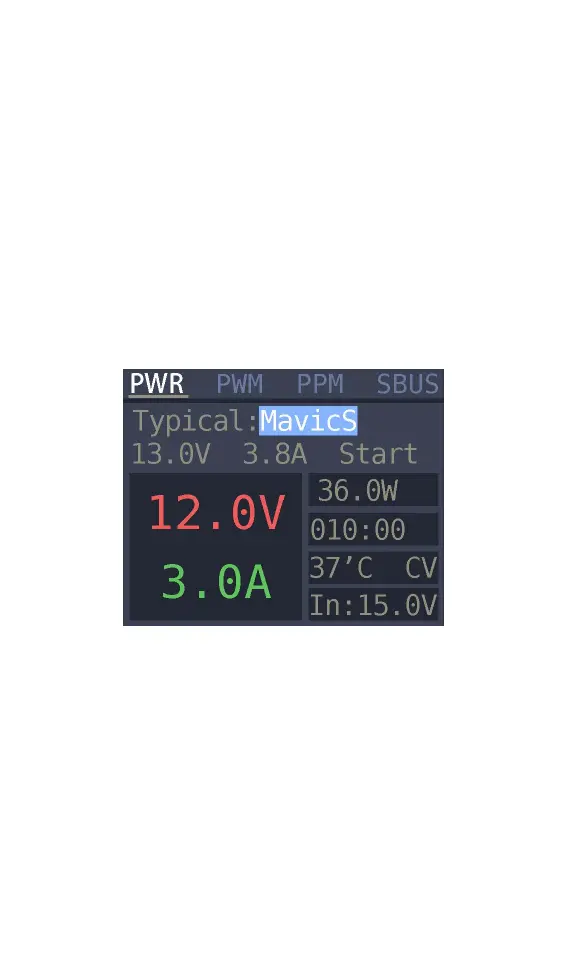

charger will output the set voltage. The display
interface is as shown below
Typical: For common drone models. it can be set to
the following four types of drones. Mavic2. Mavic.
Phantom. Inspire.
17.6V: The voltage value when the current battery is
full cannot be changed.
3.8AV: Maximum current for charging. adjustable
current.
Start: Start output. stop output button
