ToolKitRC M6D - Page 28

@ ToolkitRC 2020
28
25.20V：S
econd channel main port voltage.
10.00A：
Second channel main port current.
060:59：Second channel working time.
1888mAh：Cumulative capacity of the second channel.
1 4.202V：
1st battery voltage
.......
4 4.200V：4th battery voltage(this cell is in balance
management)
-.--V ：
No battery connected

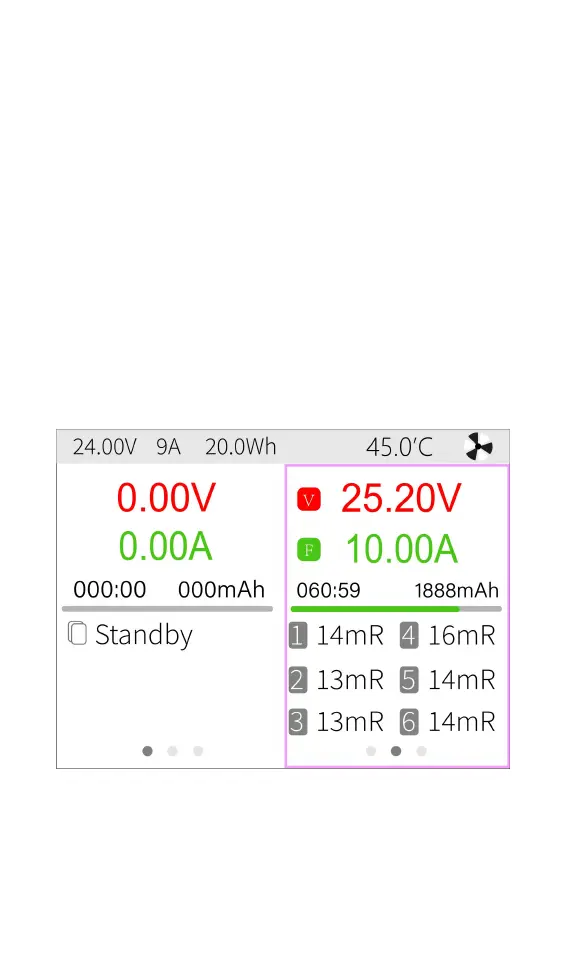

Scroll [Scroll Wheel] to switch to the second column
of the second channel, which is the internal resistance
information. As shown below.
1 14mΩ：Internal resistance of the first battery
......
Scroll [Scroll Wheel] to switch to the third column of
the second channel, which is the information bar. As
