Topcnc TC5510 User Manual

Man HSpd(Manual high speed)
Jog Op(Jog operation)
BkTProg0(Back to program zero)
BkTMech0(Back to mechanical zero)
At this time, the default is Man LSpd(Manual low speed). The speed parameter
is set in the Spd Pars(Speed parameters) area of the Pars Set(Parameters settings)
area, and is the fixed mode(the rate key is valid ).
Through the keys
（
‘←’‘→’‘↑’‘↓’‘ - ’‘ . ’
）
on the controller panel or the direction
keys of external IO settings, the forward or reverse rotation of the motor can be
controlled.
3.2.1
3.2.1
3.2.1
3.2.1 Man
Man
Man
Man HSpd(Manual
HSpd(Manual
HSpd(Manual
HSpd(Manual high
high
high
high speed)
speed)
speed)
speed)

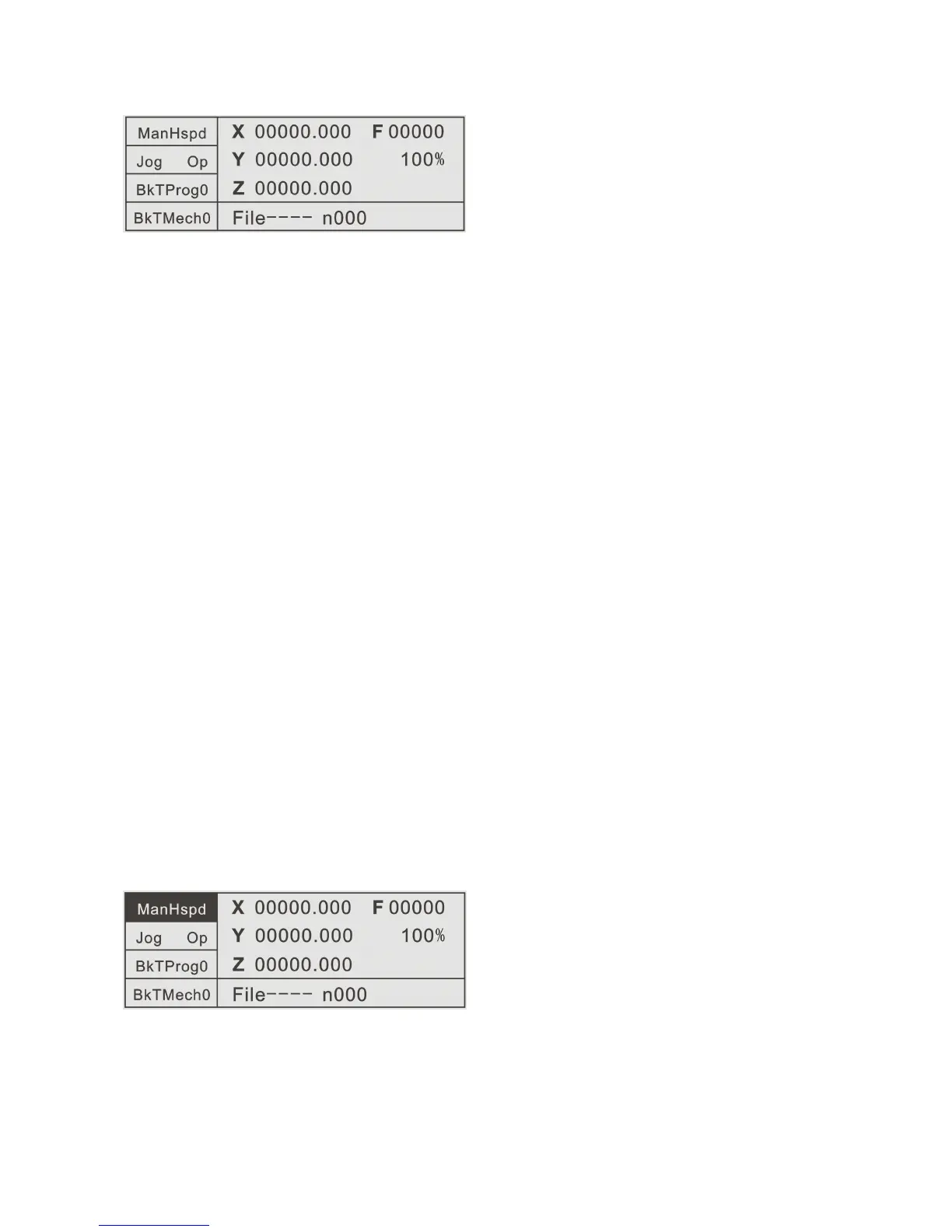

In the Man Op(Manual operation) interface, press the left F1 key to enter the
Man HSpd(Manual high speed) interface. At this time, the Man HSpd(Manual high
speed) key color is negative display, and the system is in the Manual high speed state.
The speed parameter is set in the Spd Pars(Speed parameters) area of the Pars
Set(Parameters settings) area, and is the fixed mode(the rate key is valid ).
Through the keys
（
‘←’‘→’‘↑’‘↓’‘ - ’‘ . ’
）
on the controller panel or the keys of external
IO settings, the forward or reverse rotation of the motor can be controlled.
