Topcnc TC5510 User Manual

the modified data.
ToSavePars Press save to save the parameters
PlsPrsCfm Press the Confirm key to save the parameters
Save Pars OK Save the parameters successfully
3.4.1.2
3.4.1.2
3.4.1.2
3.4.1.2 Spd
Spd
Spd
Spd Pars(Speed
Pars(Speed
Pars(Speed
Pars(Speed parameters)
parameters)
parameters)
parameters)

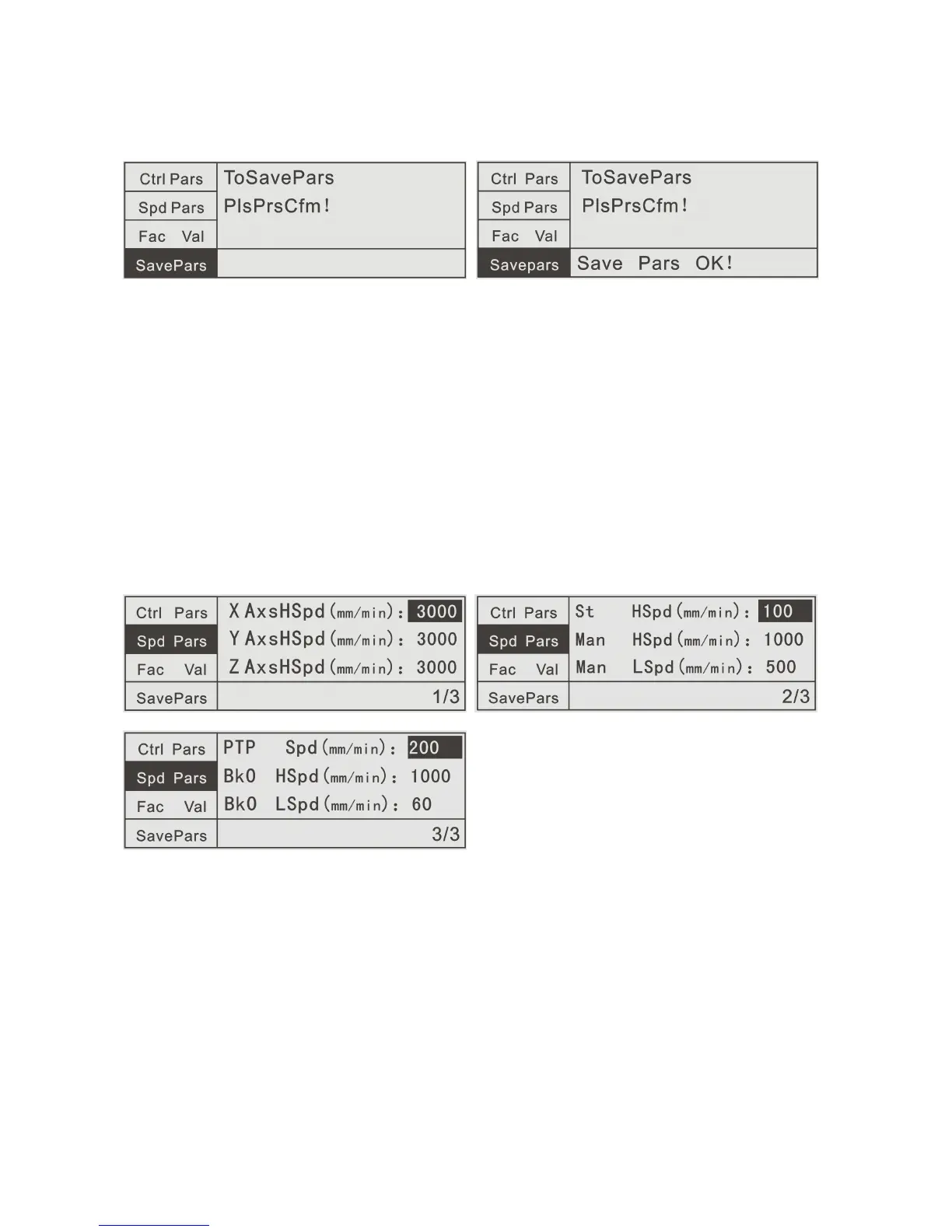

In the Sys Pars(System parameters) interface, press the left F2 key to enter the
Spd Pars(Speed parameters) interface. In this interface, we can edit or modify
the axis maximum speeds, start speed, manual high speed, manual low speed, point to
point speed, back to zero high speed, back to zero low speed.
X-axis high speed XAxsHSpd
Start high speed St HSpd
Manual high speed Man HSpd
Manual low speed Man LSpd
Point to Point speed PTP Spd
Back to zero high speed Bk0 HSpd
Back to zero low speed Bk0 LSpd
Through the ‘↑’‘↓’‘ PgUp ’‘ PgDn ’ keys on the controller panel, move the cursor to
find the parameter need to be modified
，
and edit or modify the parameter. Through
