3-1-5 Removal of spherical unit

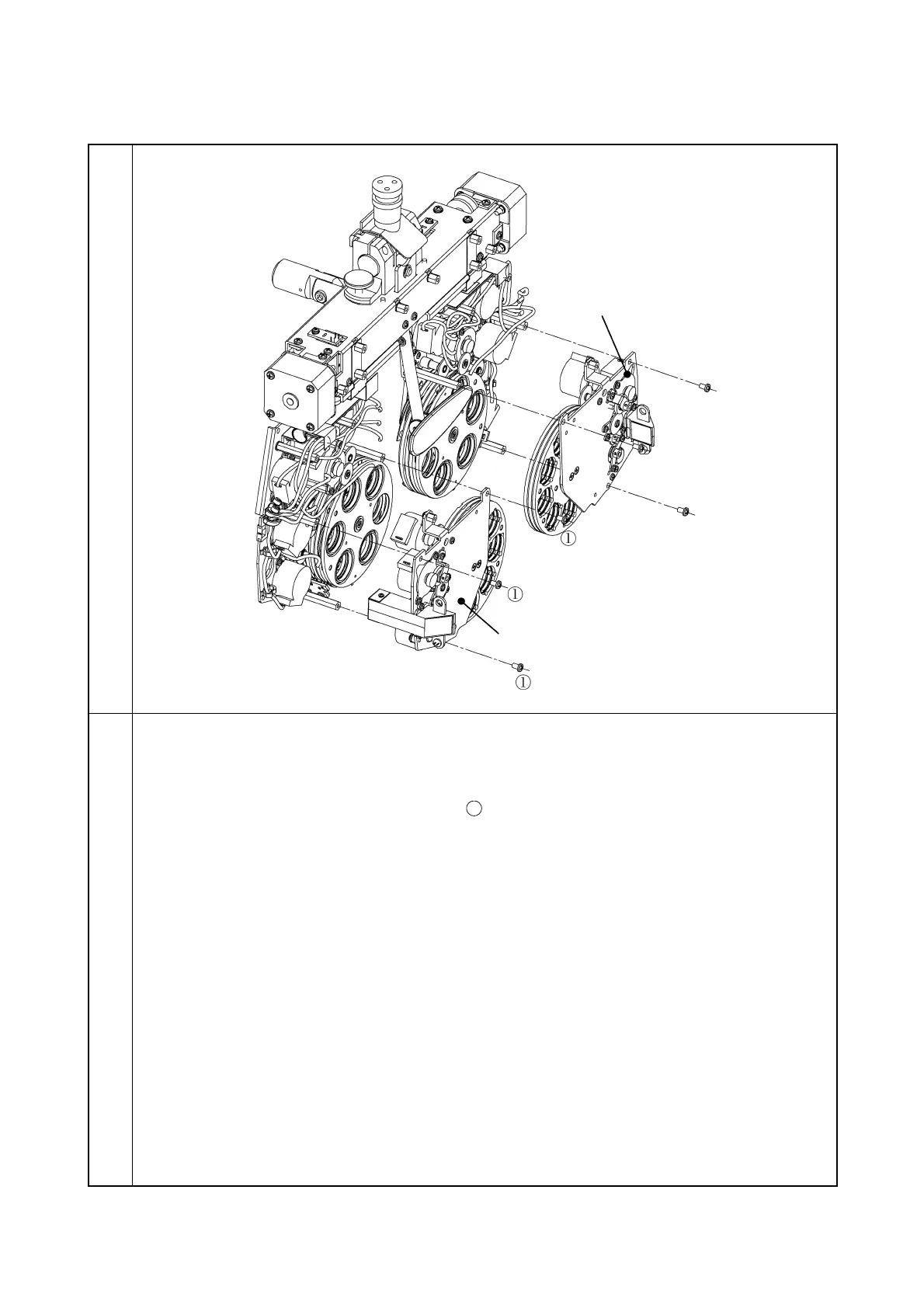

Illustration
Procedure
1. Remove the binding band of the spherical unit. (Zero detection sensor and cornea unit)
2. Remove the wires, which are bound by the harness clip and coating clip.
3. Remove the three screws CR3 × 5S3BZn
.
4. Remove the spherical unit L.
5. Remove the spherical unit R in the same way as the spherical unit L.
