− 13 −

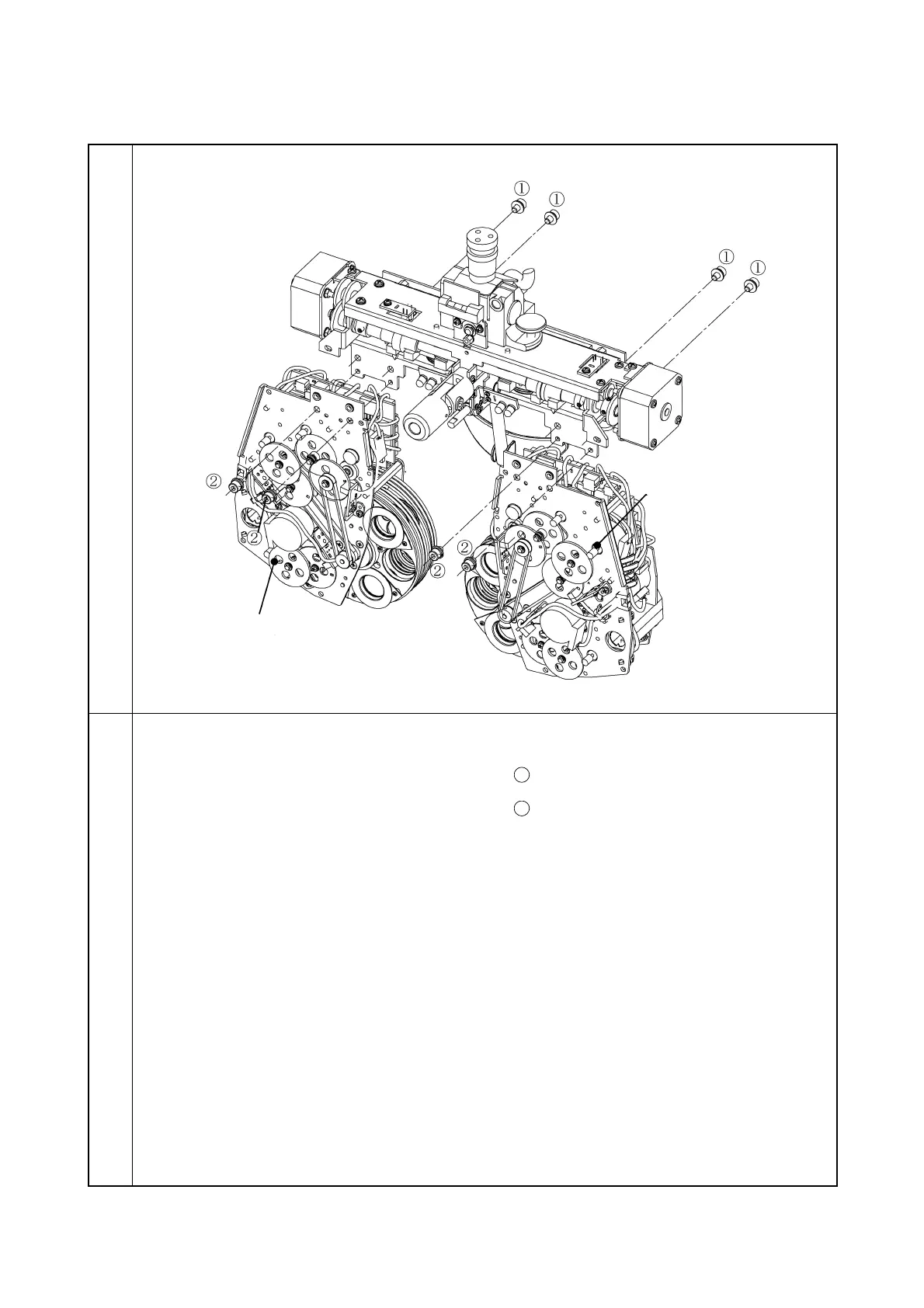

3-1-6 Removal of lens unit
Illustration
Procedure
1. Remove the tape wires at the lens side.
2. Remove the four screws W sems 6S4 × 6S3BZn
1
.
3. Remove the four screws W sems 6S4 × 6S3BZn
2
and then remove the lens units L and R.
Lens unit L
Lens unit R
R-CV5000-0-0704-01
