Topcon GPT-7003i User Manual

13
1 NOMENCLATURE AND FUNCTIONS

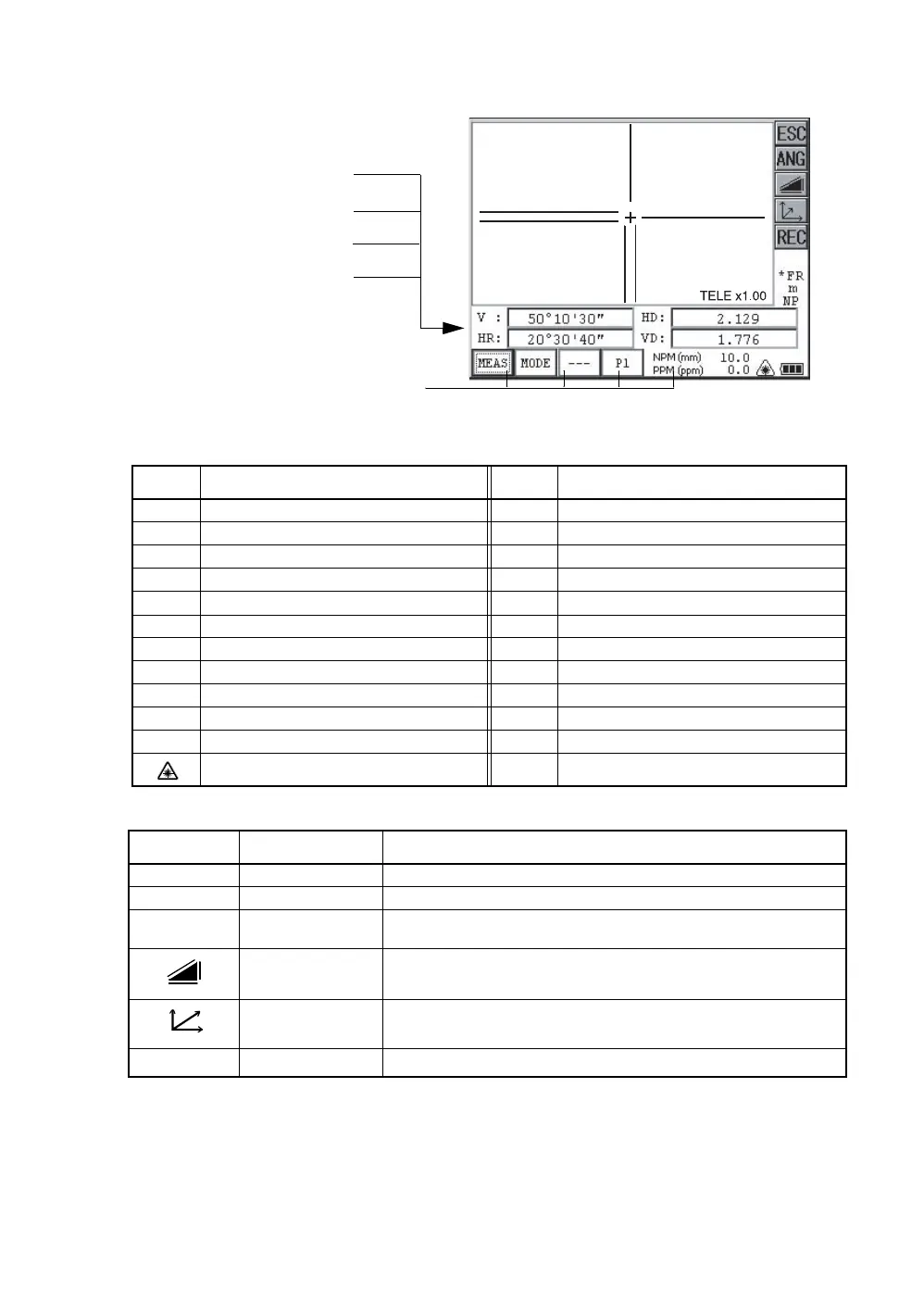

1.2.2 Measurement Menu
1.2.3 Display Marks
1.2.4 Display keys
Display Contents Display Contents
V V-angle m Meter unit
V% Percent grade ft Feet unit
HR H-angle right F Fine mode
HL H-angle left C Coarse mode
HD Horizontal distance T Tracking mode
VD Relative elevation R Repeat measurement
SD Slope distance S Single measurement
N N coordinate N N-times measurement
E E coordinate PPM Atmospheric correction value
Z Z coordinate PSM Prism constant value
✻ EDM working NPM Non-Prism constant value
Laser emitting mark NP Non-prism mode
Keys Name of Key Function
--- Soft key Functions are according to the displayed message.
ESC Escape key Returning to the previous mode or display.
ANG
Angle
measuring key
To be angle measuring mode.
Distance
measuring key
To be distance measuring mode.
Coordinate
measuring key
To be coordinate measuring mode.
REC REC key Result of measurement is transferred.
Example:Distance Mode
V-angle: 50°10’30”
H-angle: 20°30’40”
Horizontal distance: 2.129m
Relative elevation :1.776m
Soft keys
