2 PREPARATION FOR MEASUREMENT

2.1 Power Connection

(unnecessary if on-board battery BT-61Q is used)

See below for connecting the external battery pack.

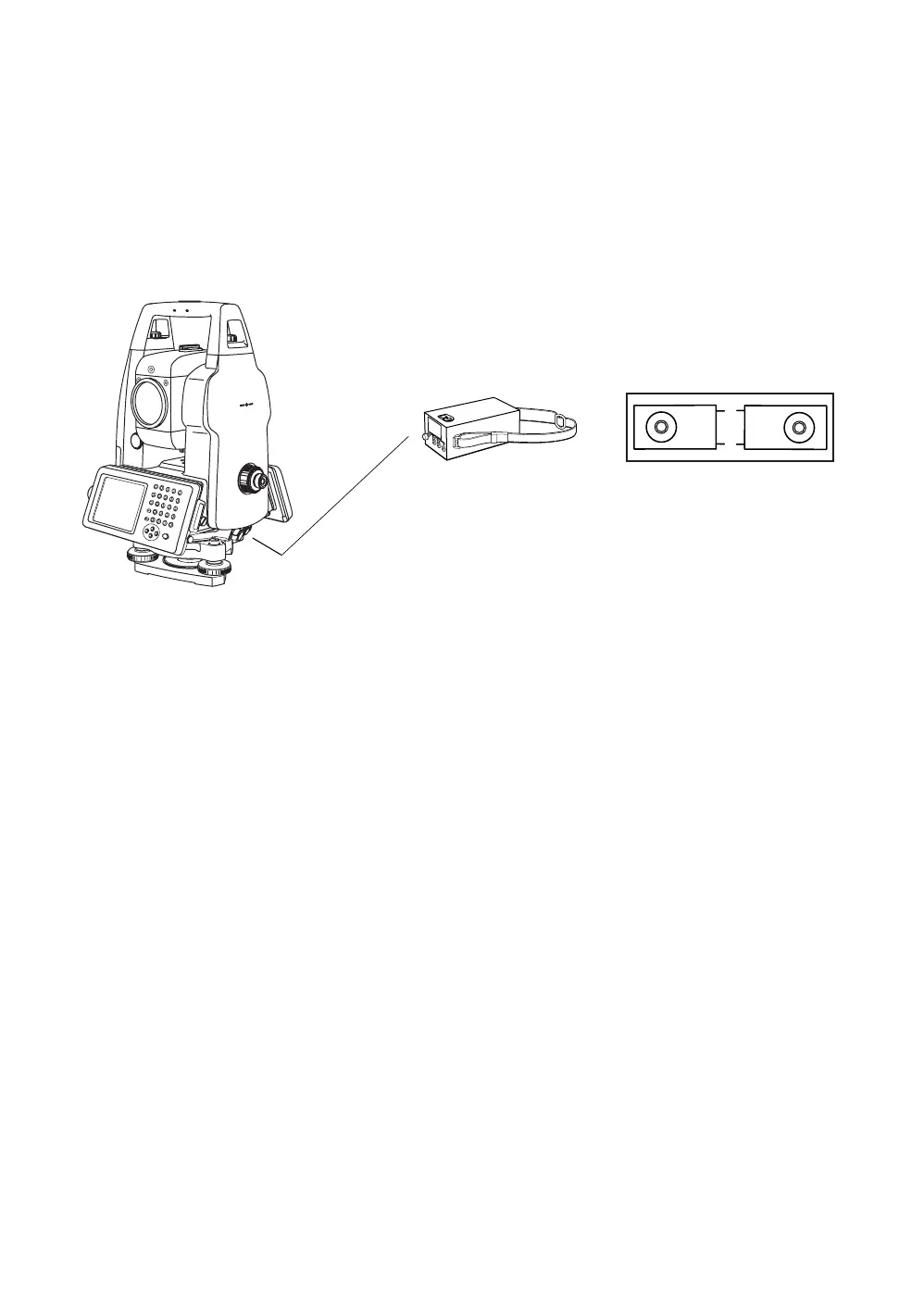

● Large capacity battery pack BT-3L

Power cord PC-6 is used.

PC-6

BT-3L
