Topcon GPT-7003i

To Next Page

To Previous Page

1 NOMENCLATURE AND FUNCTIONS

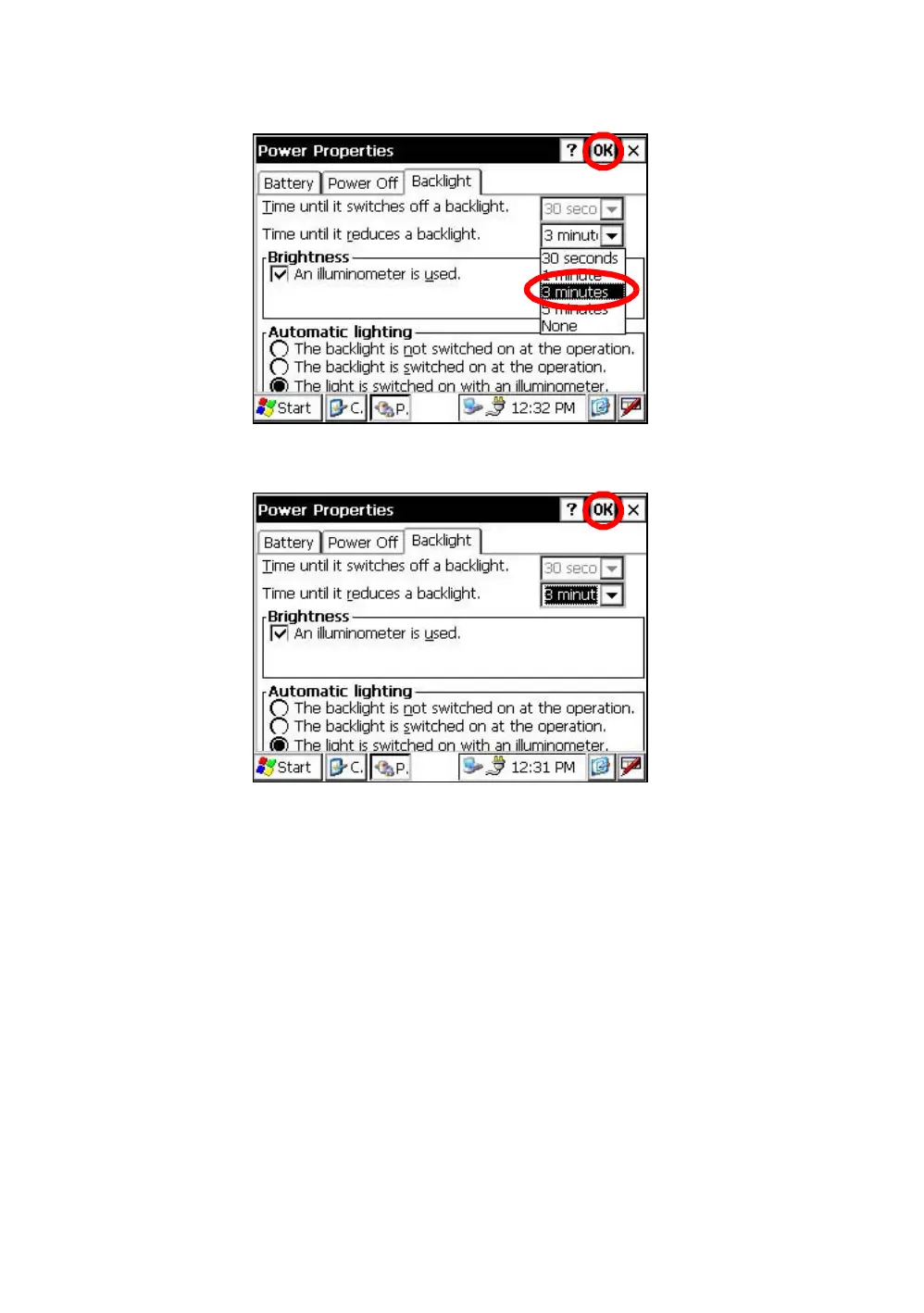

3 Press the time-menu down arrow to select the reducing time.

Factory setting is ‘3 minutes' as default.

4 Press the [OK] key on title bar. After that "Power Properties" screen will close automatically.
