19-1
19 SPECIAL ACCESSORIES
19 SPECIAL ACCESSORIES

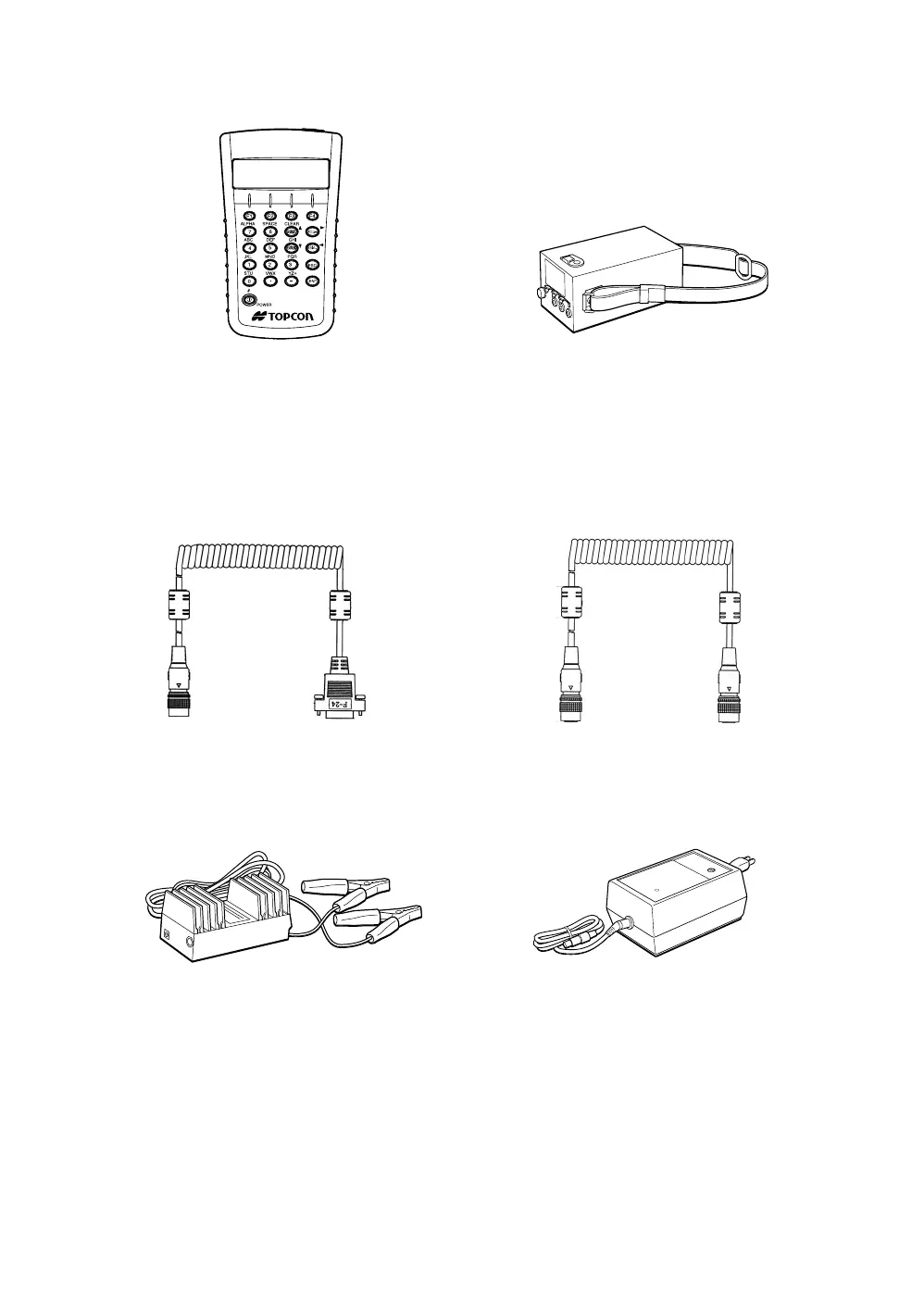

Data entry keyboard DK-7W
● Occupied point, coordinate data and other data can
be input from DK-7W. It is also possible to control
GTS-230W series from DK-7W.
Large capacity battery pack BT-3L
● Output voltage : DC 8.4V
● Capacity: 6AH
● External dimensions:
190(L) × 106(W) × 74(H) mm
● Weight:2.8kg
Interface cable F-24
● Cable for communicating an external instrument
and GTS-230W by the serial signal connector.
Interface cable P-14
● Cable for communicating DK-7W and GTS-
230W by the serial signal connector.
Auto converter AC-5
● Input voltage:12V DC
● Output voltage :DC 8.4V
● Cable length:3m approx.
● External dimensions:
100(L)×53(W)×47(H) mm
● Weight:0.3kg
Battery charger BC-6 (for BT-3L)
● Input voltage:100, 120, 220, 240V
AC: ±10% 50/60 Hz
● Power consumption: 15VA approx.
● Charging time:
approx. 15 hour (+20°C) to charge BT-3L
● Operation temperature range:
+10°C to +40°C (+50 to +104°F)
● External dimensions:
142(L) × 96(W) × 64(H) mm
● Weight:1.0kg
