Topcon mmGPS 3D Paver User Manual

Specifications
mmGPS 3D Paver Reference Manual
B-8
GPS Vibration Pole
The GPS Vibration Pole features a steel pole with a larger diameter to
improve stiffness. Increased temperature range is provided by the use
of high or low temperature bushings. Table B-6 lists specification
details for the GPS Vibration Pole.

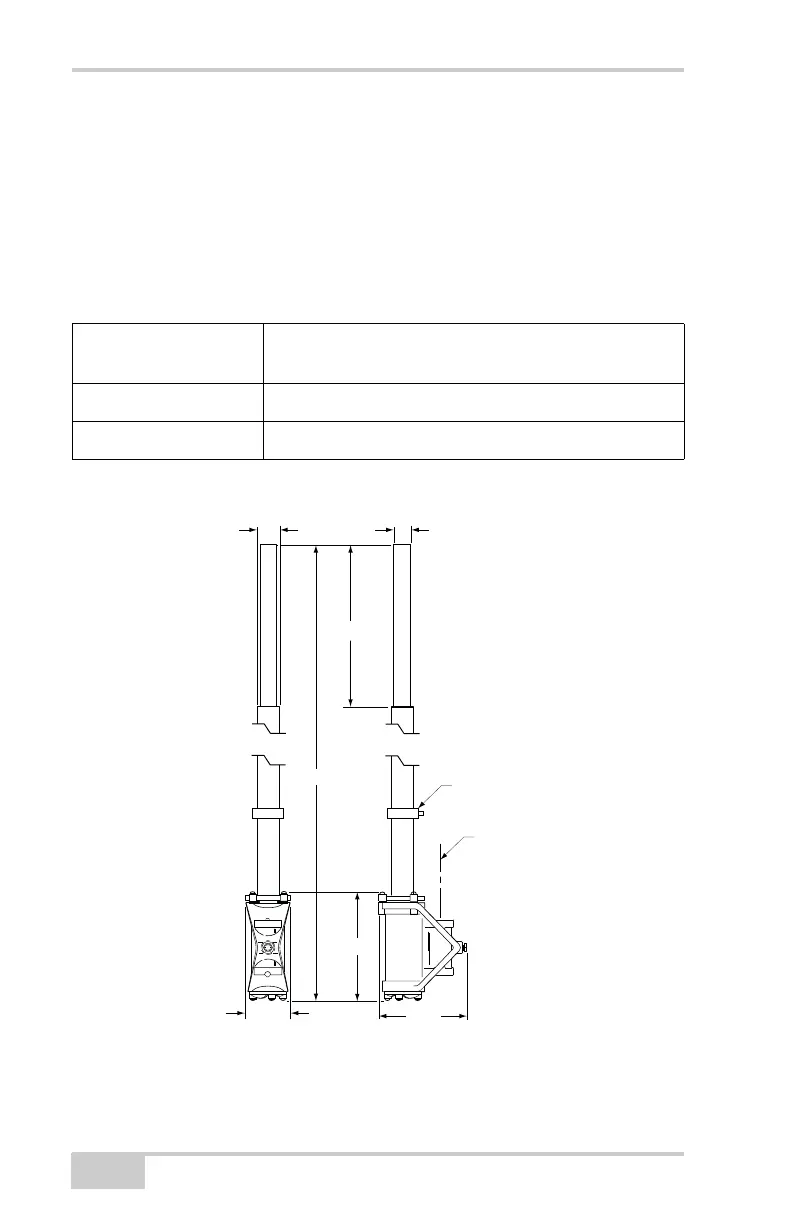

Figure B-6 shows the dimensions of the GPS Vibration Pole:
Figure B-6. GPS Vibration Pole Dimensions
Table B-6. GPS Vibration Pole Specifications
Housing Base: Cast aluminum; Pole: OD 1.75 in extruded
aluminum
Range 6 ft 7-1/2 in (201.9cm)
Weight 29.0 lbs (13.0 kg)
92"
30"
Ø2.0"
Ø4.5"
12.5"
11.5"
Ø1.75" ± .015
CABLE MOUNT
MOUNTING POST
2.00 NOM
