MAINTENANCE
ORDERING SUPPLIES
To order the following replacement parts, be sure to specify the product name, part number
and quantity required.

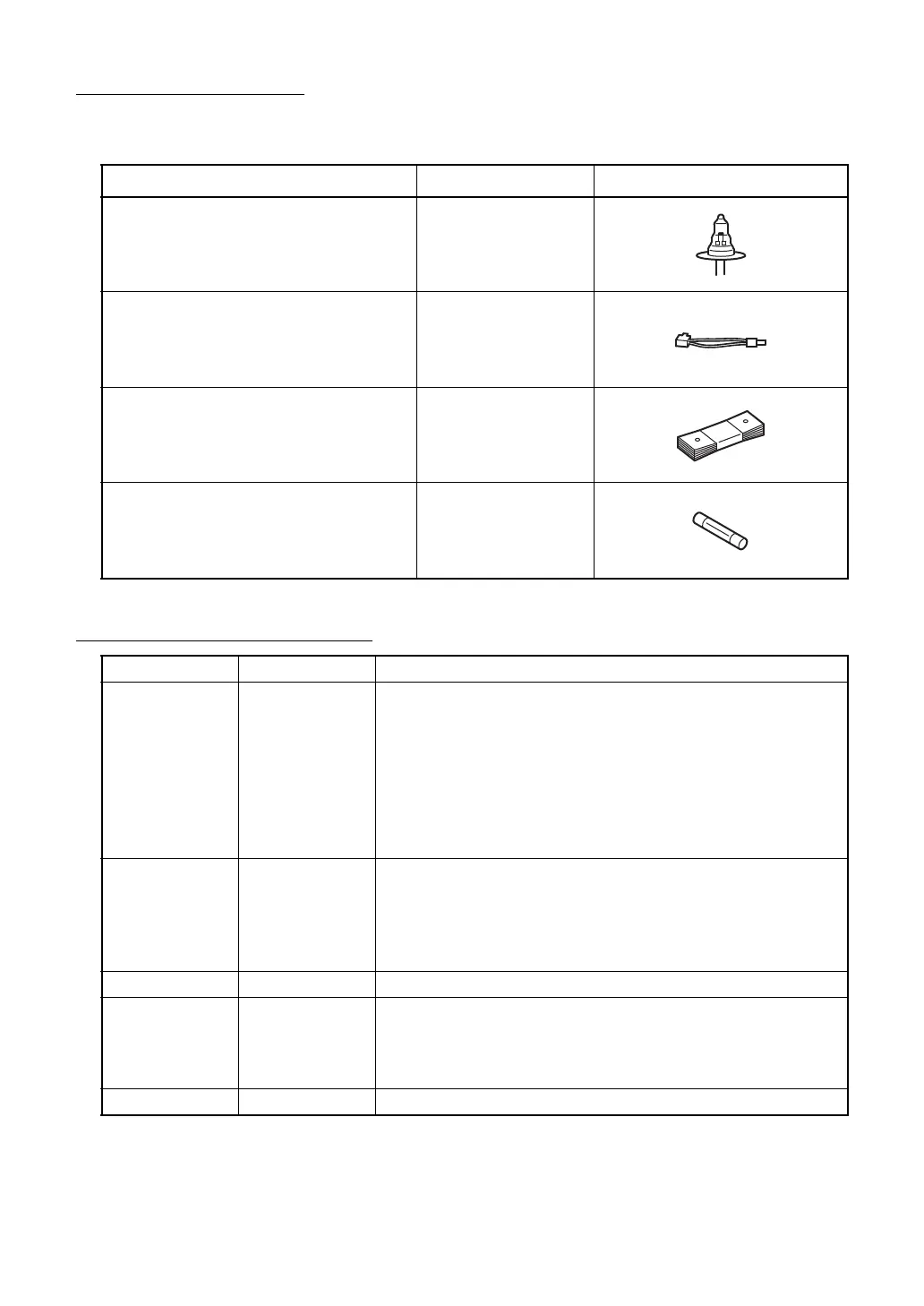

USER MAINTENANCE ITEMS
Product name Part number Appearance
Illumination lamp 40340 20700
Socket 44615 20100
Chinrest paper 40310 40820
Fuse
F1, F2: T1AL 250V (100, 120V)
T500mAL 250V (220, 240V)
F3: F4AL 125V
44635 60030
44635 60040
44620 67710
Item Inspection time Contentss
Inspection Before using • Adjusting the diopter and pupillary distance
• Focus of slit image
• The base unit must move smoothly.
• The components must be fitted in place correctly.
• The chinrest unit must be fitted to the table unit correctly.
• The cables and plugs must be connected correctly.
• The objective lens, eyepiece and mirror must not be
stained or damaged.
Cleaning When the part
is stained
• Objective lens
• Eyepiece
•Mirror
• Sliding plate, rail and wheel shaft unit
• Forehead rest and chinrest unit
Adjustment As required • Slit width control knob torque
Replacement As required • Illumination lamp
• Fixation target lamp
• Socket
•Fuse
Supply As required Chinrest tissue
To Next Page
