ASSEMBLY PROCEDURE

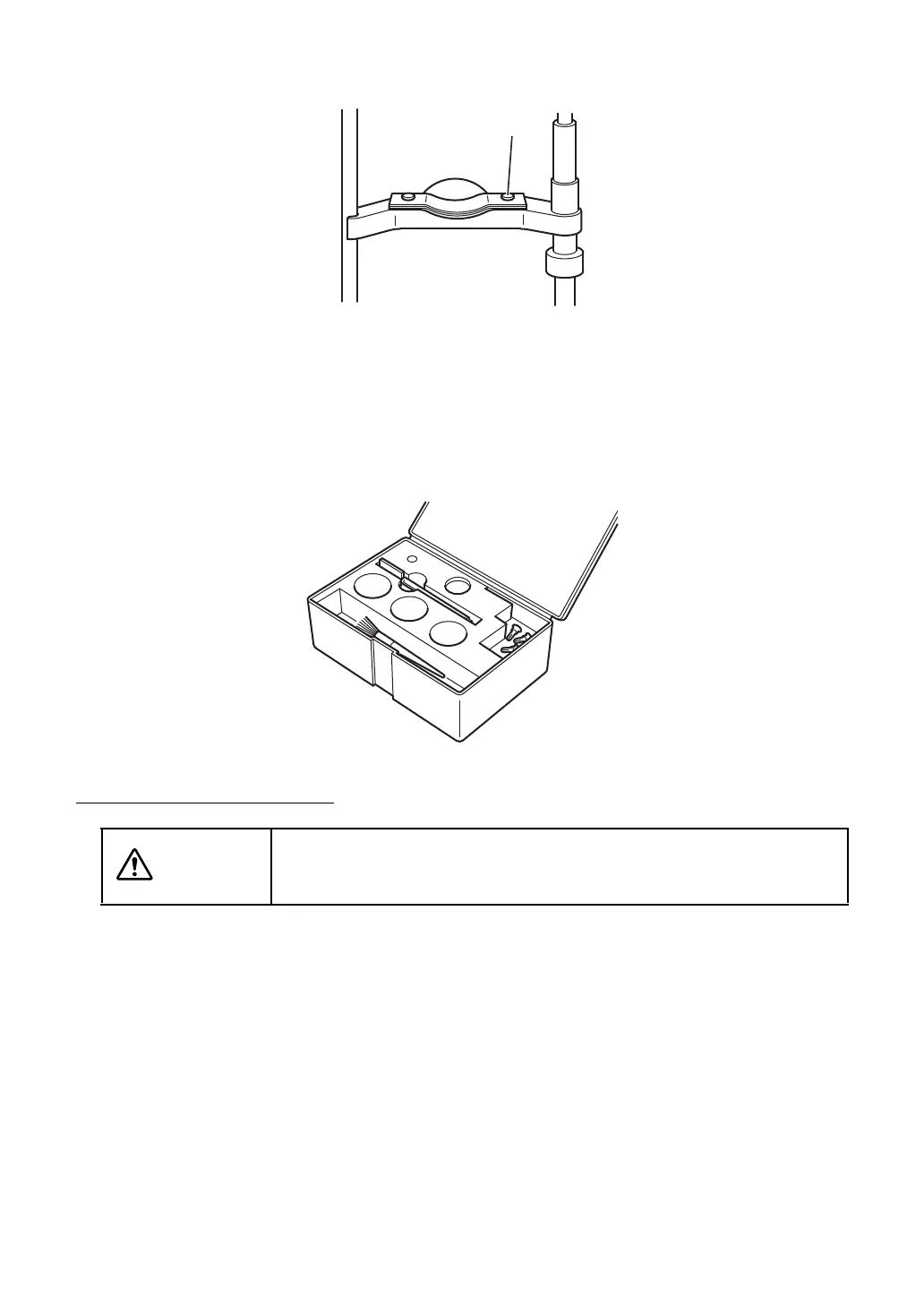

(6) Installing the Chinrest Paper
* Remove the two pins from the chinrest.
* Place the pins through the holes in the chinrest paper. Remove the wrapping from the chin-
rest paper.
* Align the pins with the holes in the chinrest and secure the paper to the assembly.
(7) Accessory Box
* An accessory box is supplied to store the accessories.
CHECKING PROCEDURE
(1) Power Plug
* Make sure that the instrument is always properly grounded.
(2) Illumination and Instrument Functions
* Turn the power supply on and observe that the illumination is passing through the opened slit
controls.
* Check to see that the slit width and length controls, filter lever and magnification changer
lever operate smoothly and properly.
(3) After the installation is completed, turn the power supply off and cover the instrument
with the dust cover.
WARNING
To avoid fire and electric shock in case of leakage, be sure to use a
grounded outlet. Do not connect to outlets that are not grounded.
