ASSEMBLY PROCEDURE

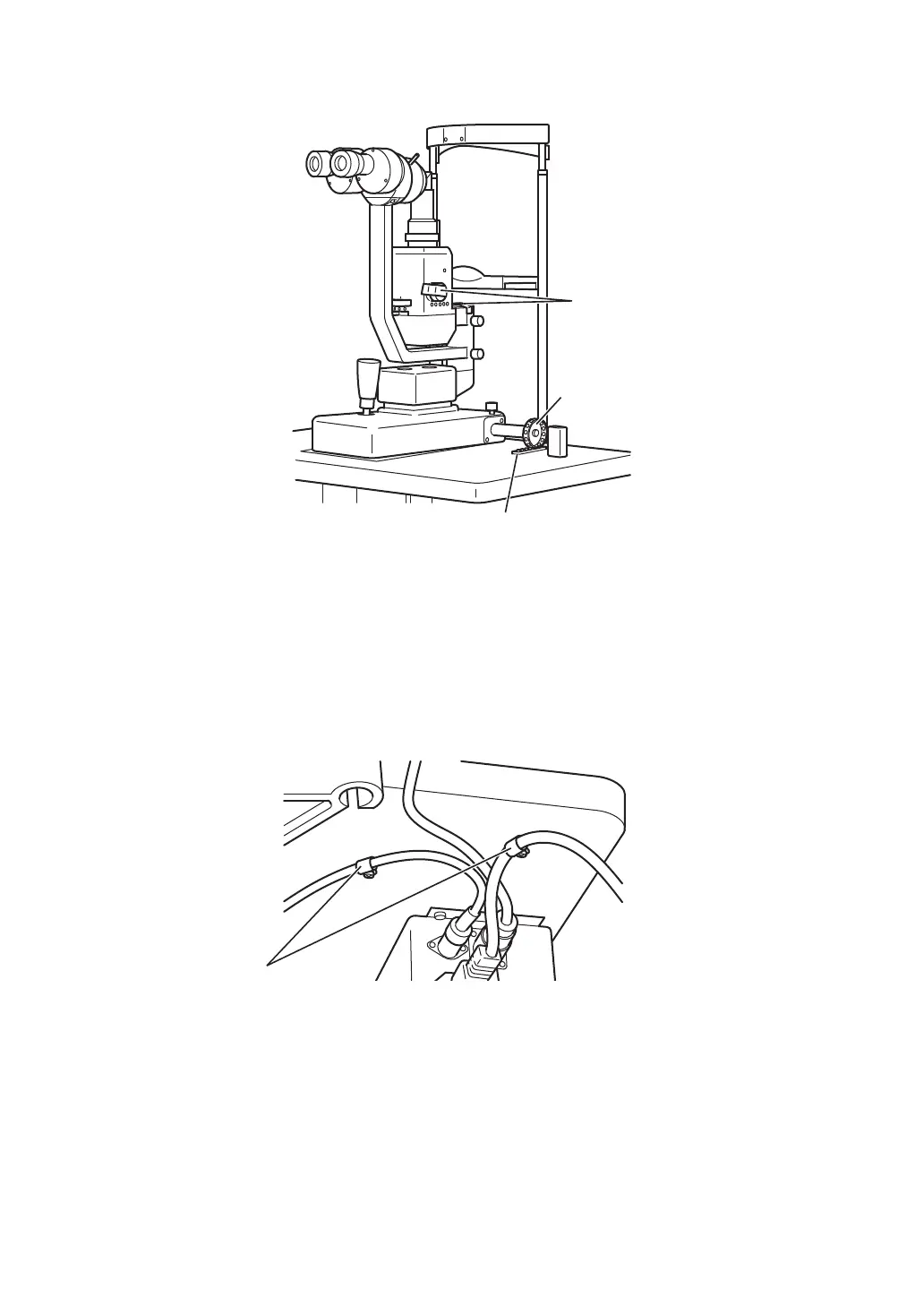

(4) Mounting the Main Unit
* Place the wheels of the base assembly evenly on the table rails.
* After checking to see that the main unit moves smoothly on the rails, insert the rail covers in
the space between the rail and table.
* Remove the protective tape from the illumination unit and the hole cap while being careful to
avoid touching the lens surface.
(5) Connecting Cables
* Connect the chinrest cable, main body cable and power cable to the power supply.
* Remove the cable clips from the bottom of the table top, slip them over the chinrest and
power cables and re-attach them to the table.
Ta pe
Wheel
Rail
Cable clip
