ASSEMBLY PROCEDURE

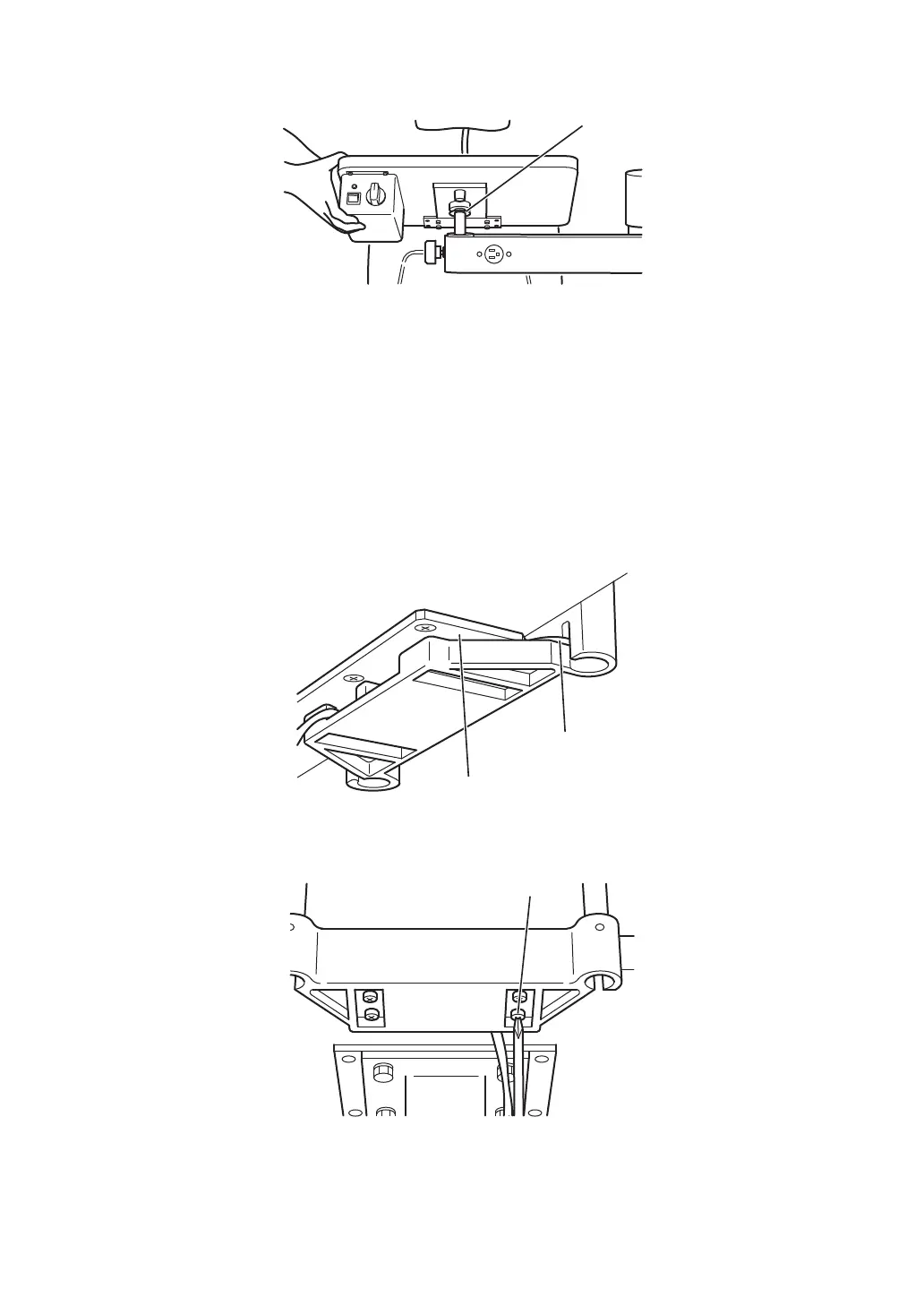

(b) To secure the unit model table to the ophthalmic unit.
* Peel off the tape which secures the plastic washer to the mounting bracket's shaft.
* Insert the shaft of the mounting bracket into the hole of the arm on the ophthalmic unit. The
plastic washer should be between the mounting bracket and the arm.
Note: The power supply is attached to the left side of the unit top (practitioner's view). If the
ophthalmic stand is located to the left of the ophthalmic chair, the power supply must
be relocated to the right side of the unit top to prevent interference with the arm. In this
instance, remove the four wood screws which attach the power supply to the unit top,
re-position the power supply in a similar position to the right side of the unit top, and re-
attach the power supply with the four screws.
(3) Mounting the Chinrest
* Remove the four screws which are attached to the chinrest mounting plate with the Phillips
screwdriver.
* Place the chinrest cord in the gap between the chinrest mounting plate and the chinrest
assembly. While making sure that the cord is not being pinched by the mounting plate, re-
tighten the previously removed screws.
Chinrest cord
Chinrest mounting plate
