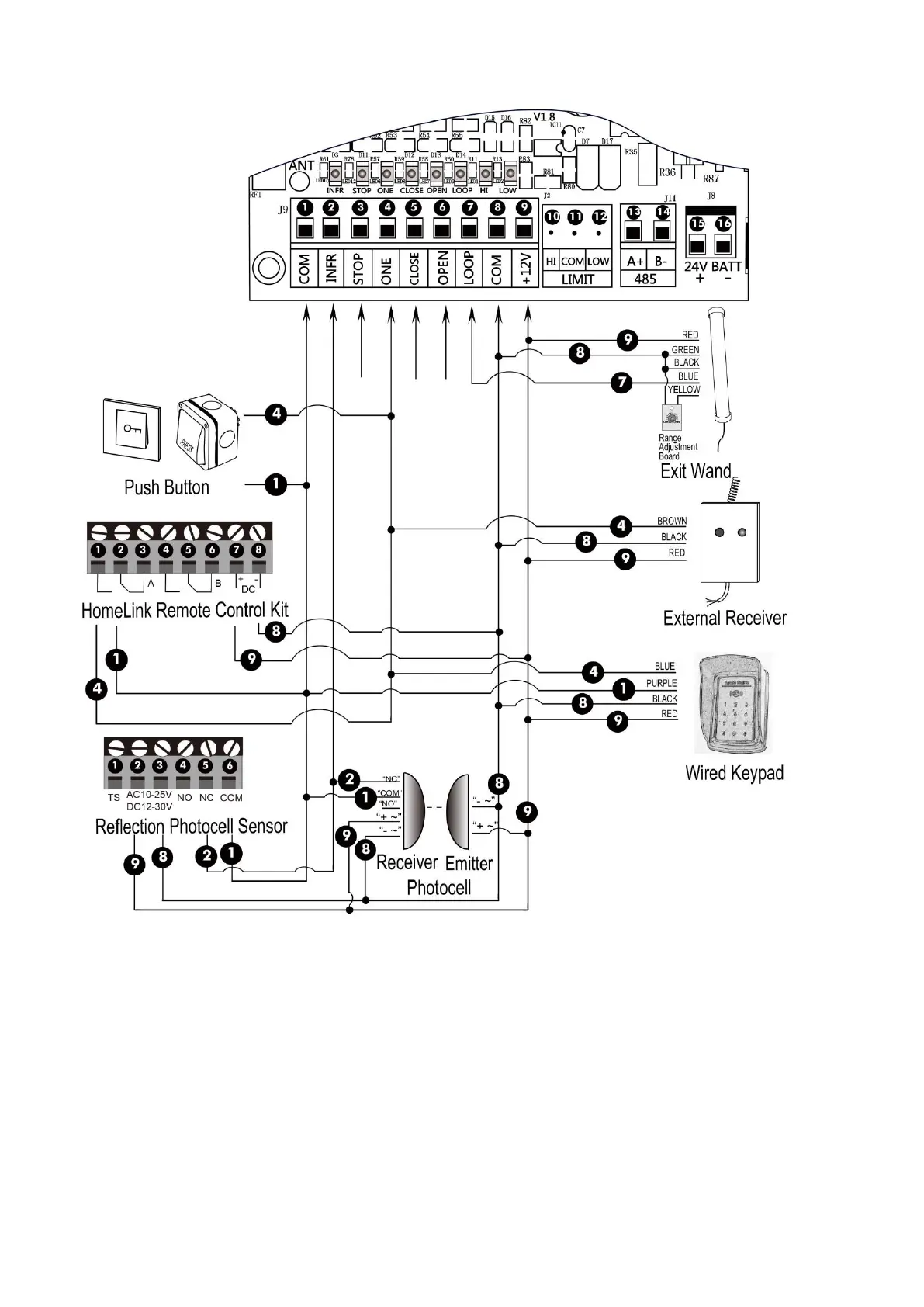

Topens DKC2000S - Motor, Limit Switch, and Transformer Wiring

14
1. Motor
The BLACK wire of the motor should be connected to the “MOTOR-” terminal (#25).
The RED wire of the motor should be connected to the “+ MOTOR” terminal (#24).
2. Limit Switches
The WHITE wire of the limit switches should be connected to the “HI” terminal (#10).
The BLACK wire of the limit switches should be connected to the “COM” terminal (#11).
The BLUE wire of the limit switches should be connected to the “LOW” terminal (#12).
3. Transformer
The input (RED wires) of the transformer should be connected to the “AC-OUTPUT N” terminal (#19) and
“AC-OUTPUT L” terminal (#20). No matter the polarity.
The output (BLACK wires) of the transformer should be connected to the “AC 24V” terminal (#17) and “AC
24V” terminal (#18). No matter the polarity.
