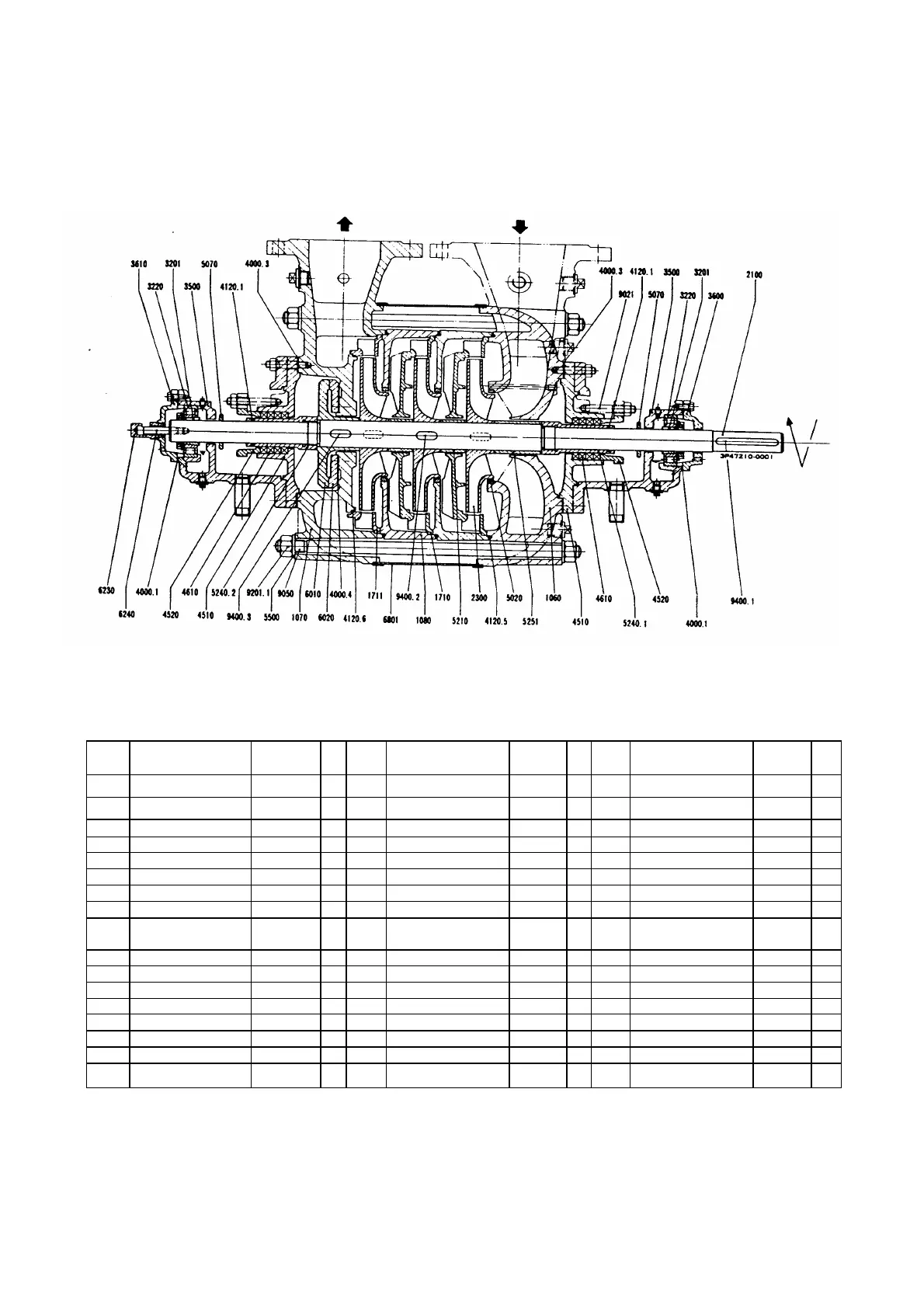

9. Sectional drawings and list of components
Size MML 40, 50, 65
Stuffing box housing : Type N
No Name Material Pcs No. Name Material Pcs No. Name Material Pcs
1060 Suction casing 1 4120.5 O-ring NBR 9021 Stud SUS420J, 4
1070 Discharge casing 1 4120.6 O-ring ASBEsTOS 1 9050 Tie bolt SCM 3 8
1080 Stage casing 4510 Stuffing box housing 2 9201.1 Hexagonal nut S45C 16
1710 Diffuser 4520 Stuffing box gland 2 9400.1 Key S 45C 1
1711 Diffuser Last Stage 1 4610 Stuffing box packing TOMB0 8 9400.2 Key S45C
2100 Shaft 1 5020 Casing waar ring 9400.3 Key S45C 1
2300 Impeller 5070 Deflector S35C 2
3201 Clamping sleeve SS400 2 5210 Stage sl««v«
3220 Cylindrical roller bearing
NU KC3
+ H
2
5240.1 Shaft protecting sleeve 1
3500 Bearing housing FC200 2 5240.2 Shaft protecting sleeve I
3600 Bearing cover FC200 1 5250.1 Spacer sleeve 1
3610 Bearing end cover FC200 1 5500 Washer SS400 16
4000.1 Flat gasket TOMBO 1630 2 6010 Balance disc 1
4000.3 Flat gasket TOMBO 1301 2 6020 Balance disc. seat 1
4000.4 Flat gasket TOMBO 1900 1 6230 Rotor position indicator BSBME 1 1
4000.1 O-ring NBR 2 6240 Pivot for indicator S30C 1
6801 Gladding SPCC 1
