REMOVE THE R8 SPINDLE

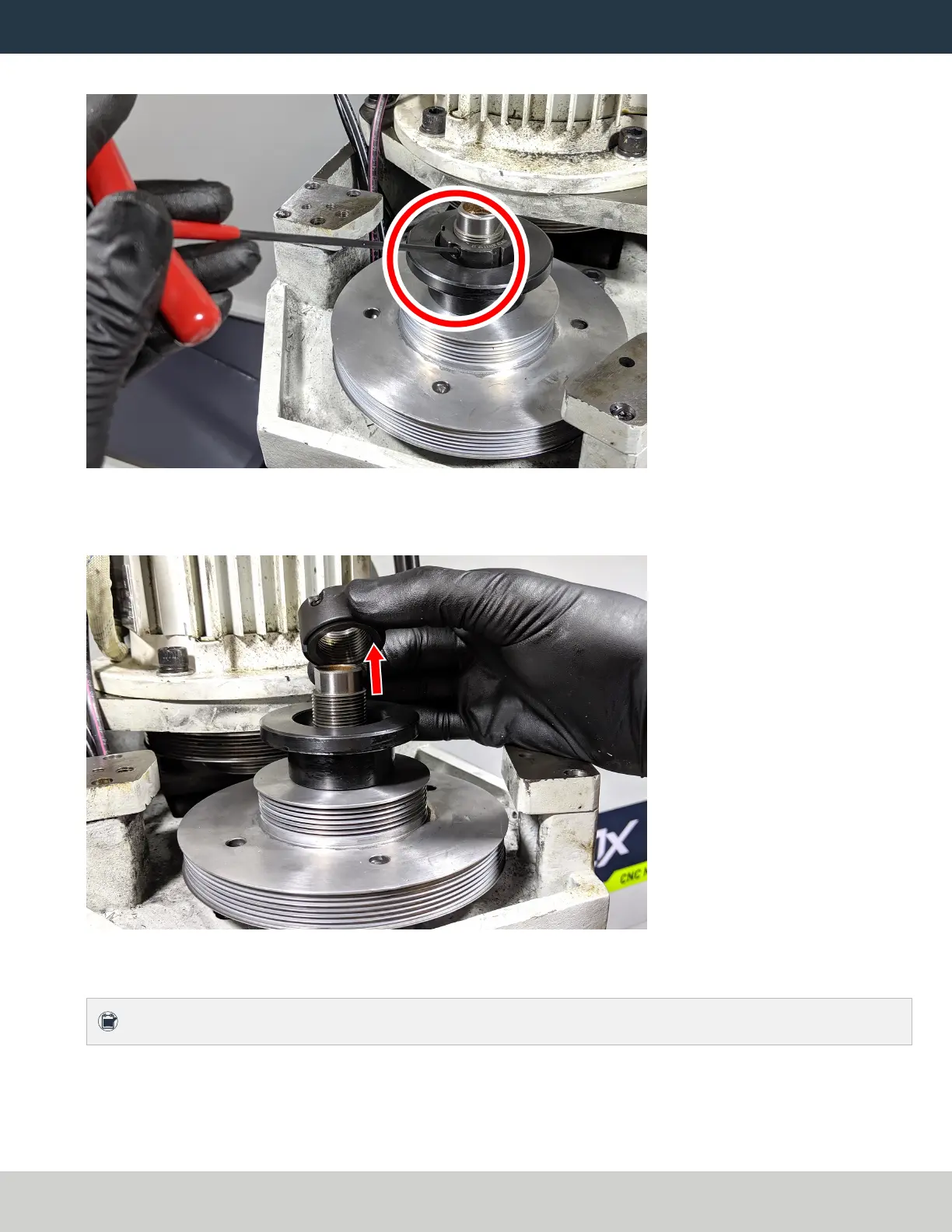

9. Loosen the three set screws on the pulley retention nut with a 3 mm hex wrench.
Figure 11: Loosening the retention nut's set screws.
10. Remove the pulley retention nut from the machine with the spanner wrench (provided). The pulley retention
nut secures the power drawbar flange, pulley, and pulley spacer, which are keyed to the spindle shaft.
Figure 12: Removing the retention nut.
11. Remove the power drawbar flange.
Note: You'll remove the spindle pulley later in this procedure.
Page 14
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10705: Installation Guide: BT30 Spindle Upgrade Kit for 1100M+ (0521A)
