INSTALL THE BT30 SPINDLE AND ALIGN THE ENCODER
3. Disassemble the BT30 spindle:
a. Use a 4 mm hex wrench to prevent rotation of the drawbar shaft.

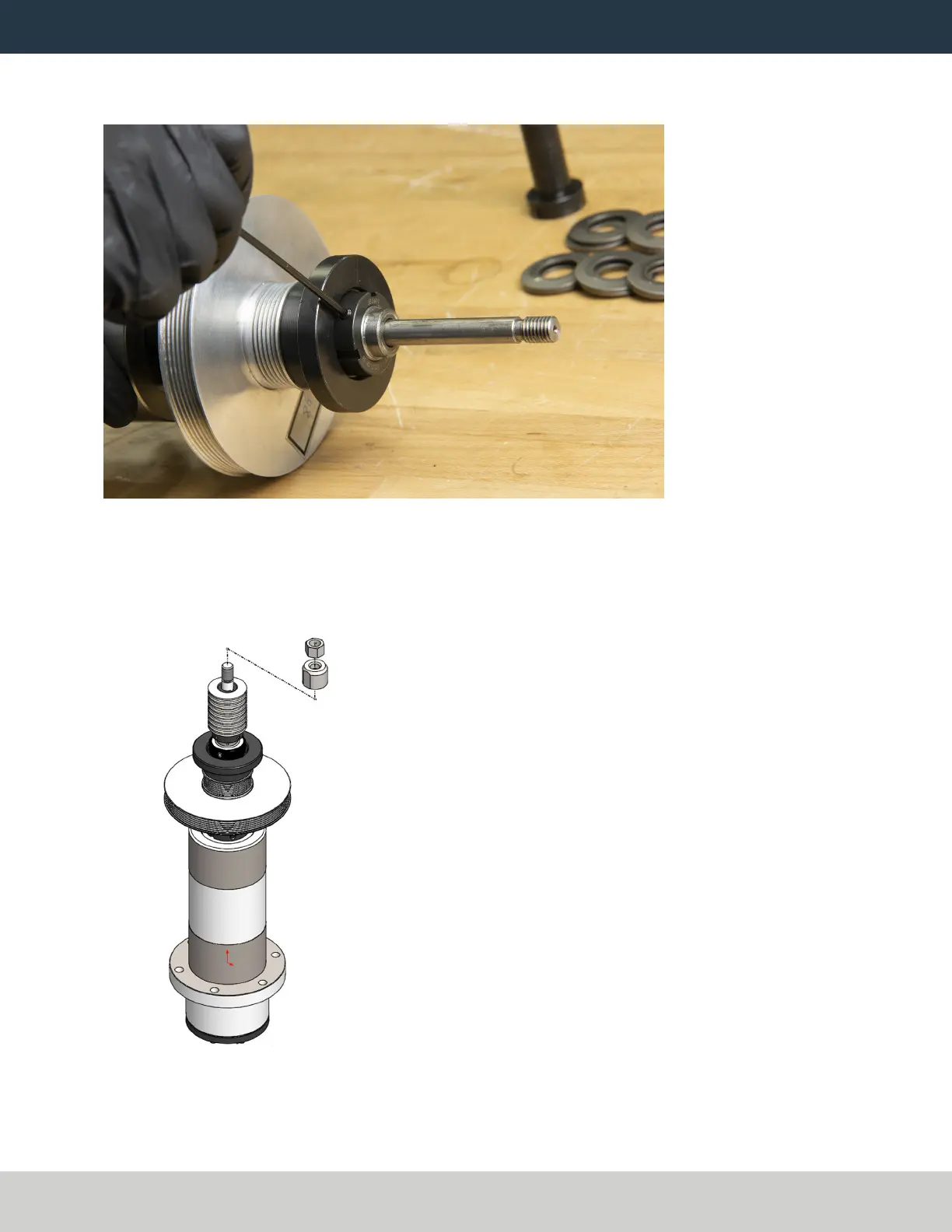

Figure 21: Preventing the drawbar shaft from rotating.
b. From the top of the drawbar, remove the jam nut with a 19 mm open-ended wrench and remove the disc
spring compression nut with a 25 mm open-ended wrench. Some drawbar assemblies also include a
number of shim washers beneath the disc spring compression nut. If your spindle includes these, save
them and reinstall them in the same location in Step 22.
Figure 22: Jam nut and disc spring compression nut removed from the drawbar.
