INSTALL THE BT30 SPINDLE AND ALIGN THE ENCODER
c. Loosen the two set screws on the disc spring guide with a 2 mm hex wrench, and then remove the
following items from the drawbar stack assembly:
l Disc springs, 16
l Disc spring guide

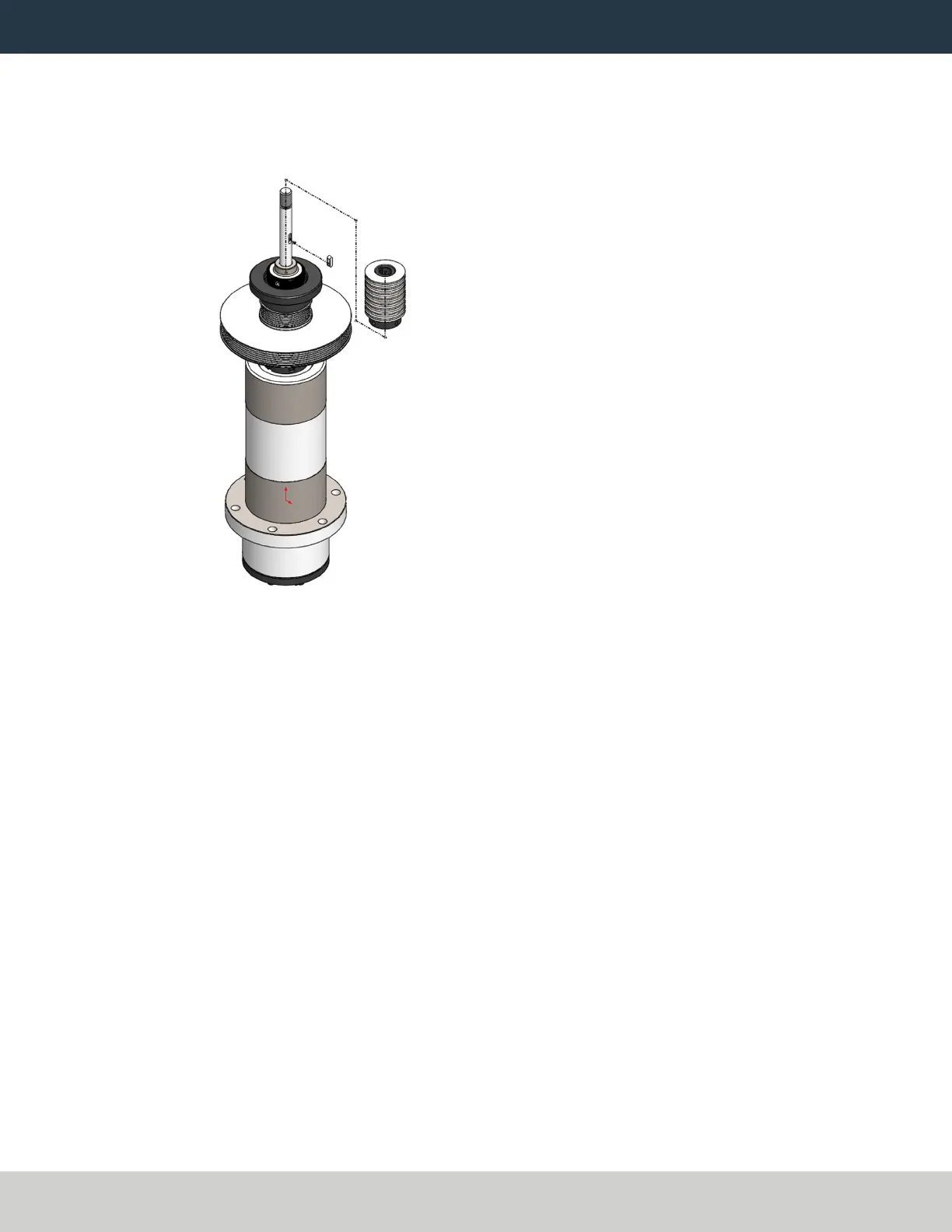

Figure 23: Disc springs and disc spring guide removed from the drawbar.
Page 24
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10705: Installation Guide: BT30 Spindle Upgrade Kit for 1100M+ (0521A)
