INSTALL THE BT30 SPINDLE AND ALIGN THE ENCODER
d. Loosen the three set screws that secure the retention nut with a 3 mm hex wrench.

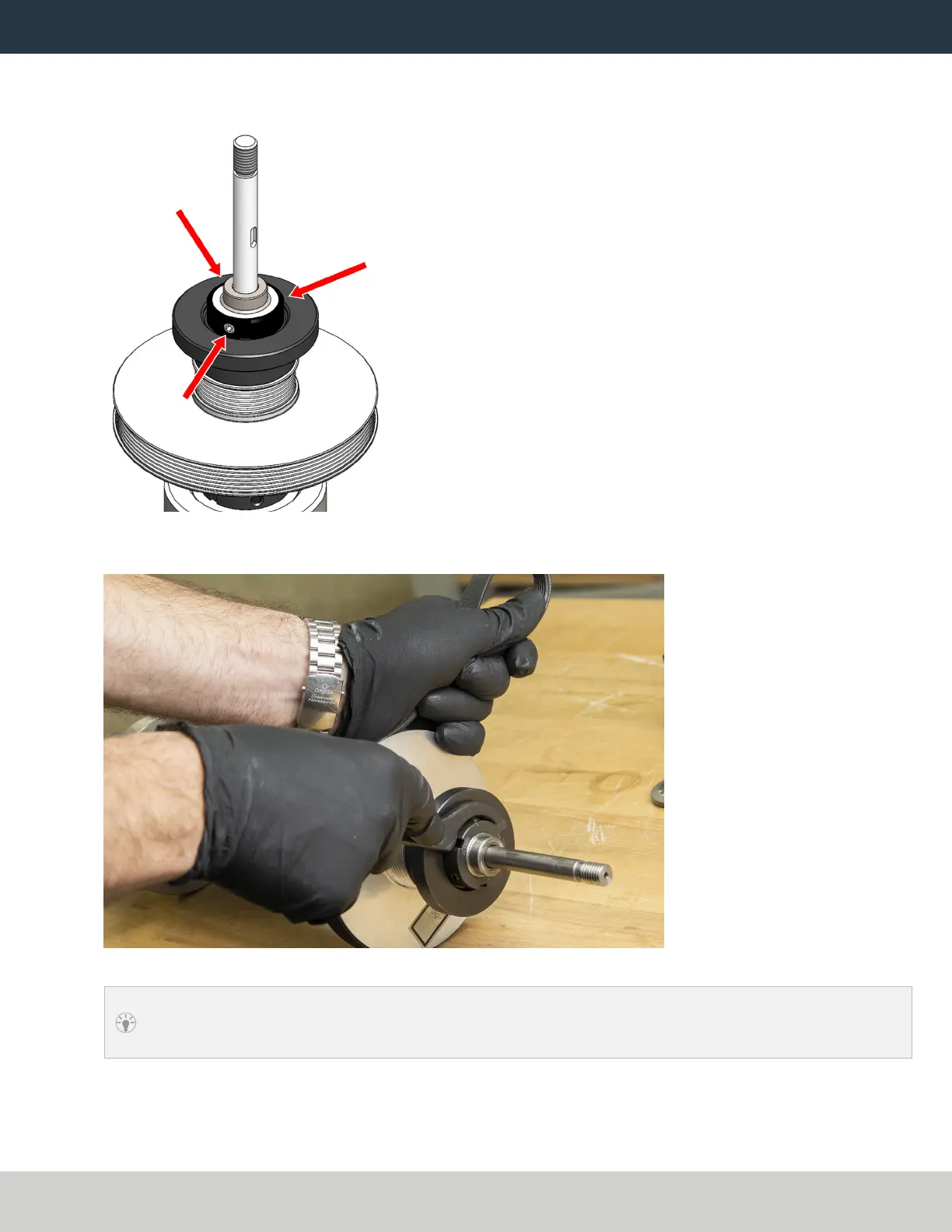

Figure 24: Three set screws on the retention nut.
e. Remove the retention nut with the provided spanner wrench. Set the retention nut aside.
Figure 25: Removing the retention nut.
Tip! For a better grip on the pulley, we recommend using the old 260 Poly-V belt to hold it
in place.
Page 25
©Tormach® 2021
Specifications subject to change without notice.
tormach.com
TD10705: Installation Guide: BT30 Spindle Upgrade Kit for 1100M+ (0521A)
