14 Instructions for Use TORMAX 1102, 1201 T-1661 e
4 Operation
The automatic swing door may only be operated by a skilled person, the operator or a person in-
structed by the operator.
4.1 Commissioning
Before switching on the mains power supply:
• Unlocktheoptionalmechanicaldoorlock.
• Checkthatthemovementareaof  thedoorleavesisfreefromobstructionssuchasracks,plant
containers, umbrella stands ect.
• SwitchonthemainspowersupplyandselectoperatingmodeAUTOMATIC,forexample.
 The door is now ready for operation.

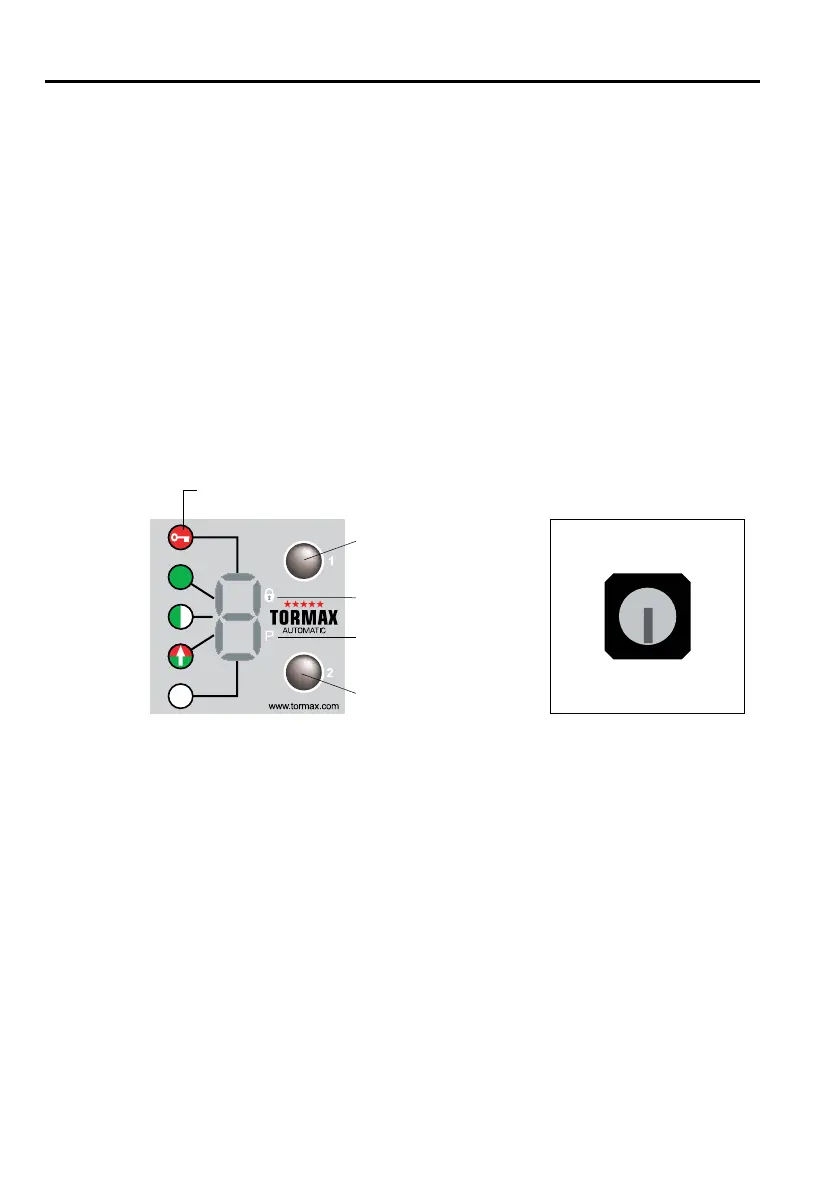

4.2 Operation with the TORMAX User Interface u
TORMAX User Interface Lock u for User Interface
The display is switched on by pressing the selector button briefly.
www.tormax.com
1
2
3
4
1
1
0
T1427_4
T1661_2e
OFF
AUTOMATIC
not assigned
OPEN
EXIT
Operating mode
symbols
Manual operation
Door electrically
locked
Selector key 2,
downwards
Selector key 1,
upwards
Unlocking of Operating Unit
The operating unit can be protected against unauthorized access by way of the lock u or the code lock.
• Unlocklock=position0
or
• Entercode…/…/…usingoperatingunit.Standardcode=3/3/3.Thecodecanbedetermined
by the engineer.
Example with code 3 / 3 / 3. Press upper selection button 3 times, then press the lower selection but-
ton 3 times and the upper selection button within 15 s . In case of entering wrong code: Wait at least
5 s . After successfully entering the code, the operating unit will be released within 60 s. The type of
operation can be adjusted. Access will be automatically blocked again for 60 s after the button has
been pressed for the last time.
Selection of Operating Modes
• Pressselectorkeys1or2briey.Thecorrespondingoperatingmodesymbolisilluminated.
