10 Instructions for Use TORMAX 1102, 1201 T-1661 e
3.2 System Function
The operator of the door system is responsible for
ensuring that the automatic swing door is freely ac-

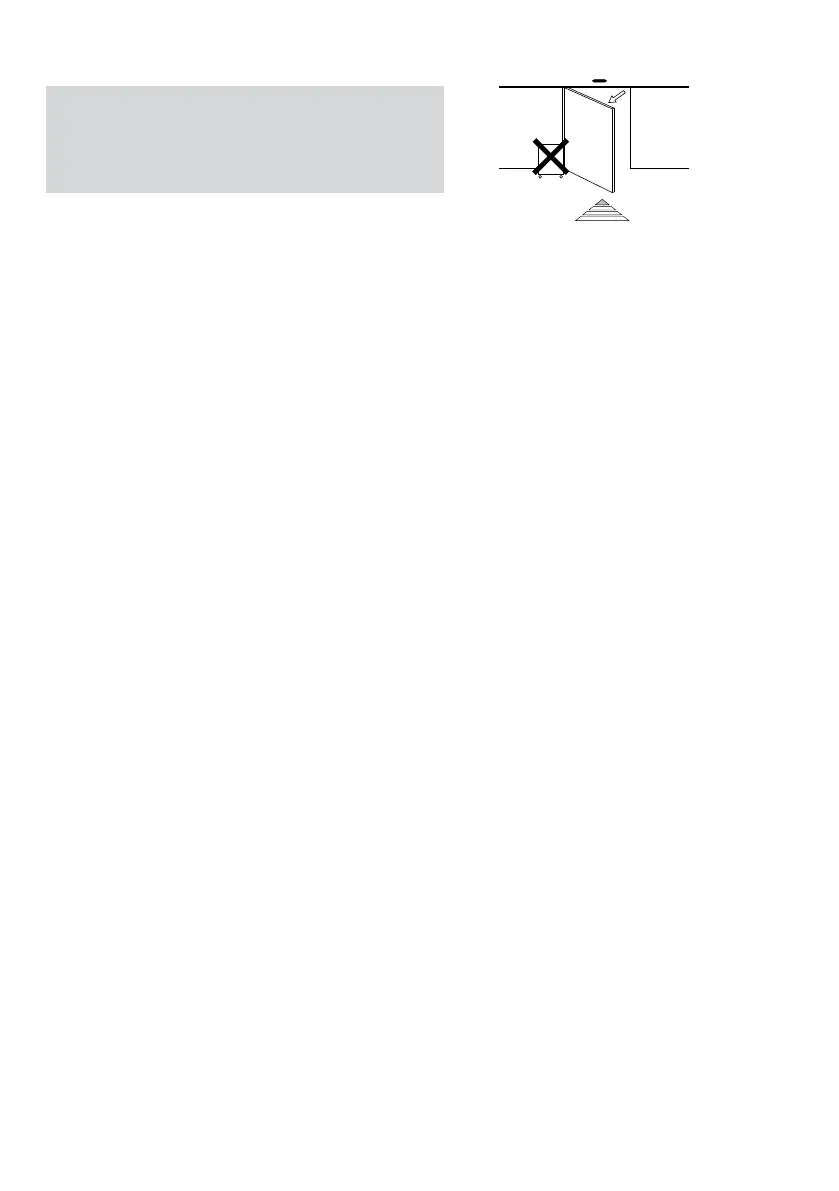

cessible at all times. The operator must particularly
ensure that the swing area of the door leaves is not
obstructed by any objects.
Automatic Door Operation with Sensors
When operating automatically (operating mode AUTOMATIC) the door is automatically opened from
both sides by sensors when a person approaches. A key switch u or card reader u normally allows
access from outside when the door is in operating mode EXIT or OFF. The door unlocks u, opens and
closes again as soon as no further sensors are activated after a hold-open time which is set sepa-
rately.
Double-leaved doors open at the same time or, in the case of overlapping door leaves, in sequence.
Closing must be in the correct closing sequence and, for reasons of safety, one after the other.
Door Leaf Protection
The safety devices are selected and installed by the installation company in line with general and
country-specific standards, guide-lines and requirements.
System with Full-Energy Mode
The door leaves are equipped with safety sensors on the leaves. The safety sensors prevent a person
in the operating radius of the leaf from being hit by the leaf. If one of the safety sensors should fail, the
system switches to safety mode. The door can still be opened but only manually. In the case of low risk
systems, the system switches to emergency mode. The door leaf still moves but only slowly and in
Low-Energy mode. If the safety device fails in the closing direction, the door remains open for 30 seconds.
Systems with Low-Energy Mode
Hazards due to impact and crushing are minimised by restrictions on speed and force. Thus the system
provides a high degree of safety.
The system offers maximum ease of use and safety if it is equipped with additional safety sensors.
Semi-automatic Operation with “Push-and-Go”
Instead of having sensors the door can be manually pushed open. After being detected by the control
system, the door opens automatically and closes again.
Manual operation with Power Assist
InoperatingmodeP“Manualoperation”ordependingontheexactsettinginAUTOMAT,thedoorcan
beeasilyopenedmanuallywith“PowerAssist”.Afteropening,thedoorremainsintheholdopenposi-
tion before it closes automatically using little force.
Dependingontheconguration,“PowerAssist”canbeactivatedinadvanceforalimitedperiodusing
a button, door trap sensor or a motion detector. In this case the door can be easily opened with very
little effort.
T1540_12
