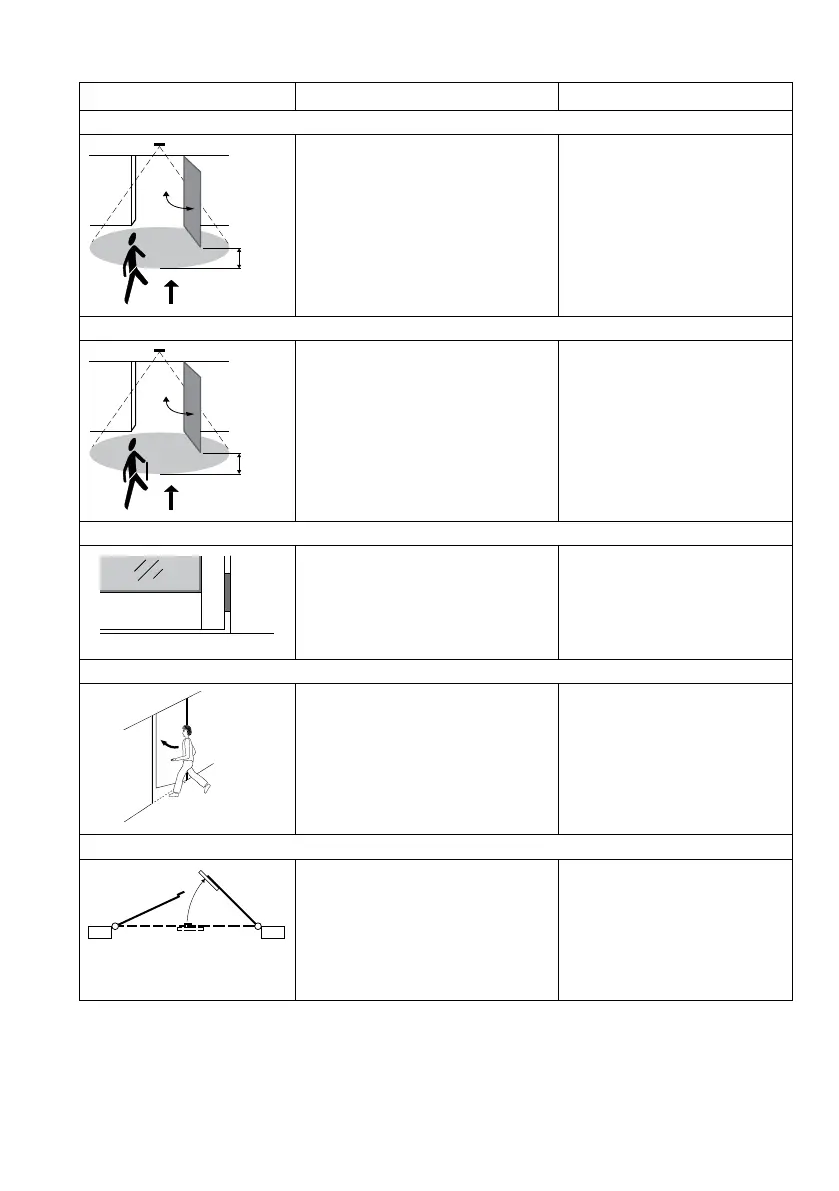

Instructions for Use TORMAX 1102, 1201 T-1661 e 21
7.2 Check-List for Functional Checks
Item To Be Checked Procedure Result
Sensors
T1661_4
min. 1 m
• Walkthroughthedoordirectly
from the front and from different
directions at normal speed, start-
ing both from the inside and out-
side. Activation (sensor field) at
least 1 m in front of the open main
closing edge.
The door opens at the right time
and with sufficient speed so that
passage through the door Is not
hindered.
Safety Sensors
T1661_5
min. 1 m
• Walkthroughthedoordirectly
from the front and from different
directions at a slow speed like an
infirm person, starting both from
the inside and outside. Activation
(sensor field) at least 1 m in front
of the open main closing edge.
The door opens and remains
open until you are completely
through the door.
Swing Leaf, Door Frame
• Checktheglassdoorllings,door
edges and rubber profiles for dam-
age.
The door fillings have no sharp
edges and splintered glass.
The side parts and the door seals
are in place and undamaged.
Panic Fitting u
• Isolatethedrivefromthepowersup-
ply (main system switch, mains
plug) or select operating mode OFF.
Then push the door in the direction
opposite to the opening direction
until the panic fitting releases the
door leaf. Now push the door leaf
back to the initial position.
The panic fitting can be released
and returned to the initial position.
Mechanical Door Coordinator u
• Placethesysteminoperatingmode
“P“ and open the secondary door
leaf halfway. Then allow the second-
ary door leaf to close.
The primary door leaf is also
pressed open by the driver flap.
This leaf then remains open and
motionless at about 25 degrees of
the door opening until the second-
ary door leaf which is closing is
practically closed.
To Next Page
