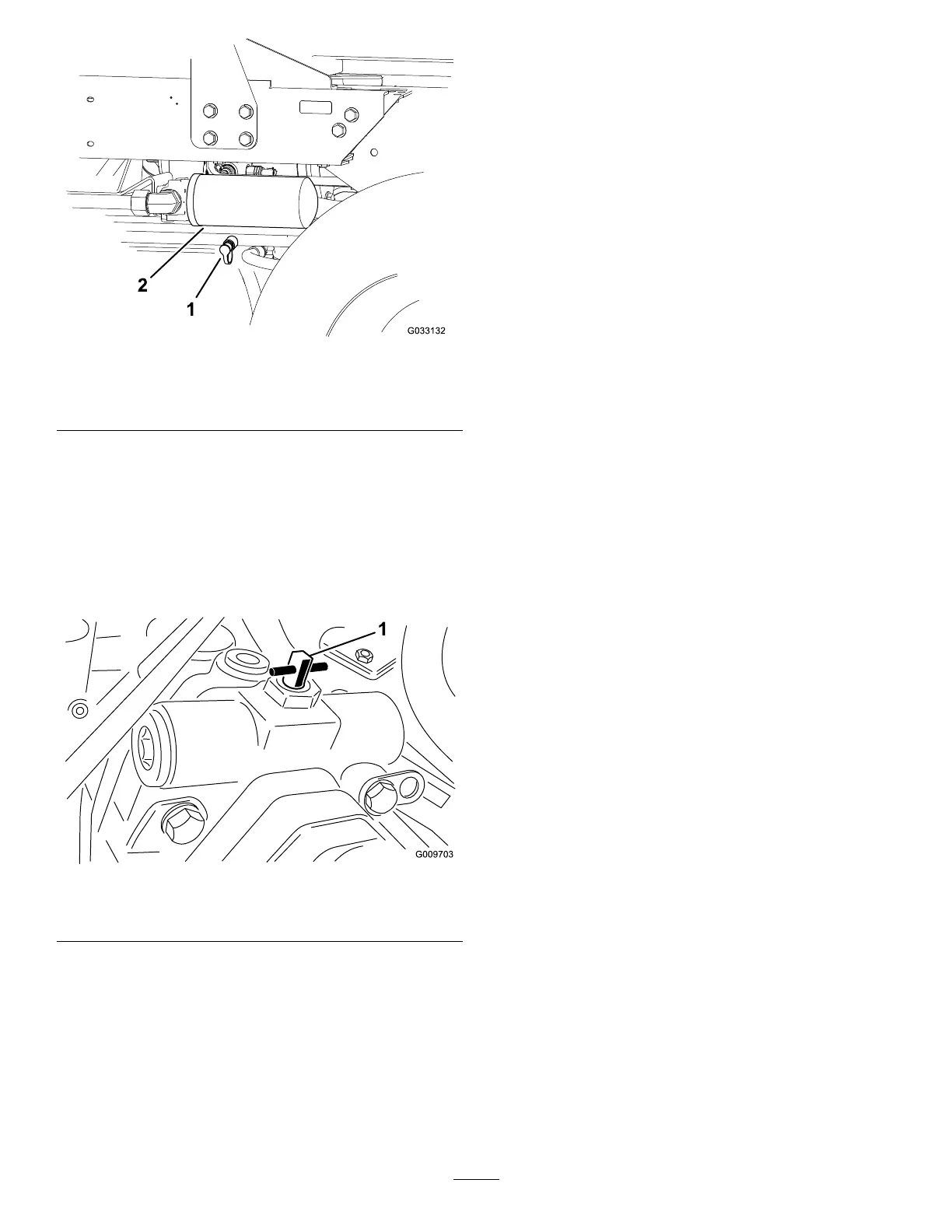

Figure39
1.Reversetractionpressure
testport
2.Hydraulicuidreturnlter
3.Rotatethebypassvalve90°(1/4turn)ineither
directiontoopenitandallowuidtobypass
internally(Figure40).
Note:Becausetheuidbypassesthe
transmission,youcanmovethemachineslowly
withoutdamagingthetransmission.
Notethepositionofthevalvewhenopeningand
closingit.
g009703
Figure40
1.Bypassvalve
4.Whenyouarenishedpushingortowingthe
machine,removethehydraulichosethatyou
installed.
5.Installtheexistingcapontothereversetraction
pressuretestport.
6.Installthediagnostic-ttingcapontothetting
thatyouinstalledonthemanifold.
7.Rotatethebypassvalve90°(1/4turn)back
beforestartingtheengine.
Note:Donotexceed7to11N∙m(5to8ft-lb)
torquetoclosethevalve.
PushingorTowingtheMachine
ForwardOnly
Ifyouneedtopushortowthemachineforwardonly,
youcanjustrotatethebypassvalve.
Important:Ifyouneedtopushortowthe
machineinreverse,refertoPreparingtheMachine
forPushingorTowinginReverse(page34).
1.Openthehoodandremovethecentershroud.
2.Rotatethebypassvalve90°(1/4turn)ineither
directiontoopenitandallowuidtobypass
internally(Figure40).
Note:Becausetheuidbypassesthe
transmission,youcanmovethemachine
forwardslowlywithoutdamagingthe
transmission.
Notethepositionofthevalvewhenopeningand
closingit.
3.Rotatethebypassvalve90°(1/4turn)back
beforestartingtheengine.
Note:Donotexceed7to11N∙m(5to8ft-lb)
torquetoclosethevalve.
