Greensmaster Flex 1800/1820/2100/2120Traction and Reel Drive System Page 4 − 40
Transmission Clutch System (1820/2120)

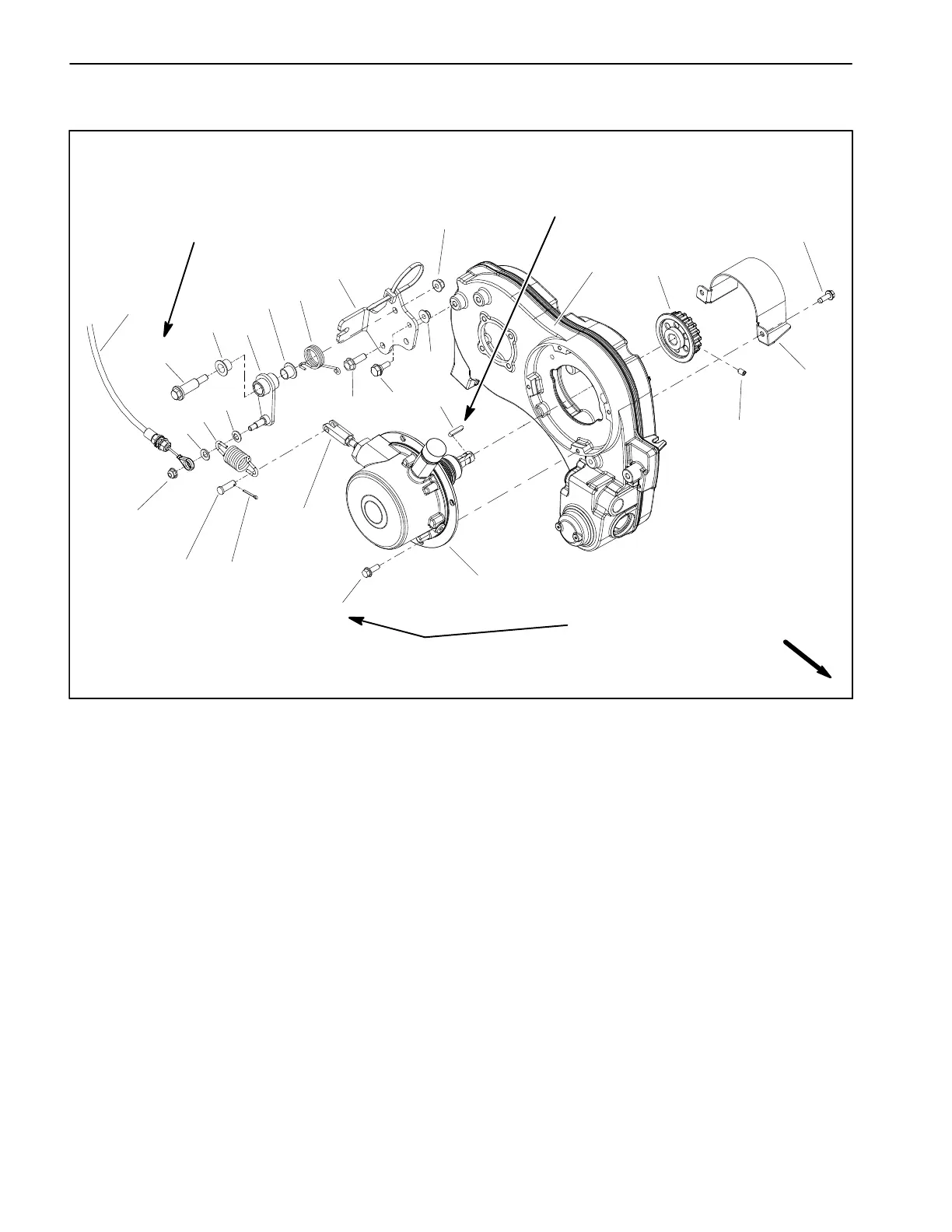

Figure 49
1. Clutch assembly
2. Flange head screw (2 used)
3. Traction cable bracket
4. Flange bushing (2 used)
5. Flange nut (2 used)
6. Belleville washer (2 used)
7. Flange nut
8. Clutch lever
9. Extension spring
10. Clevis pin
11. Cotter pin
12. Shoulder screw
13. Drive coupler
14. Key
15. Coupler guard
16. Washer head screw (2 used)
17. Set screw (2 used)
18. Washer head screw (4 used)
19. Torsion spring
20. Shoulder screw
21. Lock nut
22. Traction clutch cable
23. Spring anchor
24. Transmission housing
FRONT
15 to 17 ft−lb
(21 to 23 N−m)
2
3
6
8
9
10
11
13
1
5
7
12
14
15
16
17
18
19
20
4
21
22
4
6
See text for
tightening
procedure
Antiseize Lubricant
(top surface of key)
23
24
Transmission removal from the machine is not neces-
sary to remove the clutch assembly from the transmis-
sion. Transmission components (including the clutch
assembly) can be accessed by removing the engine
from the frame, removing the transmission cover and
then removing the transmission drive belt.
