Greensmaster Flex 1800/1820/2100/2120Traction and Reel Drive System Page 4 − 44

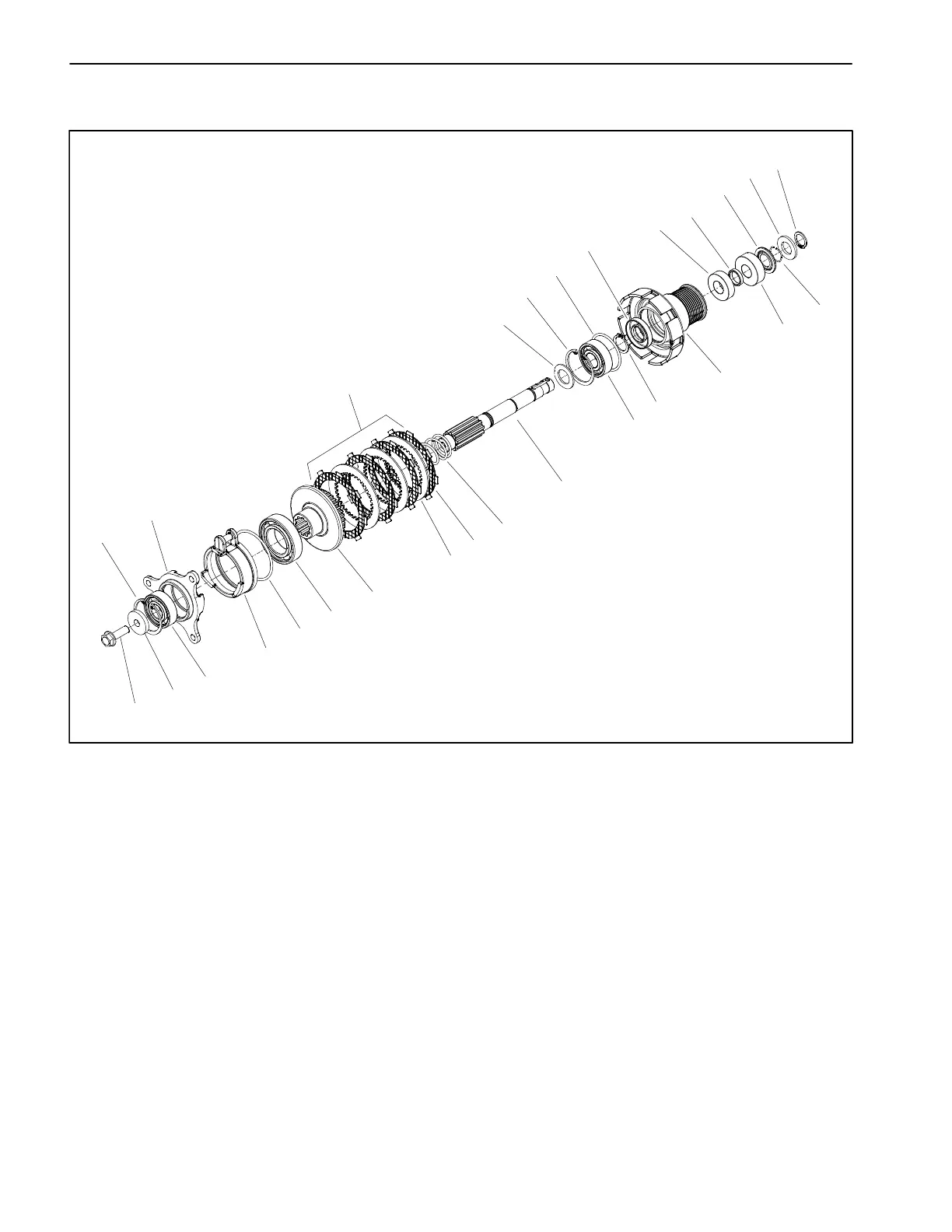

Clutch Shaft Service (1820/2120)
Figure 52
1. Retaining ring
2. Flat washer
3. Wave spring
4. Flocked seal
5. Ball bearing
6. Bearing spacer
7. Ball bearing
8. Clutch pulley
9. Oil seal
10. Retaining ring
11. O−ring
12. Ball bearing
13. Retaining ring
14. Bearing spacer
15. Clutch shaft
16. Compression spring
17. Clutch pack
18. Clutch disc (4 used)
19. Clutch plate (3 used)
20. Pressure plate
21. Ball bearing
22. O−ring
23. Clutch actuator
24. Clutch cam
25. Ball bearing
26. Retaining ring
27. Washer
28. Flange head screw
2
6
8
9
10
1
5
7
4
3
11
13
12
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Clutch Shaft Disassembly (Fig. 52)
NOTE: Several bearings used in the clutch shaft as-
sembly are a pressed fit so a press is required to service
the clutch shaft assembly.
1. To allow removal of flange head screw (item 26) that
secures clutch assembly to shaft, carefully secure end
of clutch shaft in vise. Use a vise with soft jaws to prevent
damage to clutch shaft.
2. To prevent compression spring (item 16) extension
during flange head screw removal, use a suitable hand
clamp to keep pressure plate (item 20) and clutch pulley
housing (item 8) secured and spring compressed.
3. Remove flange head screw (item 26) and washer
that secure clutch shaft assembly.
4. Slide clutch cam (item 24) with bearing from end of
clutch shaft.
