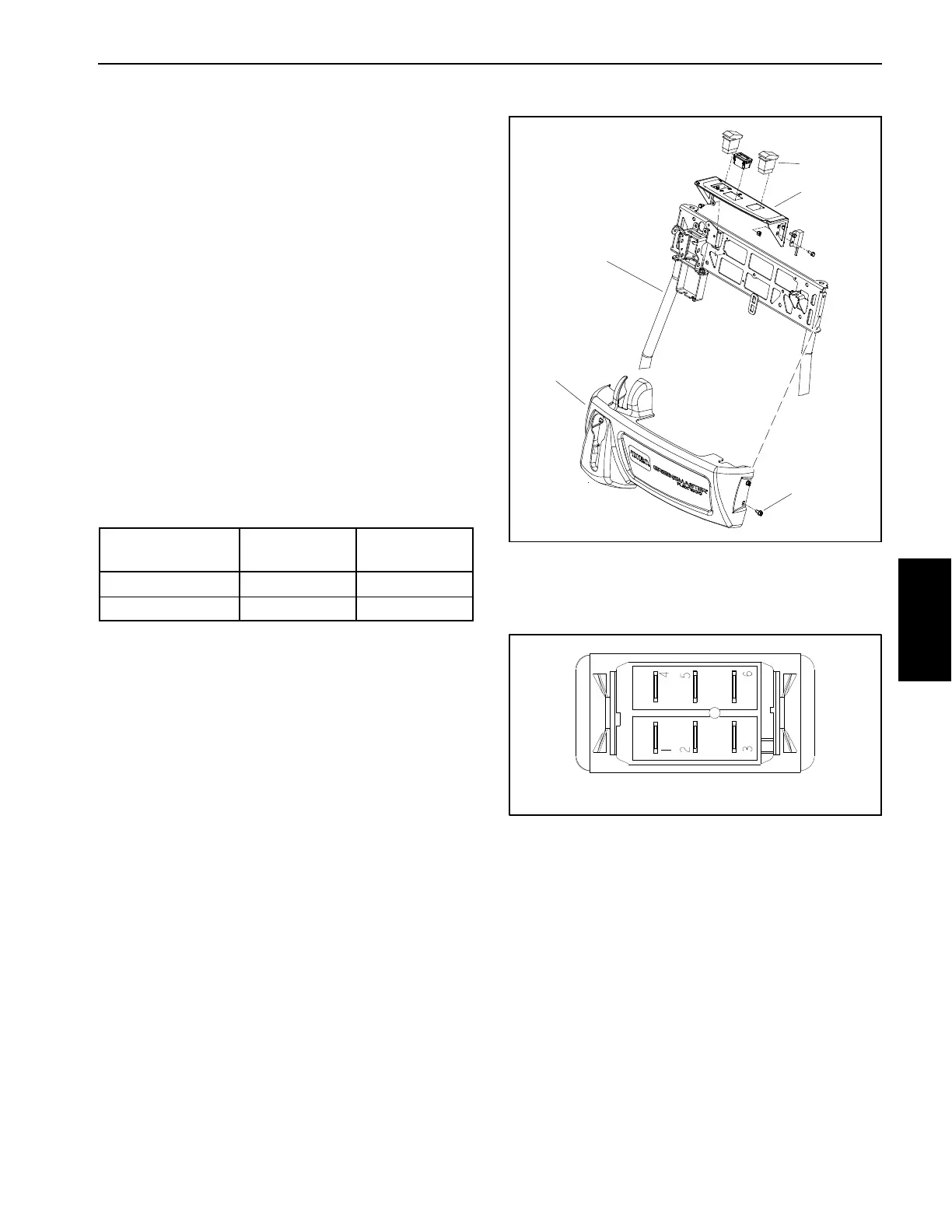

Greensmaster Flex 1800/1820/2100/2120 Page 5 - 13 Electrical System
Optional Light Switch
The optional light switch is located on the console on the
handle. This rocker switch allows the optional work
lights to be turned on and off.
Testing
1. Make sure the engine is OFF and the traction lever
is in the NEUTRAL position.
2. Remove console cover from handle to allow access
to light switch (Fig. 7).
3. Disconnect wire harness electrical connector from
the light switch.
4. With the use of a multimeter (ohms setting), the
switch functions may be tested to determine whether
continuity exists between the various terminals for each
switch position. The switch terminals are marked as
shown in Figure 8. The circuitry of the light switch is
shown in the chart below. Verify continuity between
switch terminals.
SWITCH
POSITION
NORMAL
CIRCUITS
OTHER
CIRCUITS
OFF 2+1 5+4
ON 2+3 5+6
5. Replace switch if necessary.
6. When switch testing is complete, connect wire har-
ness electrical connector to the light switch.
7. Install console cover to handle.
1. Light switch
2. Switch panel
3. Lower handle
4. Console cover
5. Screw (4 used)
Figure 7
5
3
1
2
4
Figure 8
BACK OF SWITCH
NOTE: Optional light switch terminals 1, 4, 5 and 6 are
not used on Greensmaster Flex machines.
Electrical
System
