InstallingtheGearBoxAssembly(continued)
8.Applyaretainingcompound(Loctite609orequivalent)tothelipofthedrive
housingandinstallthedriveshield.
9.Installthegroomerreelassembly;refertoInstallingtheGroomerReel(page
9–19).
IdlerAssembly

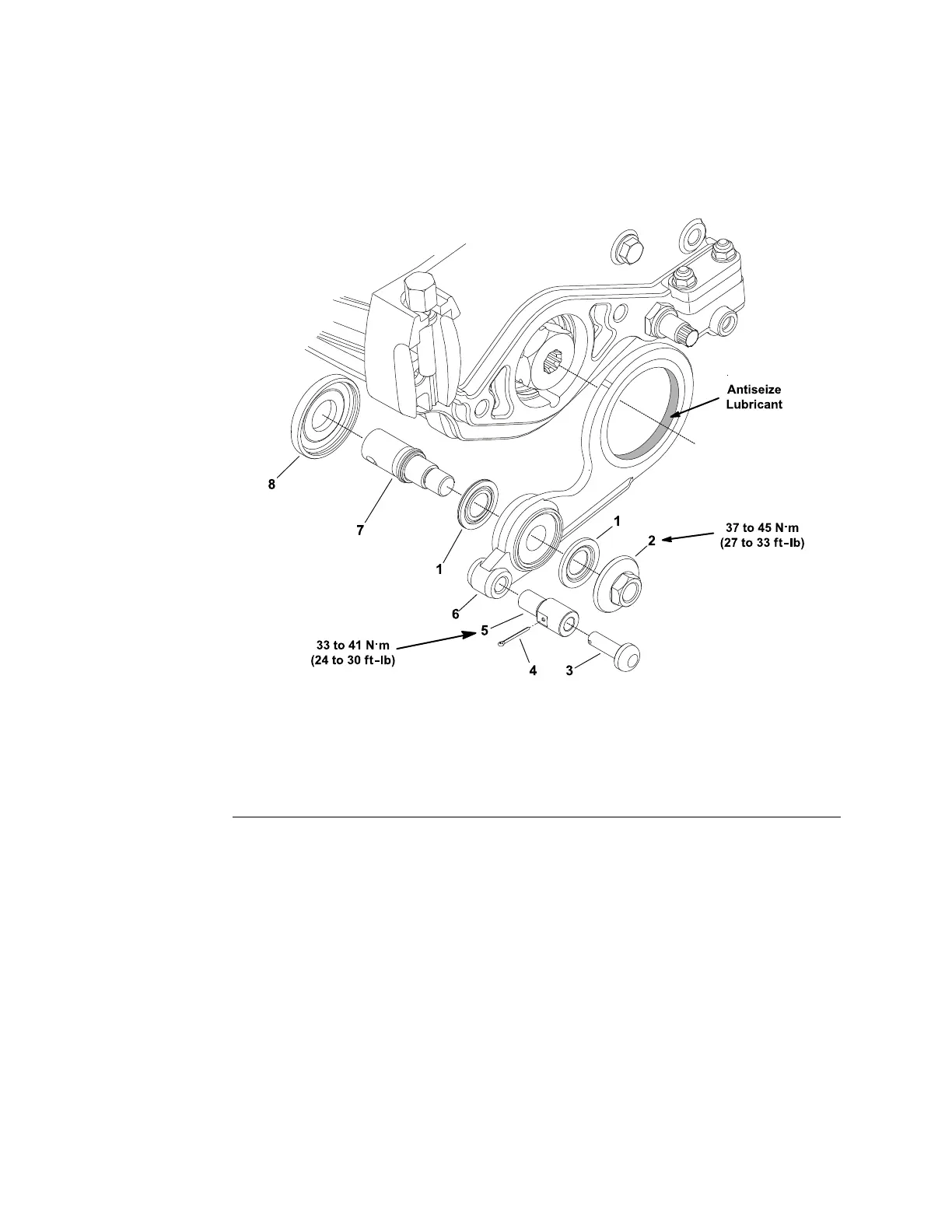

g251084
Figure8
1.Flockedbearingshield(2each)5.Collar
2.Flangenut
6.Idlerarm
3.Clevispin7.Stubshaft
4.Cotterpin8.Shield
Note:Thegroomeridlerassemblyislocatedontheoppositesideofthegroomer
gearboxassembly.
RemovingtheIdlerAssembly
1.Parkthemachineonacleanandlevelsurface,lowerthecuttingunits
completelytotheground,settheparkingbrake,andremovethekeyfromthe
keyswitch.
2.Removereeldrivecover,drivebelt,reelpulleyandthenreeldriveassembly
fromcuttingunit(seeReelDriveAssemblyintheServiceandRepairssection
ofChapter4–TractionandReelDriveSystem).
3.Removethegroomerreelassembly;refertoRemovingtheGroomerReel
(page9–19).
4.Removethecotterpinandclevispinfromtheheightadjustmentrodatthe
frontoftheidlerarmandremovetheidlerassemblyfromthecuttingunit.
Discardthecotterpin.
