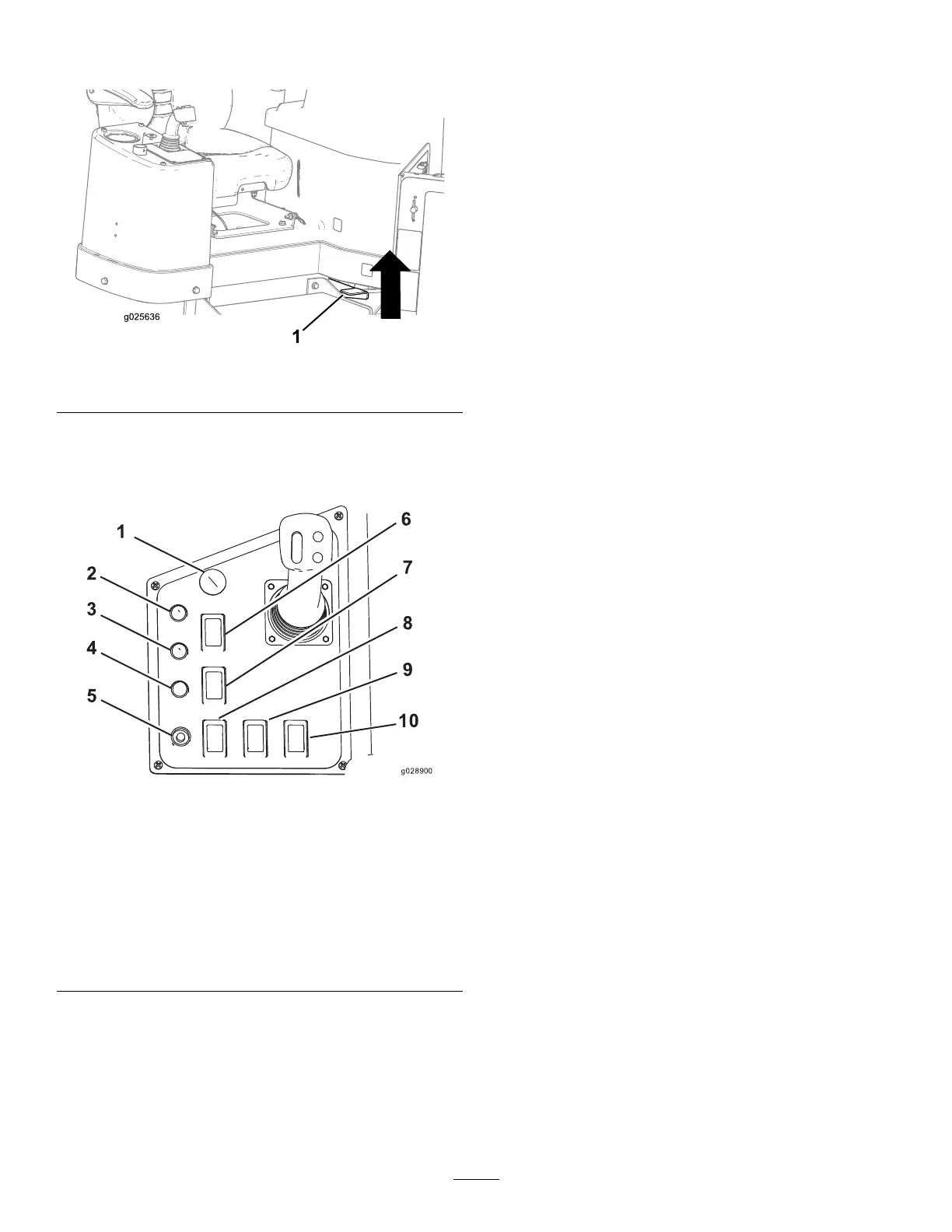

Toreleasetheplatformandswingitoutorin,pressuponthe
frontplatformlatch(Figure11).
Figure11
1.Frontplatformlatch
ControlPanel
g0 2 8 900
10
1
2
3
4
5
6
7
8
9
Figure12
1.Engine-stopbutton
6.Ground-strike-resetswitch
2.Exit-sidelockout—reset
light
7.Exit-side-lockout—reset
switch
3.Exit-side
lockout—drill-enabled
light
8.Drive/drillswitch
4.Receiver-battery-status
light
9.Lightsswitch
5.Engine-startbutton10.Engine-speedswitch
Exit-SideLockout—ResetLight
Thislight(Figure12)illuminatesyellowwhentheexit-side
lockoutfunctionisturnedoffonexit-side-lockouttransmitter,
indicatingthatyoumayresetthesystem.
Exit-SideLockout—Drill-enabledLight
Thislight(Figure12)illuminatesgreenwhenthe
exit-side-lockoutfeaturehasbeenturnedoffandresetand
themachineisreadytodrill.
Exit-SideLockout—ResetSwitch
Pressthisswitch(Figure12)toenabledrillingoperationwhen
theresetlightilluminates.
Transmitter-Battery—StatusLight
Thislight(Figure12)illuminatesredwhenthebatteryon
theexit-side-lockouttransmitteristoolowtotransmit.Stop
drillingoperationsandxtheproblemwiththetransmitter
beforecontinuing.
Engine-StartButton
Pressthisbutton(Figure12)tostarttheengine.Thekey
switchontherear,controlpanelmustbeintheONposition.
Engine-StopButton
Pressthisbutton(Figure12)toimmediatelystoptheengine
andalldrillingoperations.Youmustpullthisbuttonout
beforeyoucanstarttheengineagain.
Ground-Strike-ResetSwitch
Pressthisswitch(Figure12)toresettheZap-Alertsystem
afteragroundstrikehasoccurredandbeenxed;referto
DeployingtheZap-AlertSystem(page46).
Drive/DrillSwitch
Pressthetopofthisswitch(Figure12)toenablethedriveand
setupcontrolsorthebottomtoenabledrillandpipe-loader
functions.
LightsSwitch
Pressthetopofthisswitch(Figure12)toturnthemachine
lightsonorthebottomtoturnthemoff.
Engine-SpeedSwitch
•Pressandholdthetopofthisswitchtoincreasethe
enginespeed.
•Pressandholdthebottomofthisswitchtodecreasethe
enginespeed.
•Releasetheswitchtomaintainthecurrentenginespeed.
22
