SettingUpthePumptoUseaNaturalWaterSource
Tosetupapumptouseanaturalwatersource,youmust
ensurethatyouusetheY-screentolterallmaterialsother
thanwater.
ToinstalltheY-screenperformthefollowingtasks:
1.Removethepump-inletcap(Figure48).

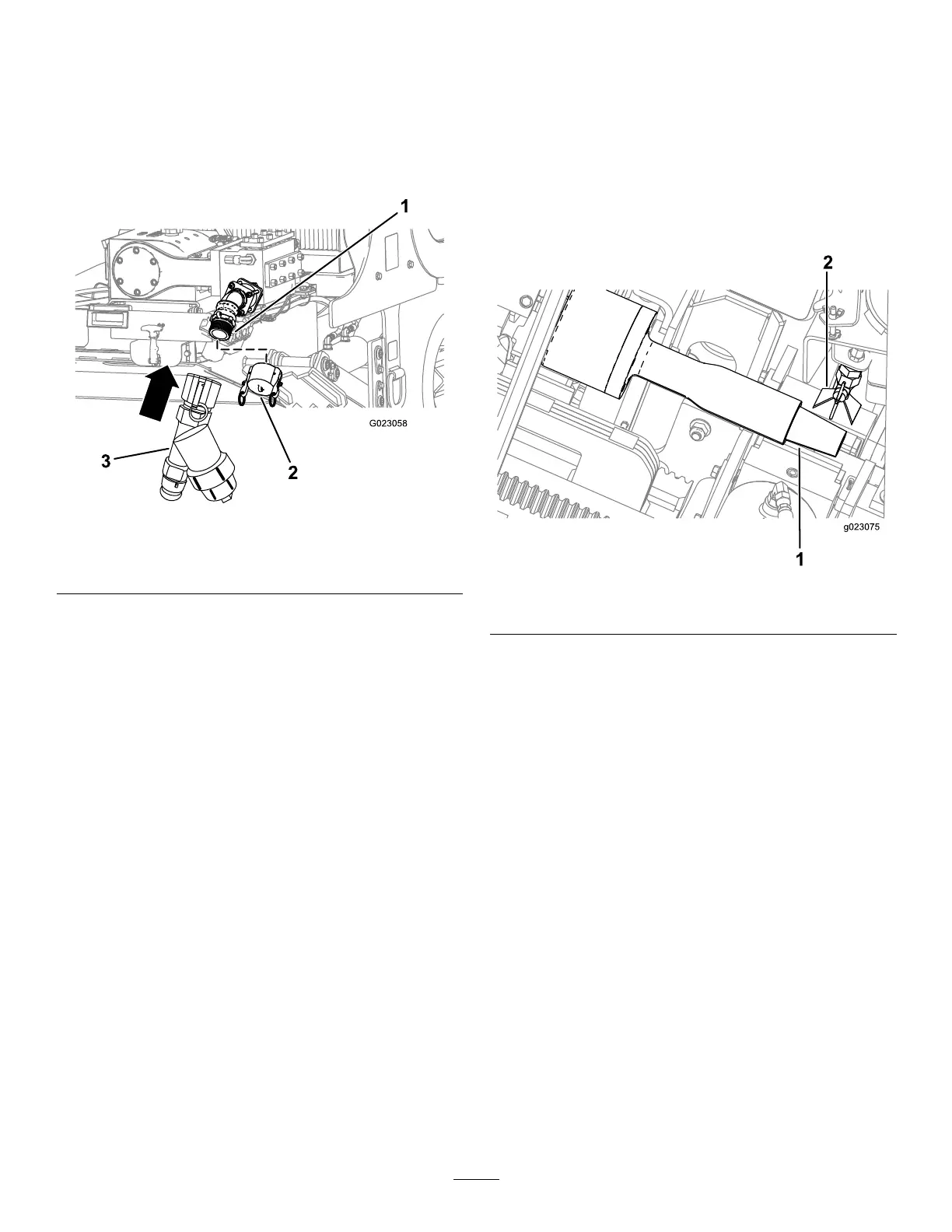

Figure48
1.Pumpthreads3.Y-screen
2.Pump-inletcap
2.AligntheY-screenwiththethreadsonthepump
(Figure48).
3.RotateandtightentheY-screenontothepump.
4.AttachthehosetotheY-screen,andbeginpumping
fromthenaturalwatersource.
DrillingtheBore
StartingtheFirstPipe
1.Ensurethatallbystandersareawayfromthemachine
andthattheexit-sidelockoutisOn.
2.Movethedrillcarriagefullydownthedrillframeand
spraythespindlethreadswiththreadjointcompound,
thenreturnthedrillcarriagetotheupperendofthe
frame(Figure43).
Figure49
1.Drillspindle
2.TJC-applicatornozzle
3.Rotatethepipegrippertotherstrowofpipesin
thepipeholderbyaligningtherowindicatortorow
number1.
4.Lowerthepipeelevatorstoloadapipeintothepipe
gripper.
5.Rotatethepipegripperwiththepipetowardthedrill
frame,andextendthepipeuntilthepipeiscentered
overtheframeandinfrontofthespindleonthedrill
carriage.
6.Rotatethedrillspindleclockwiseandmovethecarriage
slowlyforwardtoinsertthespindleintothefemaleend
ofthepipe(Figure50).
49
