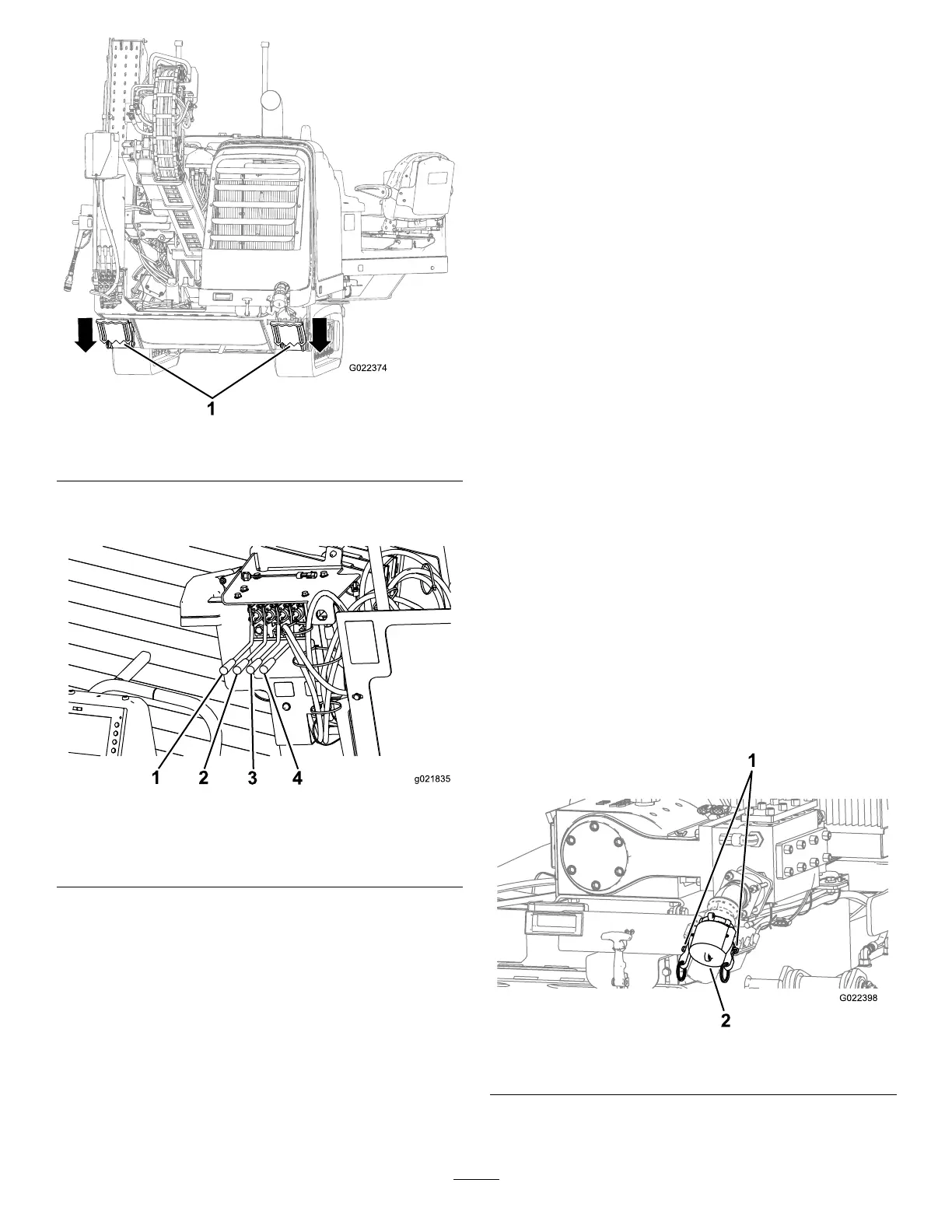

Figure45
1.Rearstabilizers
6.Pressthe2rightstakeleversintolowerandspinthe
rightstakeaugeruntilitseatsfully(Figure46).
g021835
1
2
3 4
Figure46
1.Left-stake-raise/lower
lever
3.Right-stake-raise/lower
lever
2.Left-stake-spinlever
4.Right-stake-spinlever
7.Repeatstep6fortheleft-sidestake.
ConnectingtoaDrilling-FluidSource
Whendrillingandreaming,youpumpamixtureofbentonite
clay,water,andsometimesotheringredients,collectively
calleddrillinguidor“Mud”,throughthepipeandintothe
bore.Thisdrillinguid,or“Mud”,doesthefollowingfor
yourbore:
•Lubricatesthedrillhead
•Loosensthesoilintowhichthedrilliscutting
•Penetratesandbindsloosesoiltokeepthemfrom
collapsingontheborepipe.
Thespecicmixtureyouneedwillvarydependingonyour
soiltypeandtheoperationyouareperforming;refertoyour
mixingsystemOperator’sManualfordetails.
Conversely,forsomejobs(dependingonthesoiltypeand
distance),youcanpumpscreenedwaterfromanaturalwater
source,suchasalakeorriver,throughthedrillinlieuof
mixeddrillinguid.
•Toconnectthemachinetoamixingsystem,referto
SettingUptheMixingSystem(page48).
•Toconnectthemachinetoanaturalwatersource,referto
SettingUpthePumptoUseaNaturalWaterSource(page
49).
SettingUptheMixingSystem
Setupyourmixingsystemnearthedirectionaldrilllocation,
preferablydownwindsofumesfromthemixingsystem
enginewillnotbotheryouwhiledrilling.Followthe
instructionsprovidedinthemixingsystemOperator’sManual
forsettingitupandusingit.
Completethefollowingtoconnecttheexithosefromthe
mixingsystemtothedrilling-uidpumponthemachine:
1.Raisethecam-lockleversonthepump-inletcapand
removethecap(Figure47).
Figure47
1.Cam-locklevers
2.Pump-inletcap
2.Insertthehosefromthemixingsystemoverthepump
inletandsecureitwiththecam-locklevers.
