AdjustingtheTJC-sprayVolume

Toadjustthevolumeofthread-jointcompoundthatis

deliveredbytheapplicator,completethefollowing:

1.Loosenthejamnutontheadjustmentboltlocatedon

topoftheTJC-applicatorpiston(Figure55).

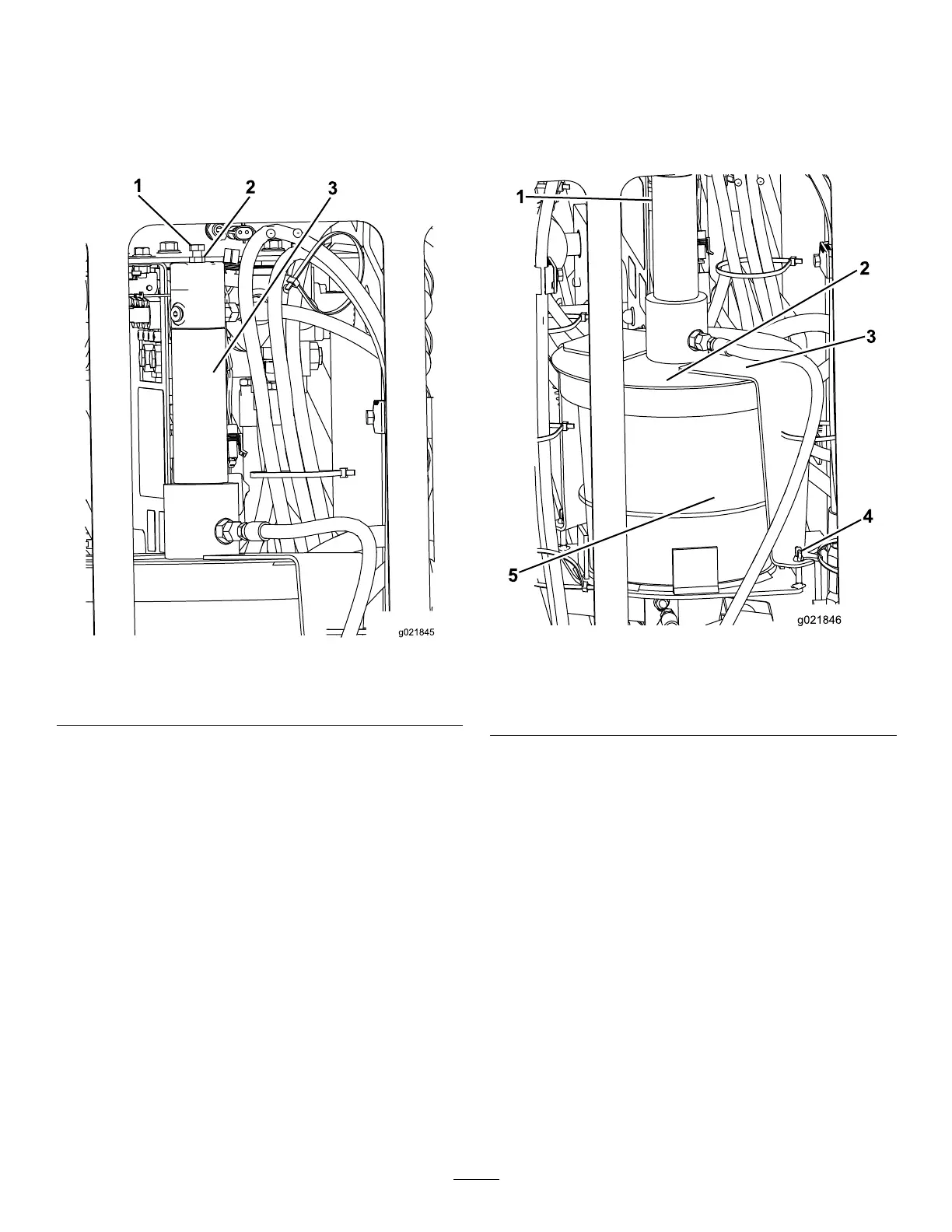

g021845

Figure55

1.Adjustmentbolt

3.TJC-applicatorpiston

2.Jamnut

2.Adjusttheboltasfollows:

•Toincreasetheappliedvolumeofcompound,

threadtheboltout(up).

•Todecreasetheappliedvolumeofcompound,

threadtheboltin(down).

3.Whenyouhaveattainedthedesiredapplicationvolume,

tightenthejamnuttosecuretheadjustment.

FillingtheTJCApplicator

1.Stopthemachineandstoptheengine.

2.Openthestake-down-guarddoor.

3.Loosenthewingnutssecuringthecoverstrapstothe

machine(Figure56).

g021846

Figure56

1.TJC-applicatorpiston

4.Wingnut

2.Cover5.TJCbucket

3.Strap

4.Rotatethecoverandpullthecoverstrapsoffthe

retainingbolts(Figure56).

5.Liftthecoverassemblyoffandoutoftheempty

thread-joint-compoundbucket(Figure56).

6.Replacetheemptybucketwithanewfullbucket.

7.Placetheplungerintothenewbucketandlowerthe

coverassemblyontothebucket(Figure56).

8.Slidethecoverstrapsovertheretainingboltsandrotate

thecovertoseatthestrapsonthebolts(Figure56).

9.Tightenthewingnuts.
