Toro 29521 - Page 12

g267524

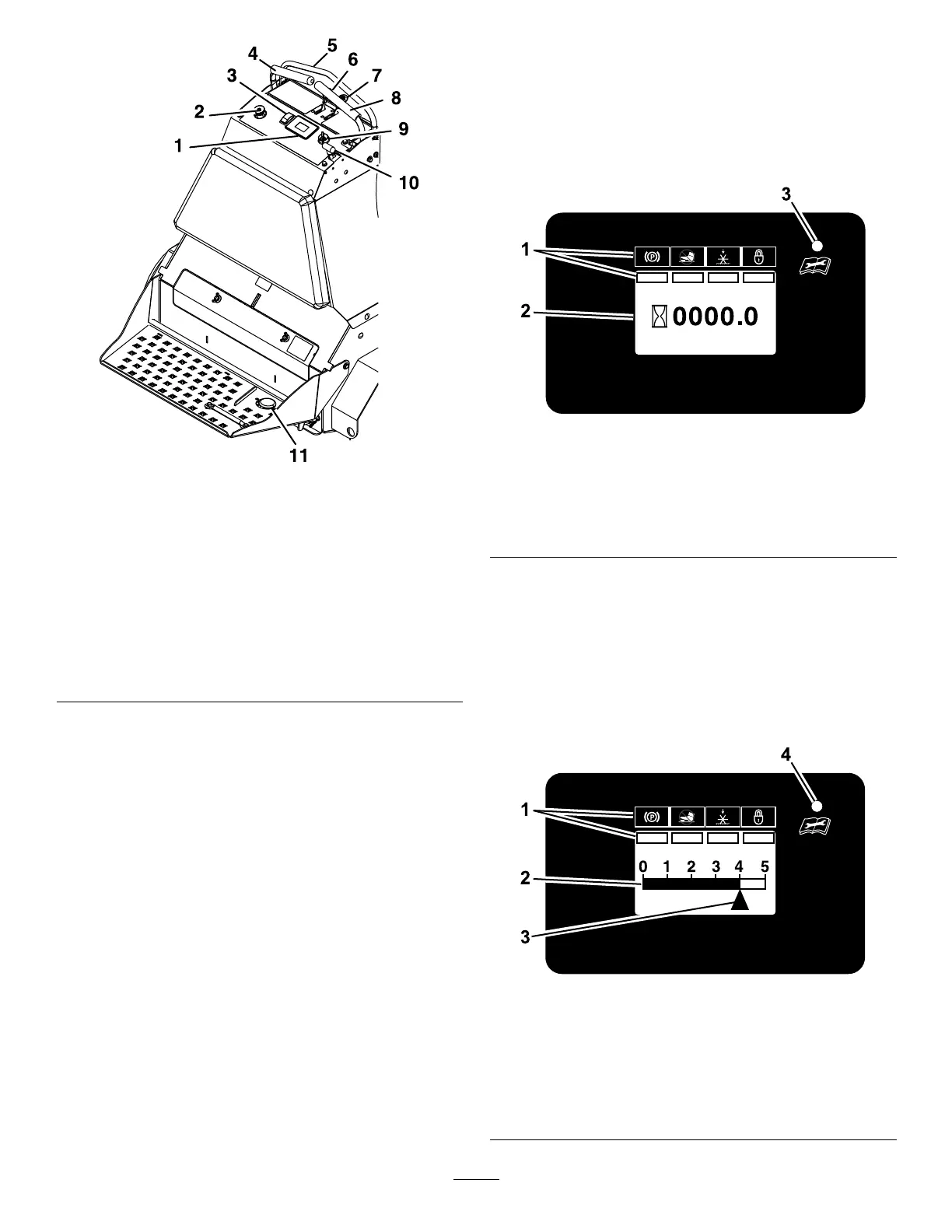

Figure7
1.Hour
meter/tine-engagement
display
7.Chokelever
2.Operatorweight
adjustmentcontrol
8.Rightmotion-controllever
3.Multi-functionswitch
9.Ignitionswitch
4.Leftmotion-controllever
10.Parking-brakehandle
5.Frontreferencebar
11.Tineground-engagement
footswitch
6.Throttlelever
Parking-BrakeHandle
Theparking-brakehandleislocatedonthecontrol
console,totherightofthekeyswitch(Figure7).
Note:Thebrakehandleengagesaparkingbrakein
eachofthetransmissions.
•Toengagetheparkingbrake,pullthehandleout
andslideitrearward.
•Toreleasetheparkingbrake,pushthehandle
forwardintothedetent.
Whenparkingonasteepslope,chockorblockthe
wheelsinadditiontoengagingtheparkingbrake.Tie
downthemachineandengagetheparkingbrake
whentransportingthemachine.
HourMeter/TineEngagement
Display
Locatedtotheleftoftheignitionswitchonthecontrol
console.
•Thehourmetermonitorsanddisplaystheengine
hours.
g211730
Figure8
Hourmeterdisplay
1.LCDIndicators/Informationscreen
2.Hourdisplay
3.LEDstatuslight
Hoursaredisplayedwhenthekeyisofforwhen
themachineisrunning.Hoursarenotdisplayed
whenthemachineisaerating.
Note:TheLCDindicatorappearsinthepark
brakesettingwhenitmeetsthe“safetostart”
mode(parkingbrakeengaged).
•Thetine-engagementdisplaymonitorsand
displaystheelectronictine-depthsetting.
g211731
Figure9
Tine-engagementdisplay
1.LCDIndicators/Informationscreen
2.Tinedepthstatusbar
3.Tinedepthsettingindicator
4.LEDstatuslight
