Product Overview

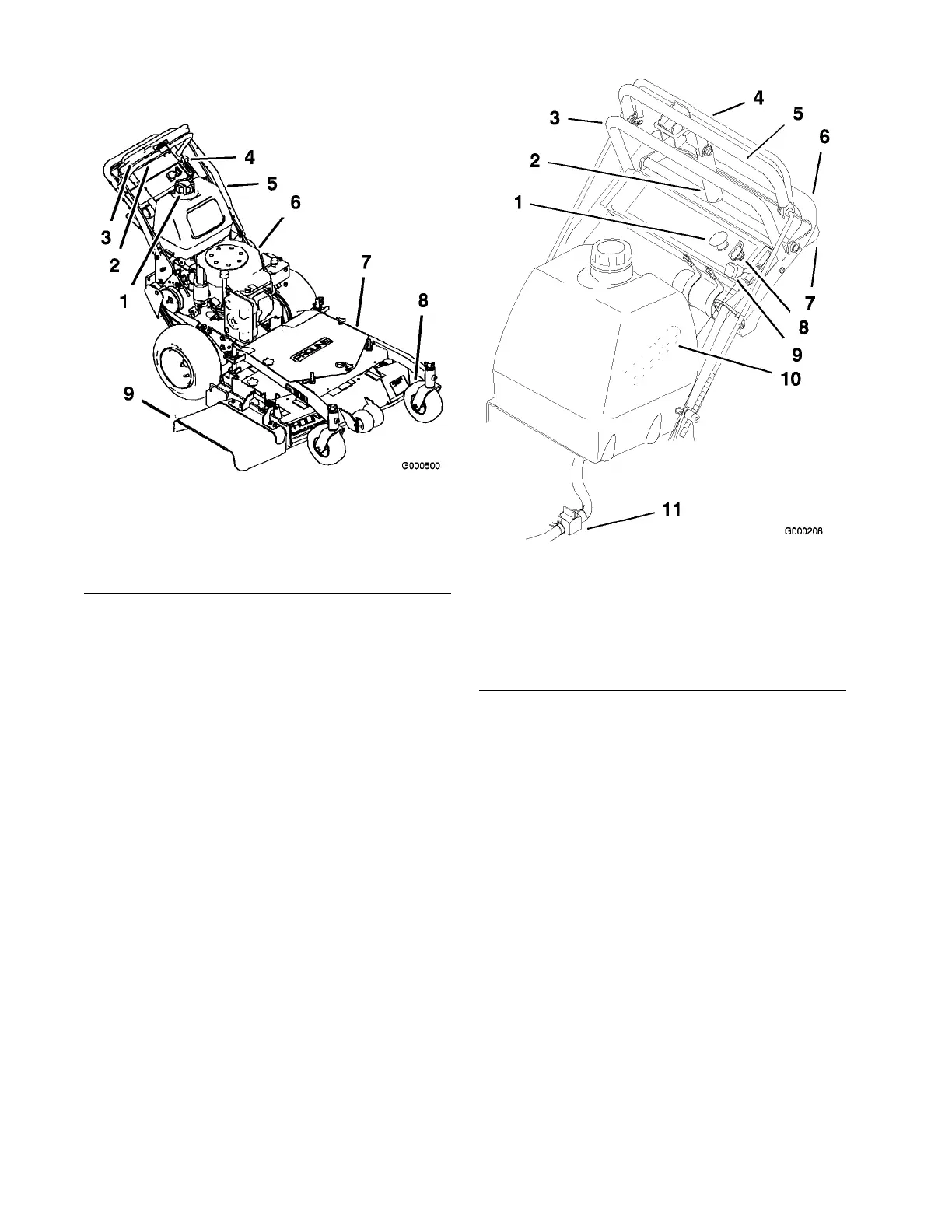

Figure 14
1. Gas tank
6. Engine
2. Blade control bail 7. Mower deck
3. T-bar control 8. Front caster wheel
4. Controls 9. Side discharge chute
5. Handle
Controls
Become familiar with all the controls ( Figure 15 )
before y ou star t the engine and operate the
mac hine .
Figure 15
1. Throttle control 7. Parking brake
lever-released position
2. Blade control bail 8. Ignition switch
3. Power take off switch (PTO)
9. Lower handle
4. Gear shift lever 10. Fuel shut-off valve
5. Upper control bar 11. Upper handle
6. Lower control bar
Throttle Control
T he throttle control has three positions: Chok e ,
F ast and Slo w .
Blade Control Bail
T he bail is used in conjunction with the po w er
tak e off switc h (PTO) to eng ag e the clutc h to dri v e
the mo w er blades . R elease the mo w er control bail
to diseng ag e the mo w er blades .
Power Take Off Switch (PTO)
T his pull switc h is used in conjunction with the
blade control bail to eng ag e the clutc h to dri v e the
mo w er blades .
Gear Shift Lever
T he transmission has fiv e forw ard speeds , neutral
and rev erse , and has an in-line shift patter n.
18
