Toro 30317 - Removing the Blades

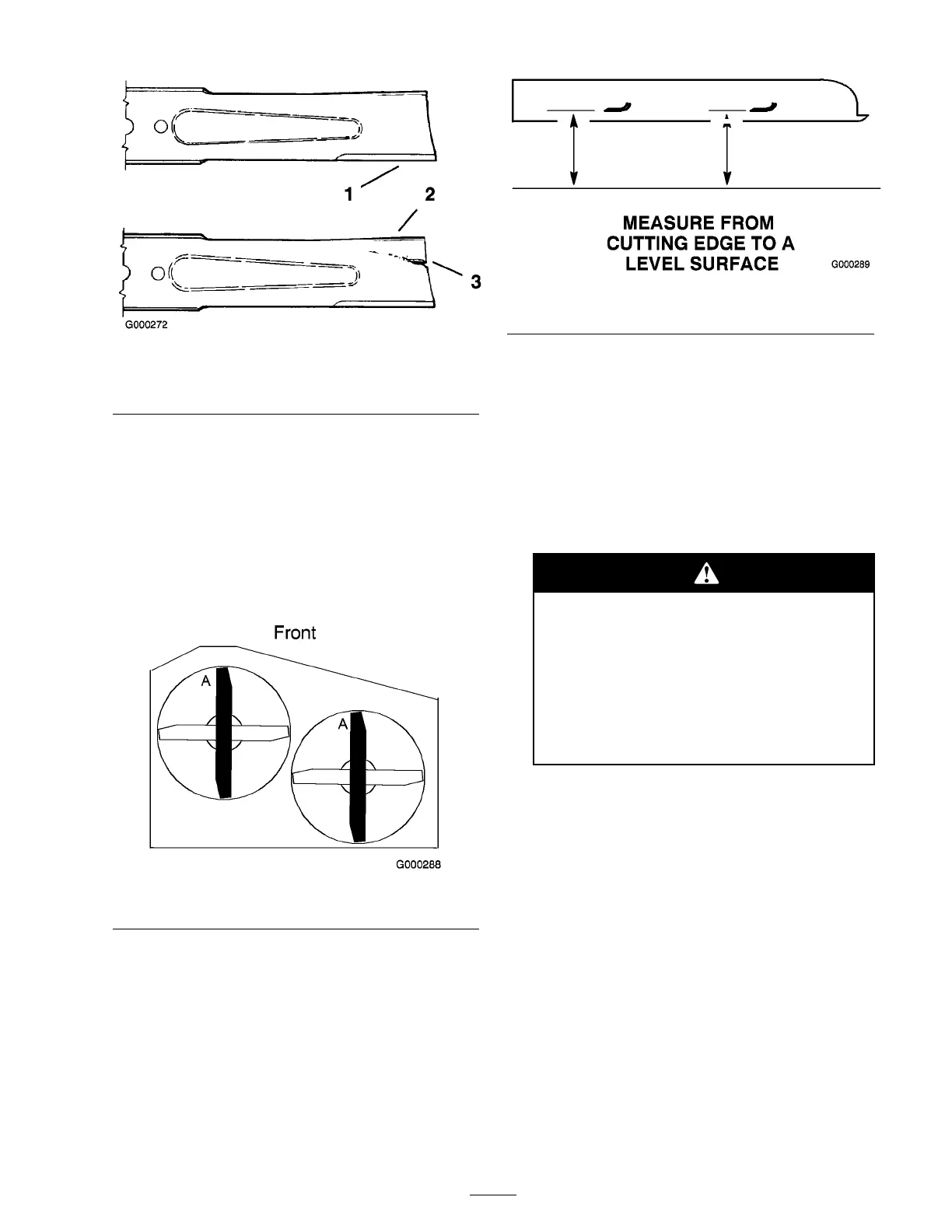

Figure 52
1. Cutting Edge 3. Wear/slot Forming
2. Curved Area
2. Inspect the blades , especially the cur v ed area
( Figure 52 ). If y ou notice any damag e , w ear , or
a slot for ming in this area (item 3 in Figure 52 ),
immediately install a new blade .
Checking for Bent Blades
1. R otate the blades until the ends face forw ard
and bac kw ard ( Figure 53 ).
Figure 53
2. Measure from a lev el surface to the cutting
edg e , position A, of the blades ( Figure 54 ).
Note this dimension.
Figure 54
3. R otate the opposite ends of the blades forw ard.
4. Measure from a lev el surface to the cutting
edg e of the blades at the same position as in
ste p 1 . T he difference betw een the dimensions
obtained in ste ps 1 and 2 m ust not ex ceed 1/8
inc h (3 mm). If this dimension ex ceeds 1/8
inc h (3 mm), the blade is bent and m ust be
re placed. R efer to R emo ving the Blades and
Installing the Blades .
A blade that is bent or dama ged could
br eak apar t and could seriousl y injur e or
kill y ou or bystander s.
• Al w ays r eplace bent or dama ged
blade with a new blade.
• Nev er file or cr eate shar p notches in
the edges or surf aces of blade.
Removing the Blades
Blades m ust be re placed if a solid object is hit,
if the blade is out of balance or is bent. T o
ensure optim um perfor mance and contin ued
safety confor mance of the mac hine , use g en uine
TOR O re placement blades . R e placement blades
made b y other man ufacturers ma y result in
non-confor mance with safety standards .
1. Hold the blade end using a rag or
thic kly-padded glo v e .
2. R emo v e the blade bolt, blade stiffener , w asher ,
and blade from the spindle shaft ( Figure 55 ).
