( Figure 69 ). R emo v e damag ed or w or n g rass
deflector .

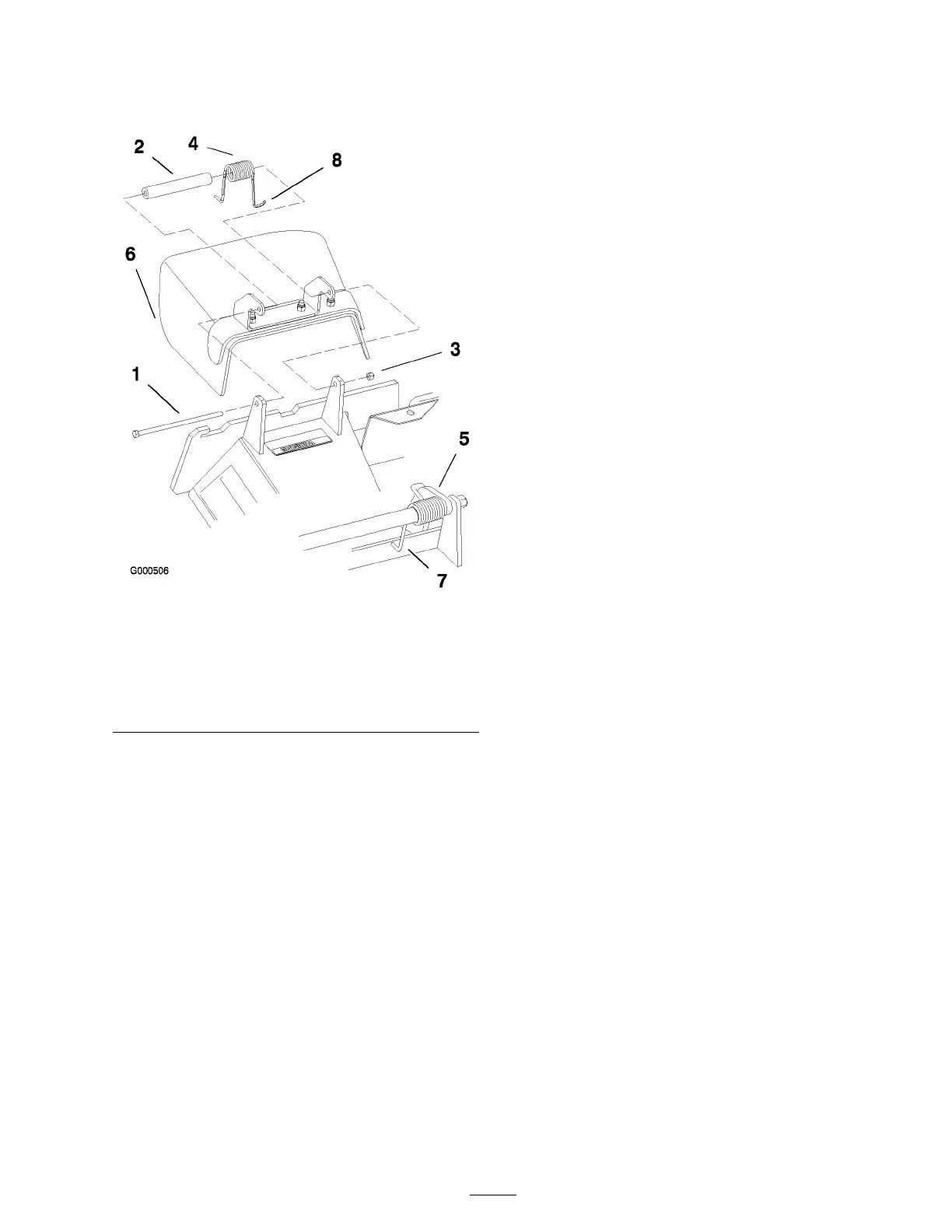

Figure 69
1. Bolt 5. Spring installed
2. Spacer
6. Grass Deector
3. Locknut 7. L end of spring, place
behind deck edge before
installing bolt
4. Spring
8. J hook end of spring
2. Place spacer and spring onto g rass deflector .
Place the L end of spring behind dec k edg e .
Note: Mak e sure the L end of spring is
installed behind dec k edg e before installing the
bolt as sho wn in Figure 69 .
3. Install bolt and n ut. Place the J hook end of
spring around g rass deflector ( Figure 69 ).
Important: T he g rass deflector must be
a ble to r otate. Lift the deflector up to the
full open position and ensur e that it r otates
into the full do wn position.
47
