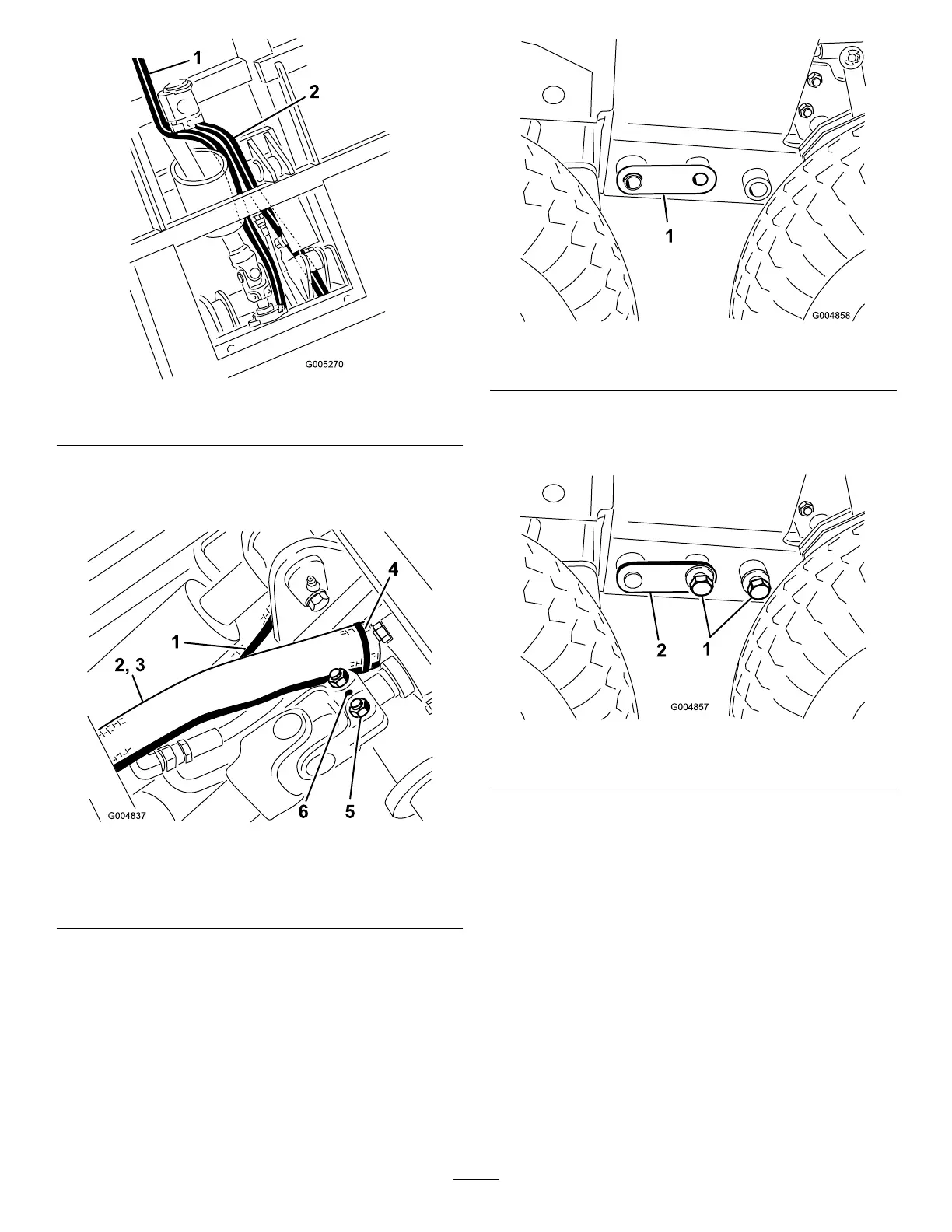

Figure19
1.Tankhose2.Pressurehose
6.Connectthedriveshafttothegearboxshaftinthe
winterframeandtorquethebolts(5/16inch)to20to
25N-m(175-225in-lb).Installtherollpin(Figure20).
Figure20
1.Pressurehose
4.Cabletie
2.Tankhose5.Bolts
3.Hosecover6.Rollpin
7.Adjusttheoorjacktolineupthe1.00inchholesinthe
frameandinstallacouplerpinoneachside(
Figure21).
Figure21
1.Couplerpin
8.Adjusttheoorjackorrockthecabwithyourhands
asrequiredtoinstallthebolts(3/4inch)oneachside
(Figure22).Torquetheboltsto359N-m(265ft-lb).
Figure22
1.3/4inchbolts2.Couplerpin
Note:Thereartireswillneedtoberemovedtotorque
therearbolts(3/4inch).Aftertorquingtheframe
bolts,installthereartiresandtorquelugnutsto88to
115N-m(65to85ft-lb).
9.Insertarubbermountontoeachcabmountattherear
mountinglocations(Figure23).
