Groundsmaster 4500 --D/4700--DHydraulic System Page 4 -- 78

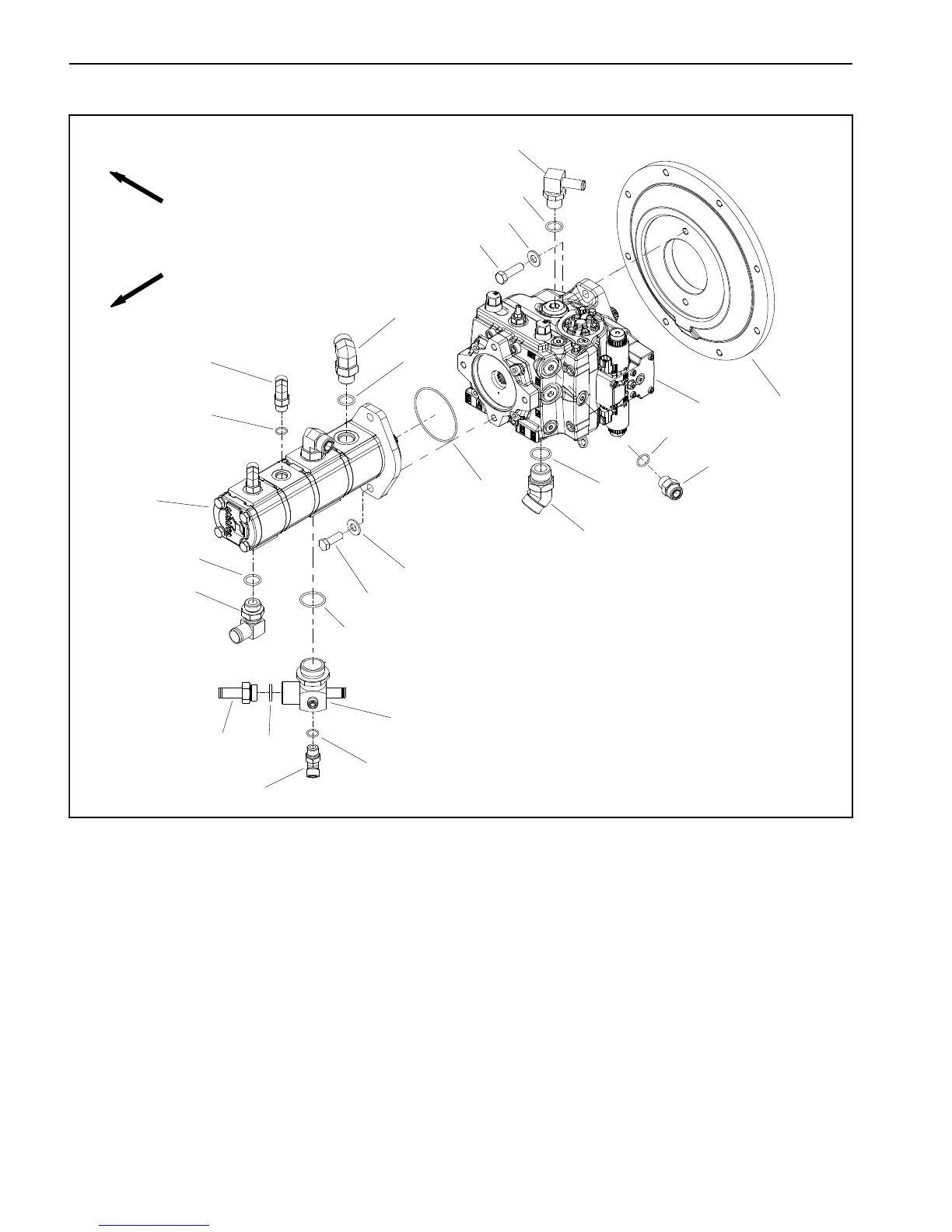

Gear Pump
1. Piston pump assembly
2. Flat washer (4 used)
3. Gear pump assembly
4. 90
o
hydraulic fitting (2 used)
5. 90
o
hydraulic fitting (2 used)
6. 90
o
hydraulic fitting
7. O--ring
8. Hydraulic tee fitting
9. 90
o
hydraulic fitting
10. 45
o
hydraulic fitting
11. Straight fitting
12. O--ring
13. Cap screw (2 used)
14. Cap screw (2 used)
15. O--ring
16. 45
o
hydraulic fitting (2 used)
17. O--ring
18. O--ring
19. Hydraulic adapter
20. O--ring
21. Engine flywheel plate
Figure 63
FRONT
RIGHT
7
17
18
2
13
10
1
14
6
8
9
5
3
4
11
15
2
16
19
7
7
7
12
12
20
21
