Toro 30881 Service Manual

Groundsmaster 4500 --D/4700--DCutting Decks Page 8 -- 8
Service and Repairs
CAUTION
Never install or work on the cutting decks or lift
arms with the engine running. Always stop en -
gine and remove key from ignition switch first.

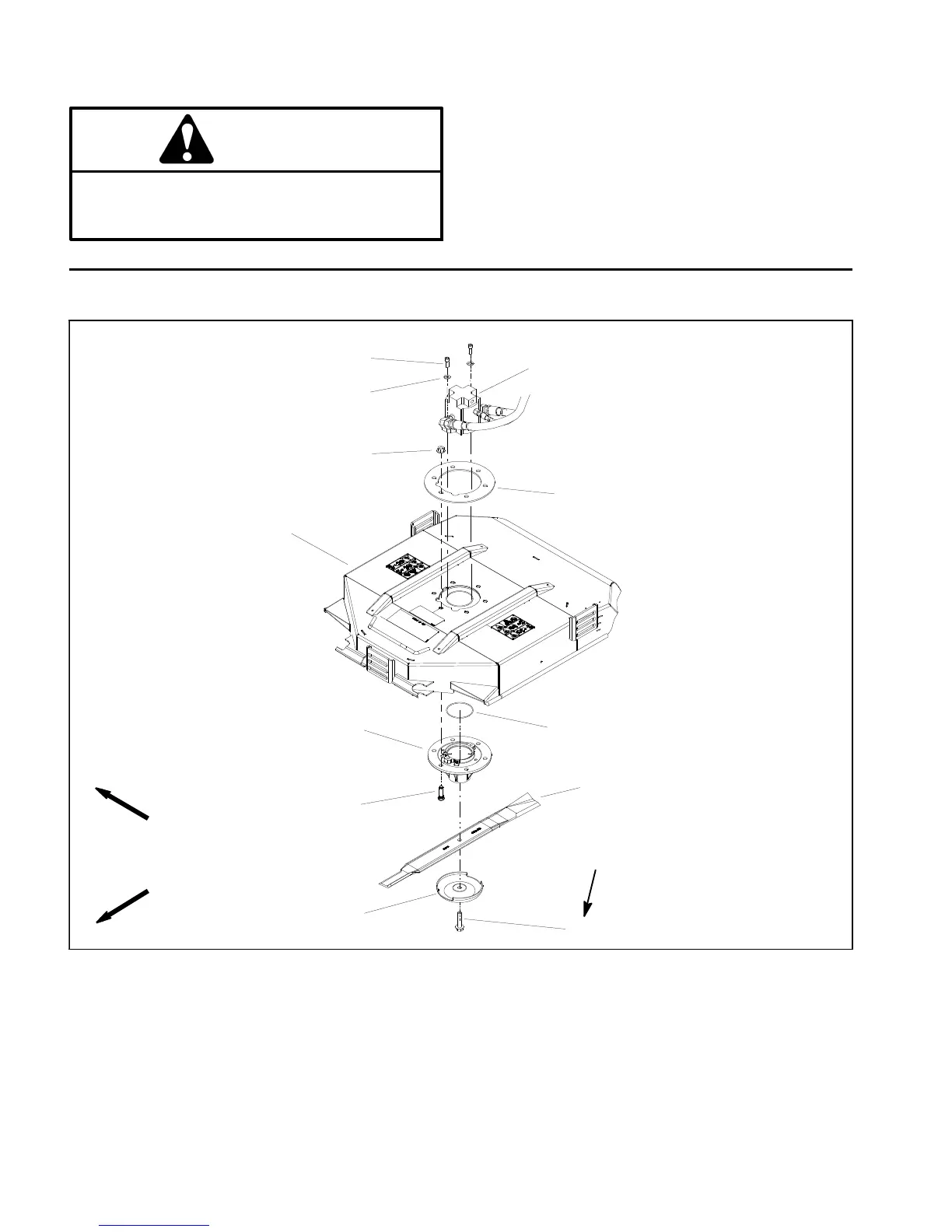

Blade Spindle Assembly
1. Flange nut (6 used)
2. Hydraulic deck motor
3. Spindle plate
4. Cutting deck
5. O--ring
6. Spindle assembly
7. Drive stud (6 used)
8. Cutting blade
9. Anti--scalp cup
10. Blade bolt
11. Socket head screw (2 used)
12. Flat washer (2 used)
Figure 4
FRONT
RIGHT
88 to 108 ft--lb
(120 to 146 N--m)
1
2
3
4
6
7
8
9
10
5
11
12
