Groundsmaster 4500 --D/4700--DPage 7 -- 22Chassis

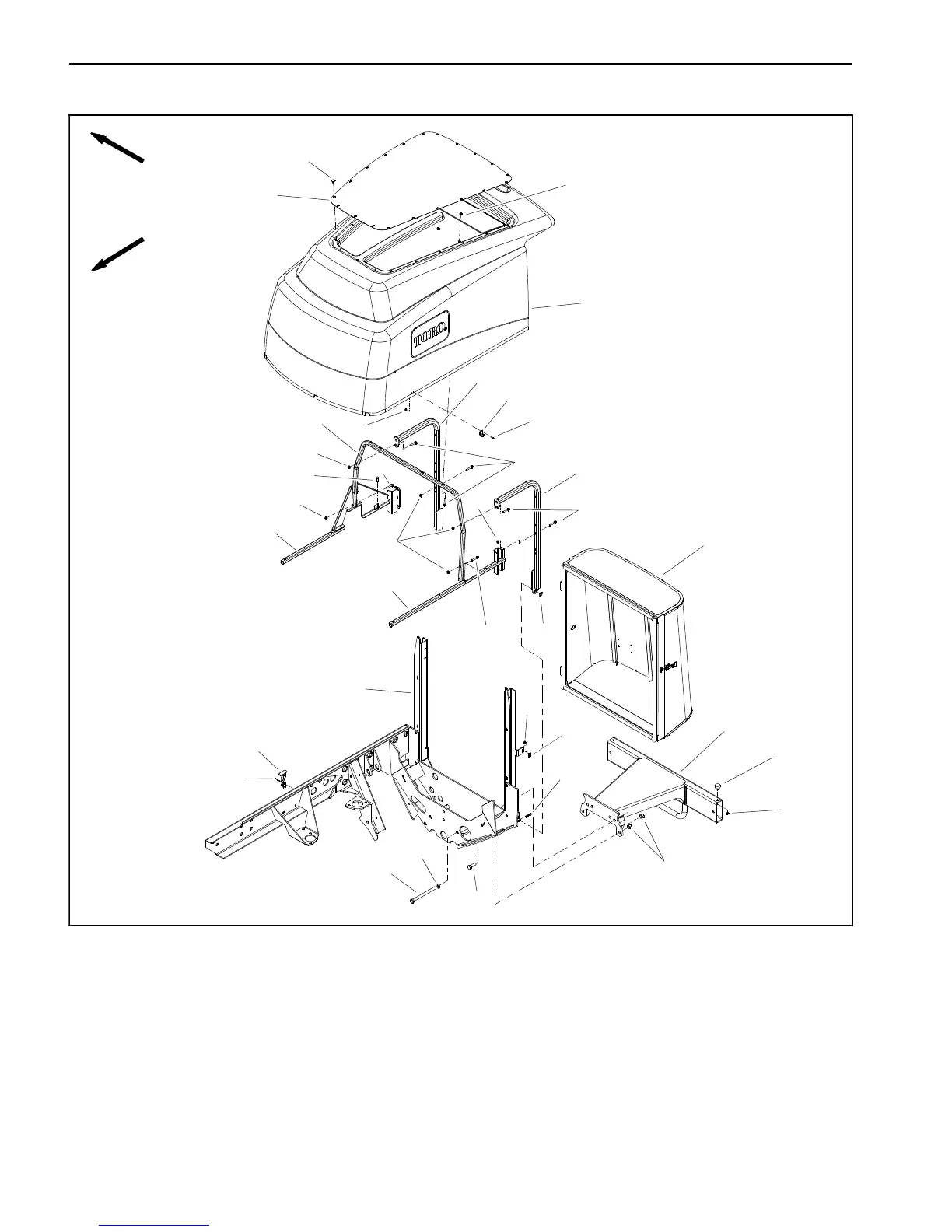

Hood
1. Screen
2. Latch keeper
3. Pop rivet (2 used)
4. Hood
5. Plastic plug (20 used)
6. Hood screen
7. Radiator mount
8. Flange head screw
9. Hair pin (2 used)
10. Rear bumper
11. Washer (2 used)
12. Rubber bumper (2 used)
13. Flange nut (2 used)
14. Pop rivet (4 used)
15. Flex draw latch (2 used)
16. Flat washer (2 used)
17. Lock nut (4 used)
18. Cap screw (2 used)
19. Cap screw (2 used)
20. RH hood frame tube
21. LH hood frame tube
22. RH hood frame tube
23. LH hood frame tube
24. Hood frame tube
25. Flange head screw (25 used)
26. Flange nut (26 used)
27. Latch keeper (2 used)
28. Pop rivet (4 used)
29. Back washer (4 used)
Figure 22
FRONT
RIGHT
1
2
5
6
9
10
12
13
16
17
18
19
20
21
23
26
14
15
11
3
26
26
26
26
25
25
25
25
22
24
28
27
29
8
4
7
