Groundsmaster 4500 --D/4700--DHydraulic System Page 4 -- 118

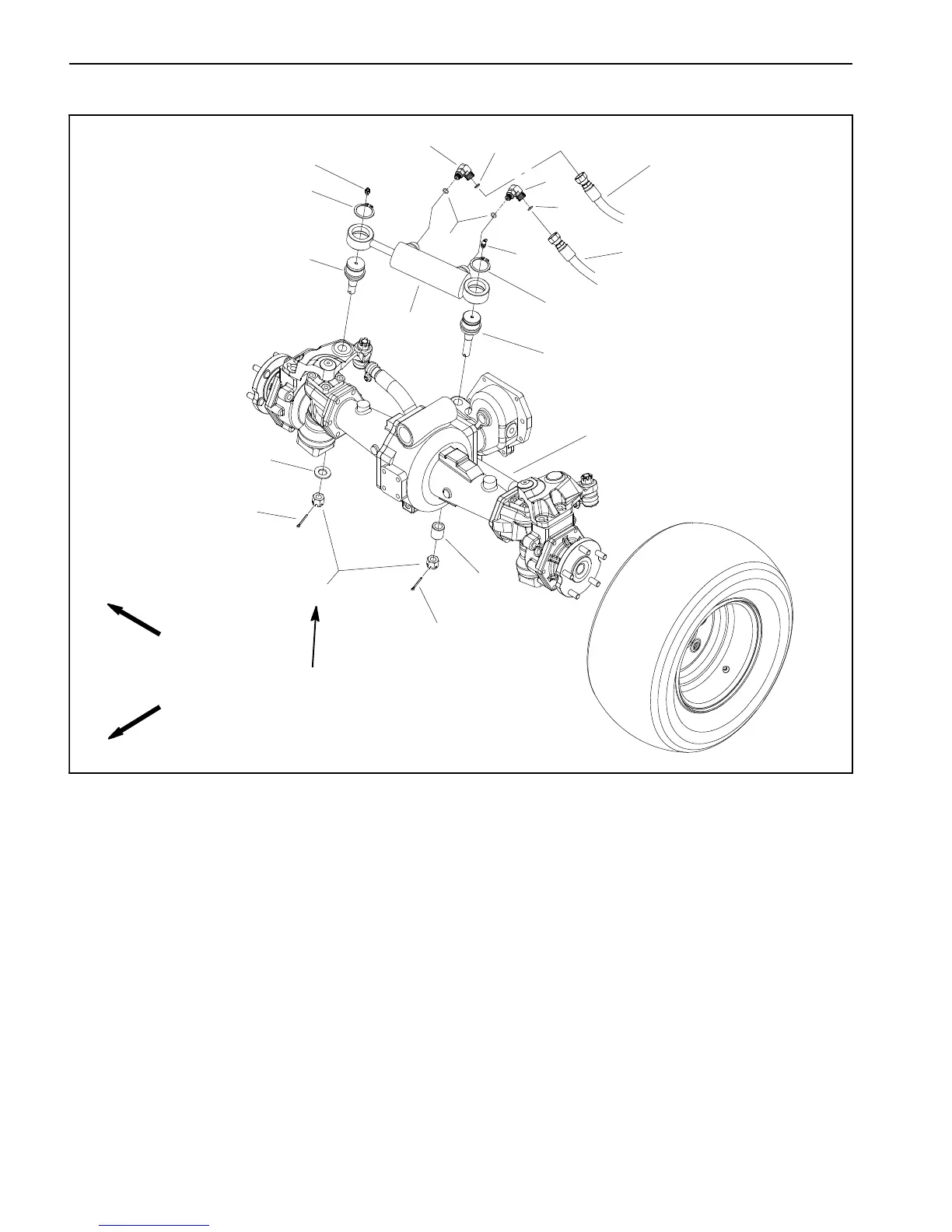

Steering Cylinder
1. Steering cylinder
2. Ball joint
3. Ball joint
4. Retaining ring
5. Grease fitting
6. Grease fitting
7. 90
o
hydraulic fitting
8. O--ring
9. O--ring
10. Drive axle assembly
11. Ball joint spacer
12. Axle washer
13. Slotted hex nut
14. Cotter pin
15. Hydraulic hose
16. Hydraulic hose
Figure 101
6
4
1
2
10
5
4
3
12
14
11
13
7
8
9
9
100 to 125 ft--lb
(136 to 169 N--m)
FRONT
RIGHT
7
14
15
16
