Groundsmaster 4500 --D/4700--DHydraulic S ystem Page 4 -- 108

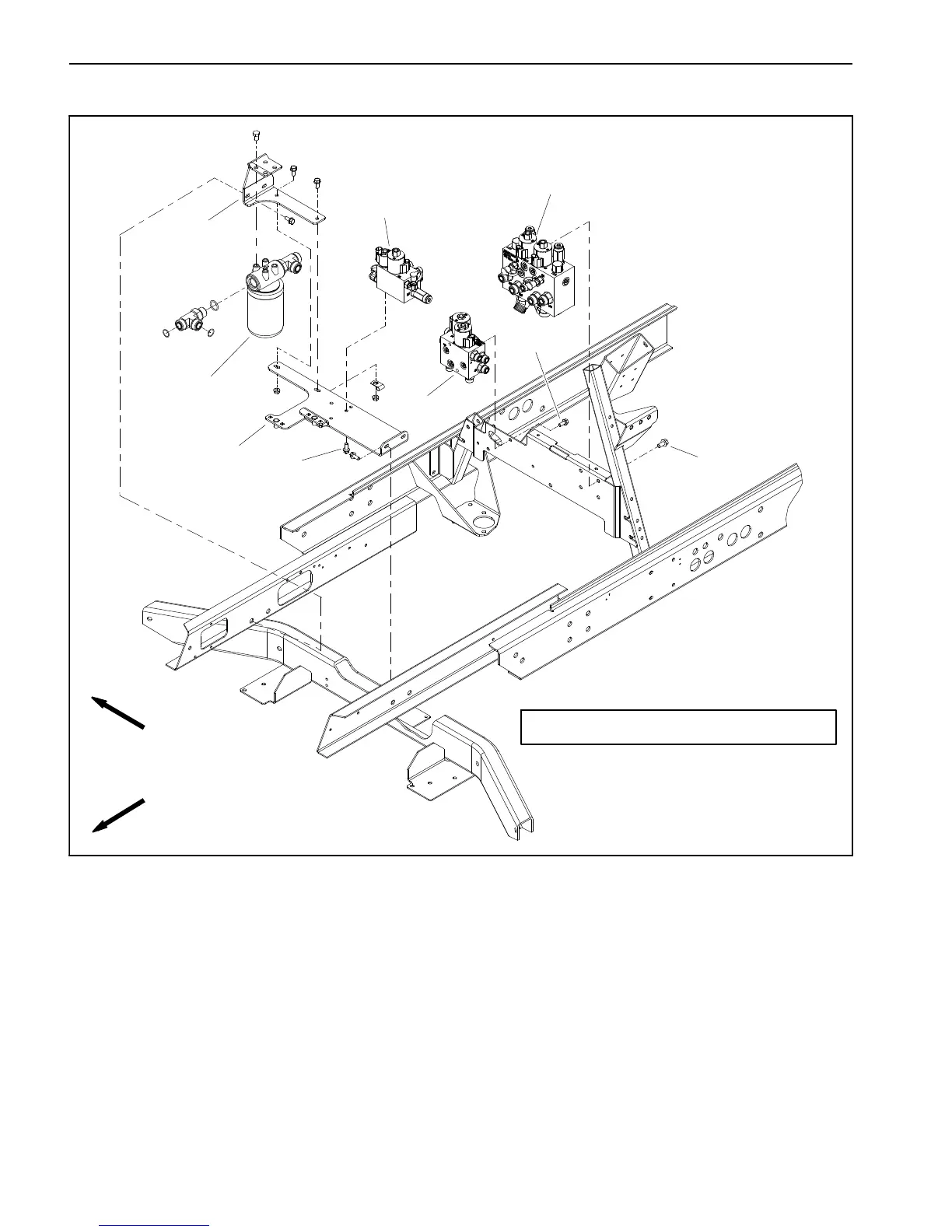

Deck Control Manifold
1. Deck control manifold
2. Filter mount bracket
3. Flange head screw (2 used)
4. Hydraulic oil filter assembly
5. Valve mount bracket
6. Flange head screw (2 used)
7. Lift control manifold
8. Flange head screw (2 used)
9. Fan drive manifold
Figure 90
FRONT
RIGHT
GROUNDSMASTER 4500--D SHOWN
1
7
8
4
6
3
2
5
9
NOTE: The deck control manifolds used on Grounds-
master 4500--D and 4700--D are different but they
mount to the machine in the same location. The control
manifolds used on the Groundsmaster 4500--D are
shown in Figure 90.
