Toro 30881 Service Manual

Groundsmaster 4500 --D/4700--DPage 3 -- 22Yanmar Diesel Engine
Exhaust System (Models 30881 and 30882)

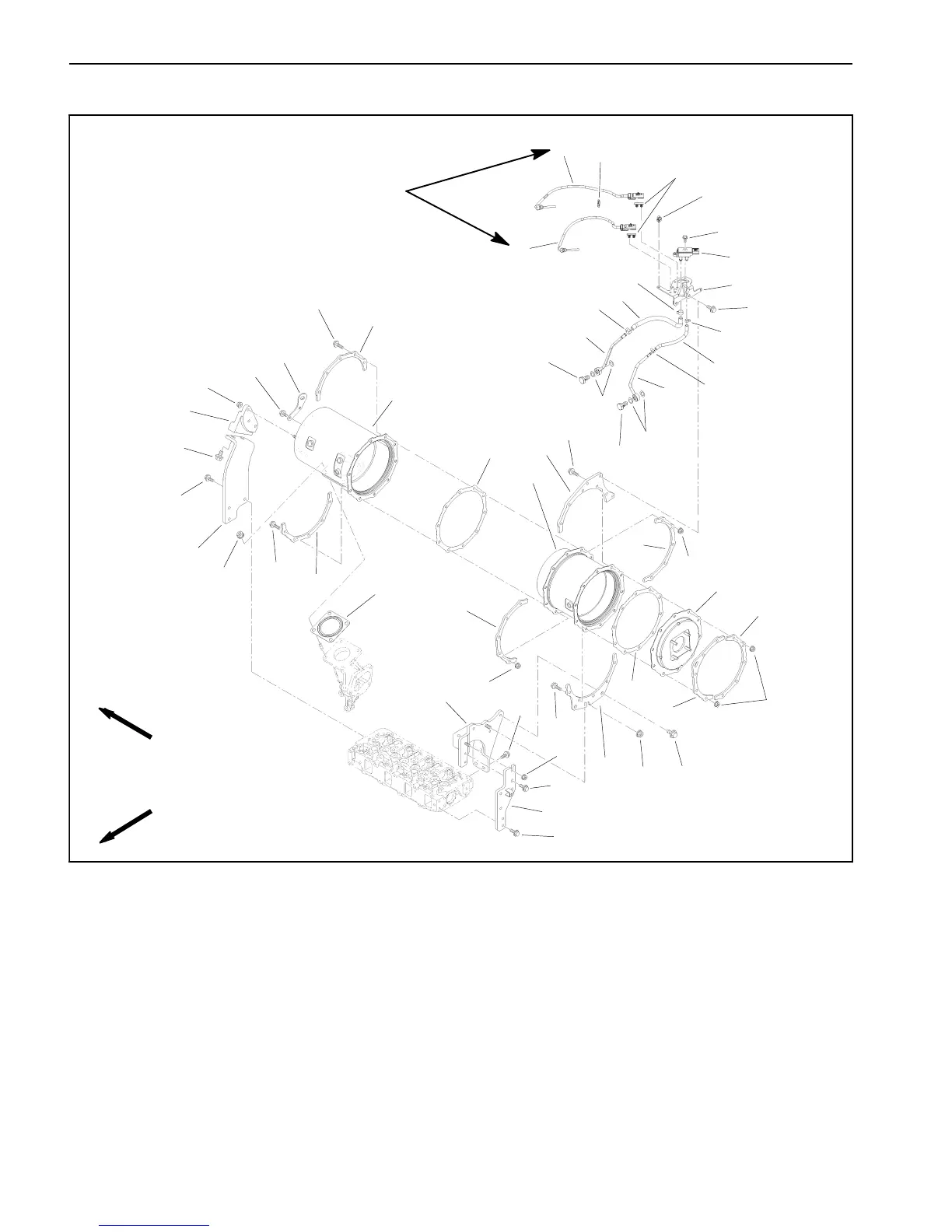

Figure 19
1. Gasket
2. Exhaust assembly stay
3. Exhaust assembly stay
4. Exhaust assembly stay
5. Exhaust assembly stay
6. Nut
7. DOC temp sensor (inlet)
8. DOC temp sensor (outlet)
9. Nut (4 used)
10. DOC assembly
11. Nut (3 used)
12. DPF assembly
13. Nut
14. Outlet flange
15. DPF gasket (2 used)
16. Bolt (20 used)
17. DPF lifter
18. DPF stiffener (5 used)
19. DPF stiffener
20. DPF stiffener
21. DPF stiffener
22. Bolt (2 used)
23. Nut (20 used)
24. Bolt (2 used)
25. Pipe joint bolt (2 used)
26. Exhaust pressure pipe (DPF inlet)
27. Sensor gasket (4 used)
28. Exhaust pressure pipe (DPF outlet)
29. Exhaust hose
30. Bolt (2 used)
31. Hose clip (2 used)
32. Hose
33. Bolt (3 used)
34. Hose clip (2 used)
35. Pressure sensor
36. Sensor bracket
37. Bolt (2 used)
38. Bolt (2 used)
39. Clip band
40. Band
41. Connector clip (2 used)
42. Bolt (2 used)
43. Bolt (2 used)
44. Bolt (2 used)
FRONT
RIGHT
19 to 29 ft--lb
(25to40N--m)
2
3
8
10
13
1
5
7
12
14
15
16
17
18
19
21
22
23
25
27
28
29
31
32
34
35
37
38
39
40
31
34
41
27
25
18
18
18
16
6
24
23
18
15
43
42
44
16
9
4
33
16
11
30
20
23
26
36
