Groundsmaster 4500 --D/4700--D Cutting DecksPage 8 -- 5

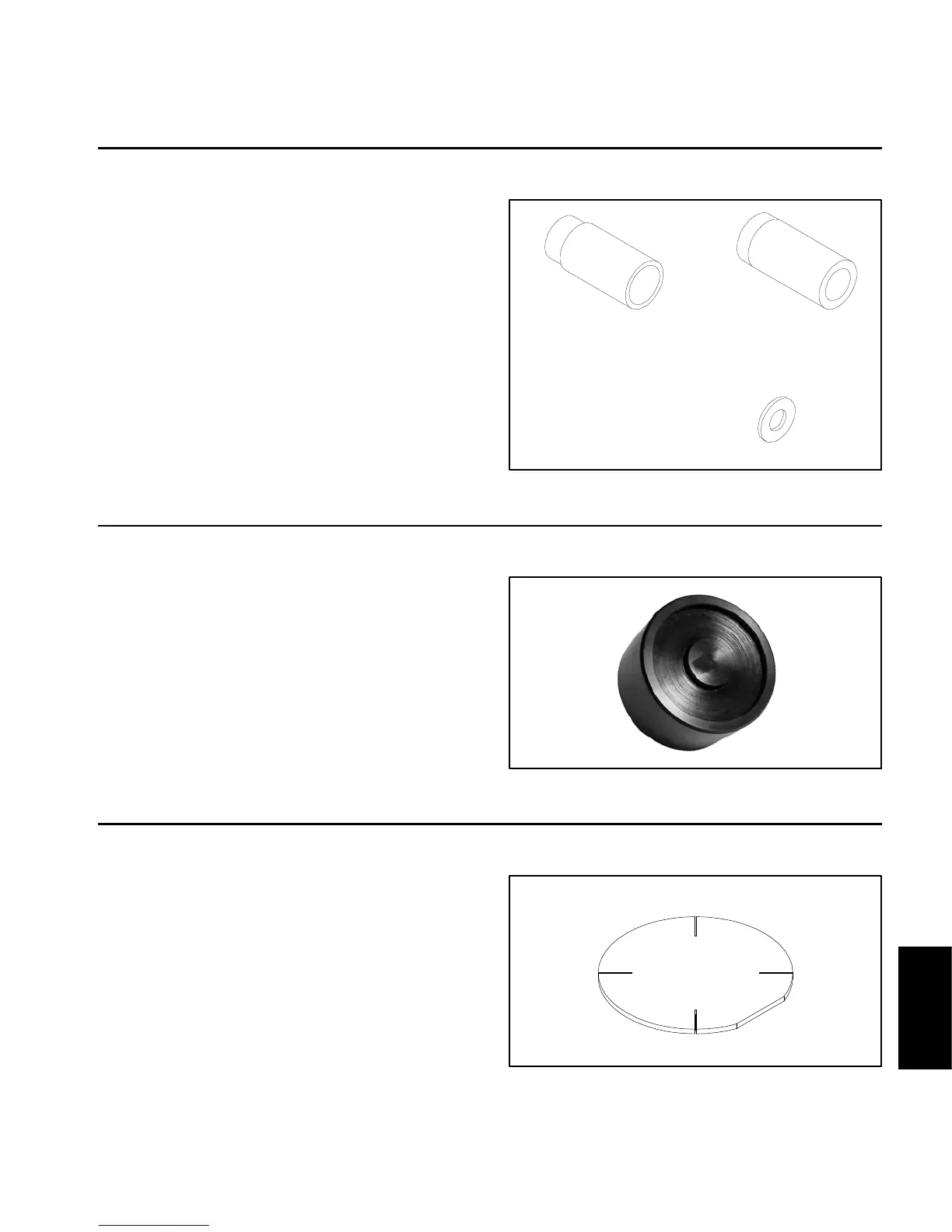

Special Tools
Order special tools from your Toro Distributor.
Rear Roller Bearing and Seal Installation Tools
These tools are used to assemble the cutting deck rear
roller.
Toro Part Numbers:
Inner Seal Tool 115--0852
Bearing/Outer Seal Tool 115--0853
Bearing Installation Washer 107--8133
Figure 1
Inner Seal
Tool
Bearing/Outer Seal
Bearing Installation
Washer
Tool
Front Roller Bearing Installation Tool
The front roller bearing installation tool should be used
when installing bearings into the front rollers. This tool
presses equally against both the inner and outer bearing
racestoensurethatnosideloadisappliedtothebear-
ings during installation into the front rollers.
Toro Part Number: TOR6018
Figure 2
Spindle Plug
The spindle plug can be u sed to prevent contaminant
entry into the cutting deck spindle assembly when the
hydraulic motor is removed from the spindle.
Toro Part Number: 94--2703
Figure 3
