Toro 30881 Service Manual

Groundsmaster 4500 --D/4700--DPage 7 -- 18Chassis

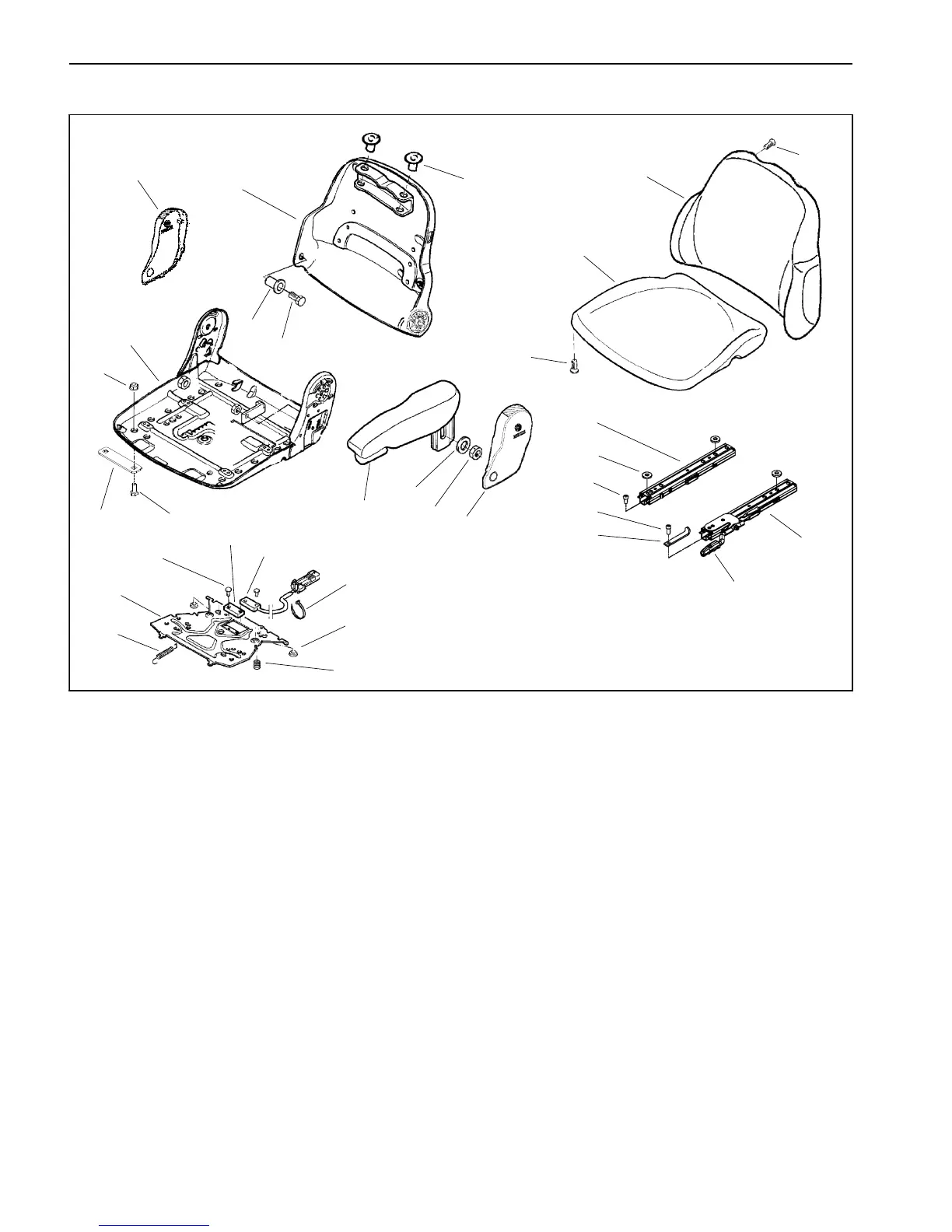

Operator Seat Service
1. Backrest cushion
2. Seat cushion
3. LH armrest cover
4. LH armrest
5. Bushing (2 used)
6. Backrest
7. Plug (2 used)
8. Cable tie (3 used)
9. LH adjustment rail
10. Bumper (2 used)
11. Washer
12. Cap screw (2 used)
13. Seat
14. Nut
15. Spring (2 used)
16. Magnet
17. Seat switch
18. Rivet (4 used)
19. Mounting plate
20. Return spring
21. Torx screw (5 used)
22. RH adjustment rail
23. Rail stop
24. Torx screw
25. Torx screw (3 used)
26. Washer (3 used)
27. Handle
28. RH armrest cover
29. Nut
30. Cap screw
31. Support bracket
Figure 19
8
10
6
5
7
4
3
2
1
11
14
12
13
15
16
17
18
19
20
21
21
28
9
23
24
25
26
22
27
29
3031
