Toro 74264TE - Adjusting the Flow Baffle; Positioning the Flow Baffle

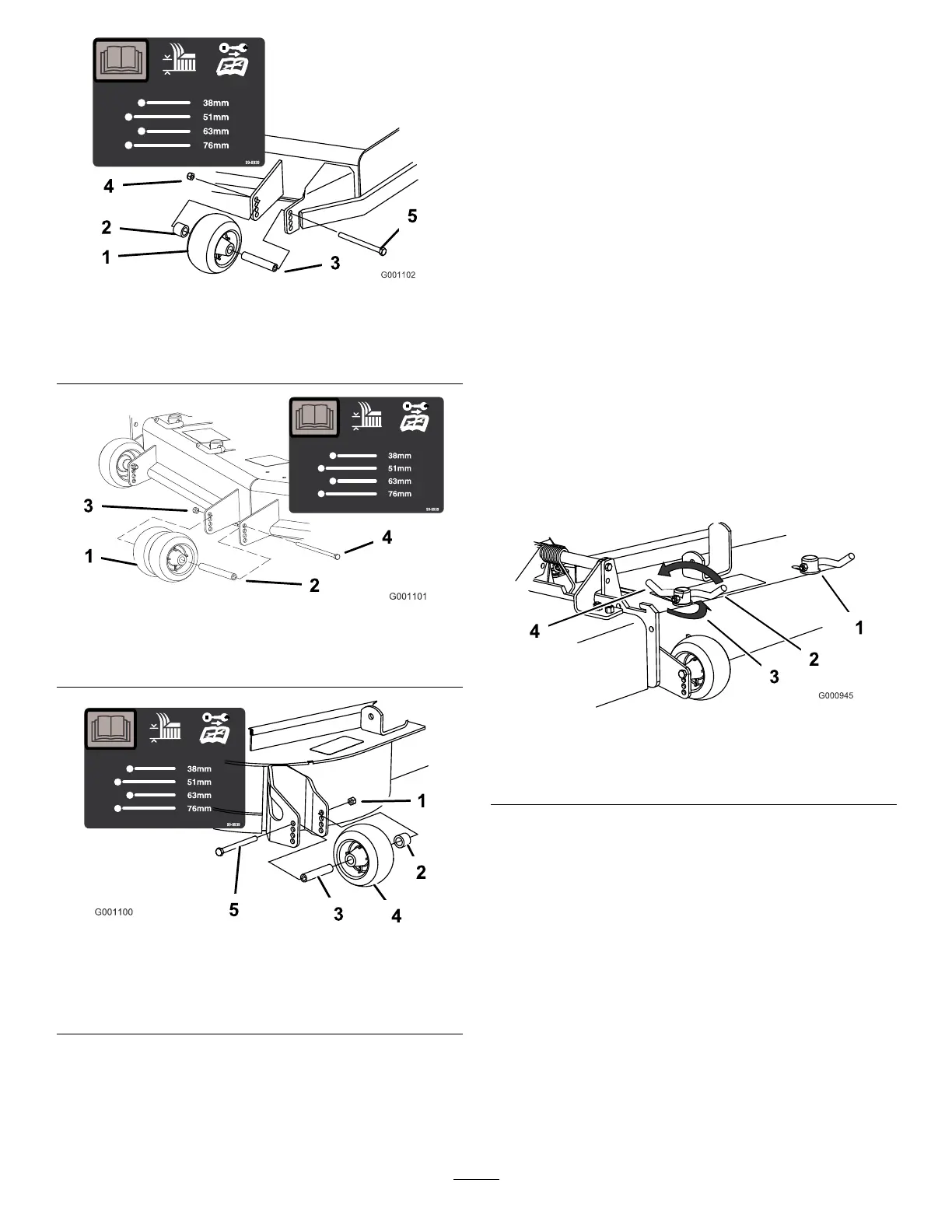

Figure17
1.Anti-scalproller4.FlangeNut
2.Spacer
5.Bolt
3.Bushing
Figure18
1.Anti-scalproller3.FlangeNut
2.Bushing4.Bolt
Figure19
1.Anti-scalproller4.FlangeNut
2.Spacer
5.Bolt
3.Bushing
AdjustingtheFlowBafe
Themowerdischargeowcanbeadjustedfordifferent
typesofmowingconditions.Positionthecamlocks
andbafetogivethebestqualityofcut.
1.DisengagethePTO,movethemotioncontrol
leverstotheneutrallockedpositionandsetthe
parkingbrake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Toadjustthecamlocks,swingtheleverupto
loosenthecamlock(Figure20).
4.Adjustthebafeandcamlocksintheslotstothe
desireddischargeow .
5.Swingtheleverbackovertotightenthebafeand
camlocks(Figure20).
6.Ifthecamsdonotlockthebafeintoplaceoritis
tootight,loosentheleverandthenrotatethecam
lock.Adjustthecamlockuntilthedesiredlocking
pressureisachieved.
Figure20
1.Camlock
3.Rotatecamtoincreaseor
decreaselockingpressure
2.Lever
4.Slot
PositioningtheFlowBafe
Thefollowingguresareonlyrecommendationsfor
use.Adjustmentswillvarybygrasstype,moisture
content,andheightofgrass.
Note:Iftheenginepowerdrawsdownandthemower
groundspeedisthesame,openupthebafe.
PositionA
Thisisthefullrearposition.Thesuggesteduseforthis
positionisafollows(Figure21).
•Useforshort,lightgrassmowingconditions.
•Useindryconditions.
23
