Toro 74264TE - Brake Maintenance; Adjusting the Parking Brake

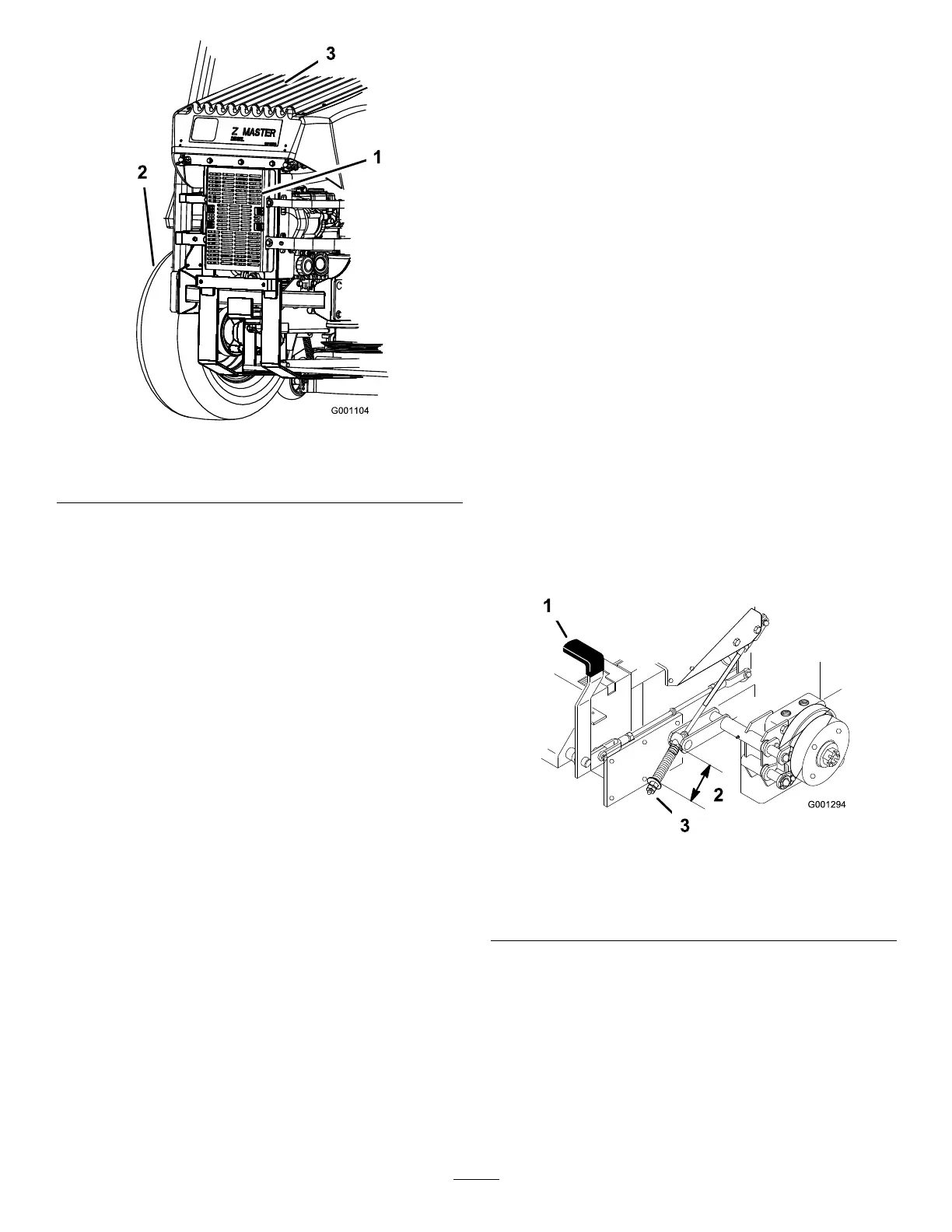

Figure56
1.Hydraulicoilcooler3.Radiatorscreen
2.Leftreartire
ChangingtheEngineCoolant
ServiceInterval:Yearly
HaveanAuthorizedServiceDealerchangetheengine
coolanteveryyear.
BrakeMaintenance
AdjustingtheParkingBrake
ServiceInterval:Every25hours
Every200hours
1.Engagetheparkingbrake,leverup.
2.Measurethelengthofthespring.Measurement
shouldbe2-1/2inch(64mm)betweenthewashers
(Figure57).
3.Ifadjustmentisnecessary,releasetheparkingbrake,
loosenthejamnutbelowthespringandadjustthe
nutdirectlybelowthespring(Figure57).Turnthe
nutuntilthecorrectmeasurementisobtained.Turn
thenutclockwisetoshortenspringlengthandturn
counter-clockwisetolengthenthespring.
4.Tightenthetwonutstogether.
5.Engagetheparkingbrake,leverup.Checkthe
measurementofthespringagain.
6.Ifadjustmentisnecessary,repeattheprocedures
above.
7.Repeatontheoppositesideofmachine.
Figure57
1.Brakeleverinengaged
position
3.Adjustingnutandjamnut
2.Spring2–1/2inch(64mm)
44
