Toro 74264TE - Drive System Maintenance; Adjusting the Tracking

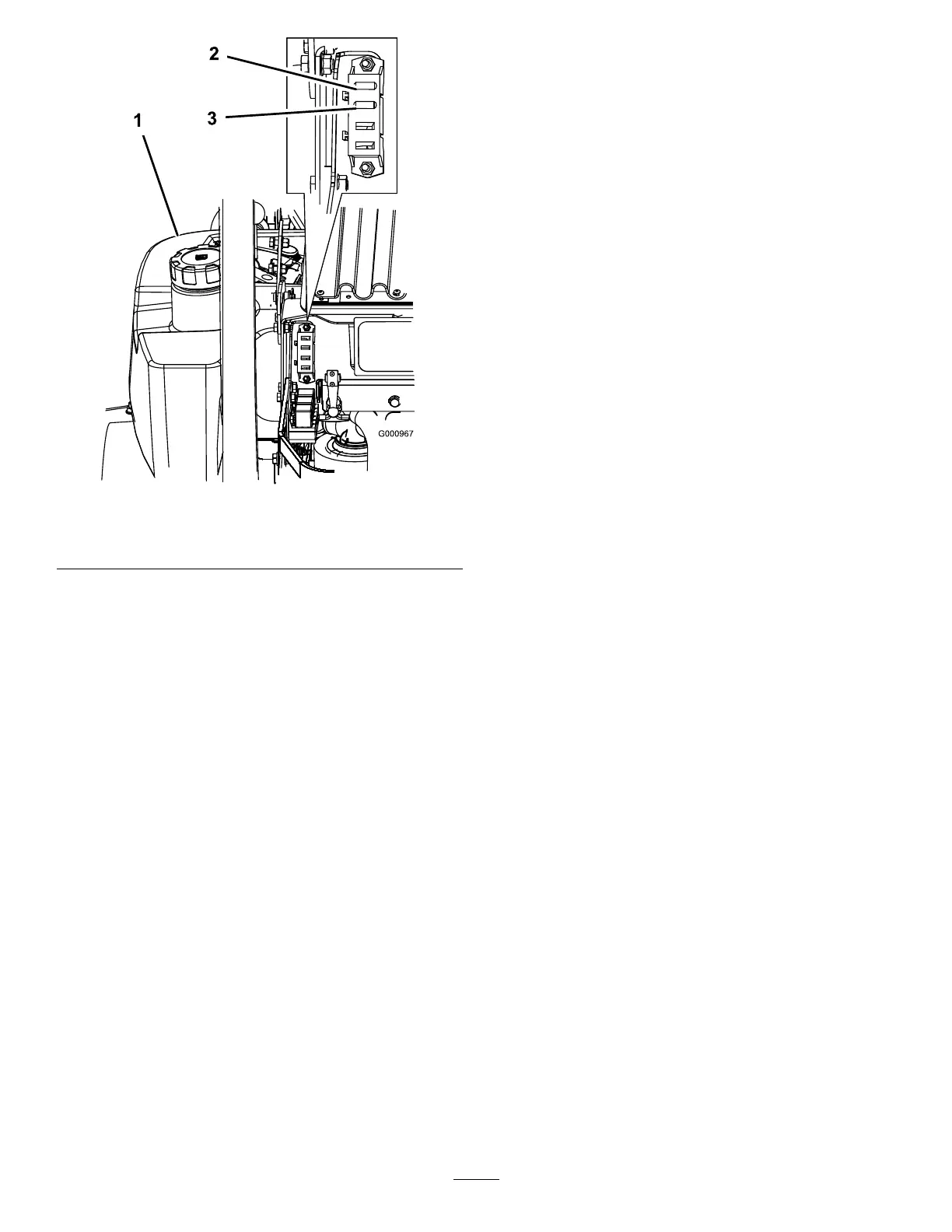

Figure46
1.Leftsidefueltank3.Radiatorfan-40amp
2.Ignition-30amp
DriveSystem
Maintenance
AdjustingtheTracking
Themachinehasaknobforadjustingthetracking
locatedundertheseat.
Important:Adjustthehandleneutralandhydraulic
pumpneutralbeforeadjustingthetracking.Refer
toAdjustingtheHandleNeutralinControlsSystem
Maintenance,page48andAdjustingtheHydraulic
PumpNeutralinHydraulicSystemMaintenance,
page49.
1.Pushbothcontrolleversforwardthesamedistance.
2.Checkifthemachinepullstooneside.Ifitdoes,
stopthemachineandsettheparkingbrake.
3.Unlatchtheseatandtilttheseatforwardtoaccess
thetrackingknob.
Note:Determinetheleftandrightsidesofthe
machinefromthenormaloperatingposition.
4.Tomakethemachinegoright,turntheknobtowards
therightsideofthemachine.RefertoFigure47.
5.Tomakethemachinegoleft,turntheknobtowards
theleftsideofthemachine.RefertoFigure47.
6.Repeatadjustmentuntilthetrackingiscorrect.
