Toro 74264TE - Replacing the Pump Drive Belt; Replacing and Tensioning the Alternator Belt

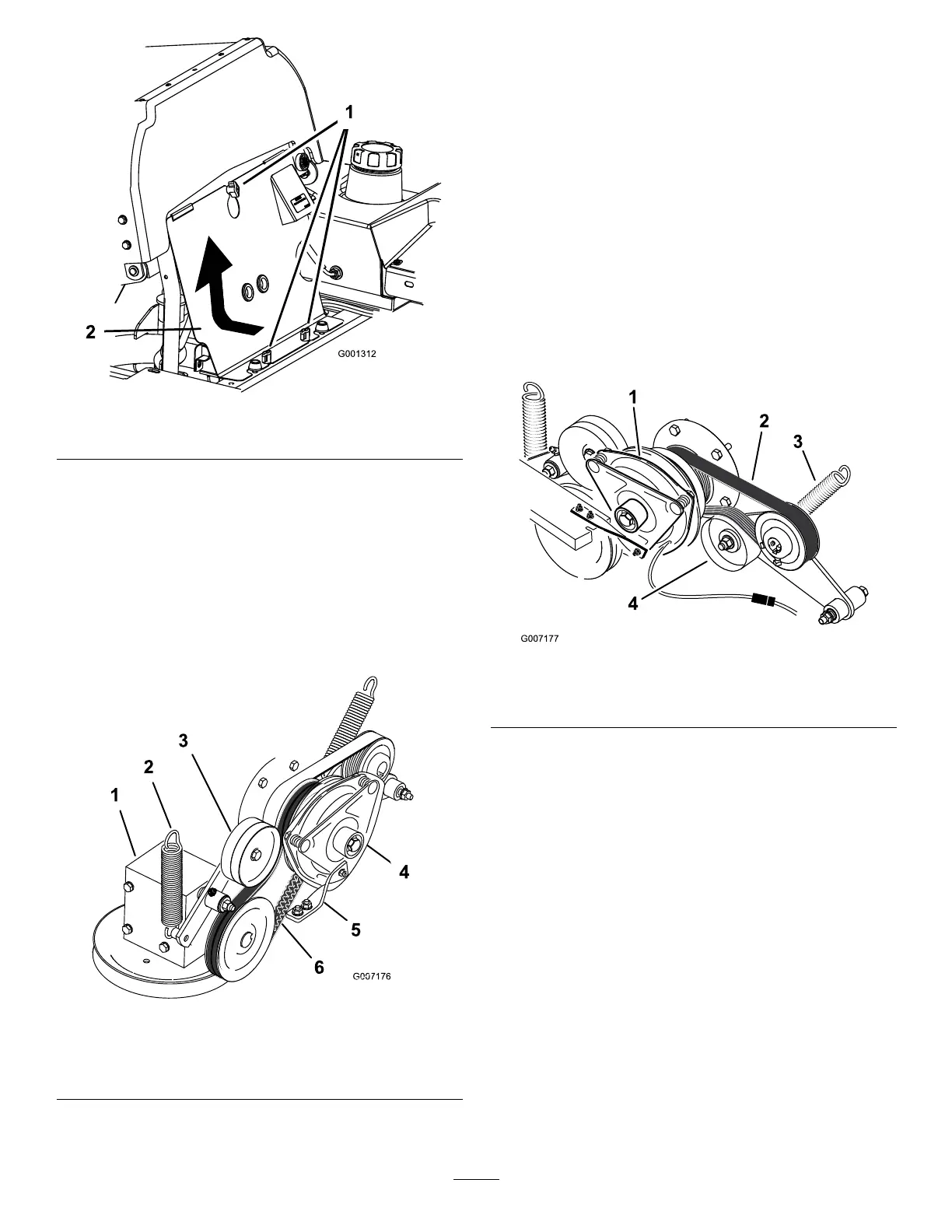

Figure60
1.Knob2.Frontenginepanel
4.Removethespringfromtheidlerarm(Figure61).
5.Removetheclutchstopbracket.
6.RemovetheoldPTOdrivebelt.
7.InstallthePTOdrivebeltaroundtheclutchpulley
andthegearboxpulley(Figure61).
8.Intalltherubberclutchstop.
9.Installthespringtotheidlerarm(Figure61).
Figure61
1.Gearbox4.Clutch
2.Spring
5.Rubberclutchstop
3.Springloadedidlerpulley6.PTODrivebelt
ReplacingthePumpDriveBelt
ServiceInterval:Every50hours—Checkthepump
drivebelt.
Note:RemovethePTOdrivebeltrstifthepump
drivebeltneedstobereplaced.
1.Tilttheseatforwardandremovethefrontengine
panel.
2.RemovethePTOdrivebelt.
3.Removethespringfromtheidlerarm(Figure62).
4.Installthenewbeltaroundtheengineandhydro
pumppulley(Figure62).
5.InstallthePTOdrivebelt.
6.Installthespringtotheidlerarm(Figure62).
Figure62
1.Clutch3.Spring
2.Pumpdrivebelt
4.Springloadedidlerpulley
ReplacingandTensioningthe
AlternatorBelt
ReplacingtheAlternatorBelt
ServiceInterval:Every50hours—Checkthealternator
belt.
1.DisengagethePTO,movethemotioncontrollevers
totheneutrallockedpositionandsettheparking
brake.
2.Stoptheengine,removethekey,andwaitforall
movingpartstostopbeforeleavingtheoperating
position.
3.Removethe4boltsholdingtheoilcoolershieldto
therearframe(Figure63).
4.Removethe3boltsholdingtheenginestrapstothe
sideofthemachine(Figure63).
46
